Jaysis! What did they attach my ball-top with? Uber-glue?

[Singh31]

:u: I don’t have steady hands either, but you should be ok! Only way to know for sure is to try.

Yeah I will look into it, it would just be a matter of getting all the parts, in the meantime I will probably call Mad Catz to see how much it would cost me for them to repair it outside of the warranty as well.

[System_1]

Anyone have any tips to remove a a joystick from a stuck mounting plate? I can’t remove the joystick from the mounting plate since there is some serious glue holding the screws down.

I had this same problem earlier. IN the end, the solution I opted for was just to buy a new mounting plate and use the stock stick in the meantime. Having had a look, there seems to be no damage to the PCB, so it seems my stick has beat the odds.

If you’ve knackered the screws in your mounting plate like I did*, one thing that did occur to me was you could try drilling them out. Just get the stick out and disassemble it by taking the gate and PCB off. You could be able to see clear though to the botton of the screws, but it’s not an option for me since I don’t own a drill.

Alternatively, you can try finding an alternative way to mount your new stick in the case.

• Just the one screw got stripped! How harsh! Literally one screw between me and mounting my shiny new Sanwa stick!

[System_1]

I modded my SE with Sanwa parts, and for a few days everything was great. However, recently 2 of the buttons I put in sometimes stop working while I’m playing (Both trigger buttons), which is a problem when playing online. The buttons begin to work again when I remove the stick from the 360 and plug it back in, but again after a period of time the issue happens again. I looked at the QDs for both buttons, reinstalling them again, but that did not solve the issue.

Did you check the QD’s plugged into the terminal strip at the other end from the button QD? I accidentally managed to pull one of those out,

[Singh31]

No, but I will look into that, I don’t think I ever touched those, but who knows.

[System_1]

I had this same problem earlier. IN the end, the solution I opted for was just to buy a new mounting plate and use the stock stick in the meantime. Having had a look, there seems to be no damage to the PCB, so it seems my stick has beat the odds.

If you’ve knackered the screws in your mounting plate like I did*, one thing that did occur to me was you could try drilling them out. Just get the stick out and disassemble it by taking the gate and PCB off. You could be able to see clear though to the botton of the screws, but it’s not an option for me since I don’t own a drill.

Alternatively, you can try finding an alternative way to mount your new stick in the case.

• Just the one screw got stripped! How harsh! Literally one screw between me and mounting my shiny new Sanwa stick!

I had the same problem. I just drilled the damn screw out, went to the local hobby shop and picked up some QUALITY screws that don’t strip.

To simgh13: are you using the stock stick?

[Singh31]

Nope, using all Sanwa parts, which makes this rather depressing.

[System_1]

No, but I will look into that, I don’t think I ever touched those, but who knows.

You may have, accidently. There’s a whole heap of cable spaghetti that is located right in and around the hard kick button on my stick, and presumably the other SE’s, too, I only noticed casually when I moved onto replacing the black buttons that one of the (green, I think) cables had come loose at the terminal.

[Singh31]

It’s a possibility, I will check that when I go home, although it does not explain why the buttons work again when I plug the stick back into the 360.

[hbreakz]

will seimitsu PS-14-D-N fit?

[airfrancisco]

will seimitsu PS-14-D-N fit?

I think PS-14-DN is 24mm and SE uses 30mm buttons so I don’t think it’ll fit. What you probably looking for is PS-14-KN or PS-14-GN. Basically look for 30mm buttons

[System_1]

It’s a possibility, I will check that when I go home, although it does not explain why the buttons work again when I plug the stick back into the 360.

It’s a very weird problem, I will admit. Hopefully this weird solution will work

[hbreakz]

I think PS-14-DN is 24mm and SE uses 30mm buttons so I don’t think it’ll fit. What you probably looking for is PS-14-KN or PS-14-GN. Basically look for 30mm buttons

it is the 30 mm

[System_1]

Hmm I tried searching the thread, but was unable to find anything related to the issue I’m having with my modded SE.

I modded my SE with Sanwa parts, and for a few days everything was great. However, recently 2 of the buttons I put in sometimes stop working while I’m playing (Both trigger buttons), which is a problem when playing online. The buttons begin to work again when I remove the stick from the 360 and plug it back in, but again after a period of time the issue happens again. I looked at the QDs for both buttons, reinstalling them again, but that did not solve the issue.

Is there something else that I could have done wrong that I’m missing or could my PCB possibly be broken?

If this question has been answered in this thread I apologize ahead of time.

Hmm… thats interesting because i have that same problem, but with the stock buttons on. It happend a few days ago nothing since. Please follow up on this and see if its just loose cabling and hopefully not the PCB or w/e… If its the latter, then i might just have to send it back before i Mod it

[JedahZero]

I think PS-14-DN is 24mm and SE uses 30mm buttons so I don’t think it’ll fit. What you probably looking for is PS-14-KN or PS-14-GN. Basically look for 30mm buttons

Just a note while we’re on the subject, I recently dropped some PS-14-G’s into my SE (I’d have a picture but my digicam died :sad: ).

They’re in now, but they’re something like a millimeter too big in diameter and you really have to jam them in there. Hopefully I don’t have any issues with them because getting them back out will be a pain!

[hbreakz]

^ jedazero.
i got sanwas i had the same problem. i had to jam those in too. i think screw in.s are the best choice for se sticks if ppl dont feel like trying so hard to jam them in.

another topic … im having a hard time deciding. on which stick to get. i can either get a jlf or ls 32 but since jlfs are out of stock. what would be the big difference between the 2 cause im thinking about just going ahead n ordering ls 32

[System_1]

^ jedazero.
i got sanwas i had the same problem. i had to jam those in too. i think screw in.s are the best choice for se sticks if ppl dont feel like trying so hard to jam them in.

another topic … im having a hard time deciding. on which stick to get. i can either get a jlf or ls 32 but since jlfs are out of stock. what would be the big difference between the 2 cause im thinking about just going ahead n ordering ls 32

I believe screw-ins have their own problems. Specifically, IIRC there’s not quite enough clearance against the mounting bracket on the light kick and the bracket needs to be trimmed down if you’re going to try screw-ins.

From a joystick point of view, I dont think there’s a lot of difference between an Ls32 and a JLF, but there might be some mounting hassles, I’m not sure.

[System_1]

Howdy folks, new here.

I just recieved my LS-32-02 and having trouble completing the mod, all my new sanwa buttons work perfectly, just the joystick. It seems like the stock 5-pin connector doesn’t work with the LS-32. The joystick came with it’s own 5-pin connector but no female connector at the end of it. How would I go about making this work? Here’s some pictures.

http://i143.photobucket.com/albums/r148/smackv/3386397874_a004bf4dfe.jpg

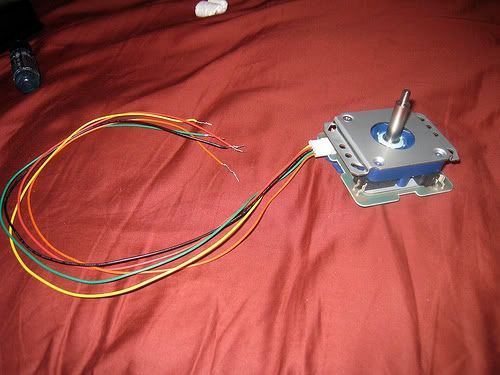

this is the ls-32. as you can see the end has no female 5-pin connecter

http://i143.photobucket.com/albums/r148/smackv/3386397938_86dc2b1c1a.jpg

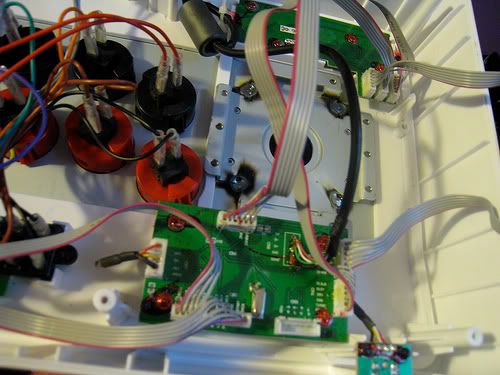

you can see the area where it’s unplugged.

This is my first mod ever, any help would be appreciated

[System_1]

#7 step is your answer

just got my Seimitsu LS 32-02 and PS14 KN buttons. I like the setup a lot , the stick is much tighter and buttons are much quieter compare to the original SE parts. a few notes i would like to share.

1. cut the glue that surround the oringinal 5 pin connector. carefully remove the connector that is pluged in the original joystick’s pcb. Leave the wire harness aside as you can use the same wire haress for seimitsu and sanwa joystick. (never pull from the wire, only pull from the connector)

2. it takes about 1 min with a nail filer to sand down the button’s plastic nut. i filed the side of the nuts too so it will sit flushly around the hole.

3. on the new stick, remove blue restrictor plate (2 screws), and the 4 screws under it.

4. pull out pcb and mount the S-plate with the joystick assembly to the joystick mount with 4 screws.

5. Turn the pcb 90 degrees until the connector is facing the wall (same side as the original stick)

6. screw in the pcb back to the joystick and put the blu restrictor at last

7. flip the orignial 5 pin wire harness upside down and stick it into the new stick.

A good philip screw driver is recomended for this job and try not to over torque the 6 screws when you put the bottom cover back to the box as the screw threads are made of plastic.

Edit: after a day of use , i decide to remove the blue restrictor plate as i found it too obstrusive form my liking. After closely examined it, The plate is sticking out about 0.5mm from the inner guide on the corners.

[System_1]

use the original conector just flip it upside down

Thank you very much. It works great now!
