1301

loving that template, been working on a Cammy one also with comic strip but damn mind sharing this…

1302

love the neutrik plug covers, they just make it looks soooo 1337 :wink: :smiley:

1303

Finally finished modding my 360 TE. Some of the things I did included…

  1. Modded with Toodles’ Universal PCB.

  2. Repainted the base using Duplicolor Medium blue.

  3. Modded the art using a 6-button Full Plexi from Arthong. Artwork came from MTG card “Master Transmuter.”

  4. Swapped out the Sanwa buttons for Seimitsu clear skeletons, swapped the Sanwa balltop for a Dark Blue Meshabll, and also swapped out the crappy TE screws for some stainless steel versions after popping out the old nuts and epoxing some other nuts that matched the new thread size. Also used a clear dustwasher, also from Arthong.

  5. Wired and installed a board for an LED pushbutton mod.

Whew, I think that’s about it. Special thanks to Toodles for the time and effort gone into his UPCB, Arthong for his plexi service, and the various contributors of the LED thread.

http://i1020.photobucket.com/albums/af329/crimeinpartner/TE_Front.jpg

http://i1020.photobucket.com/albums/af329/crimeinpartner/TE_Rear.jpg

http://i1020.photobucket.com/albums/af329/crimeinpartner/TE_LEDs.jpg

1304

Awesome, love seeing the LED’s

1305

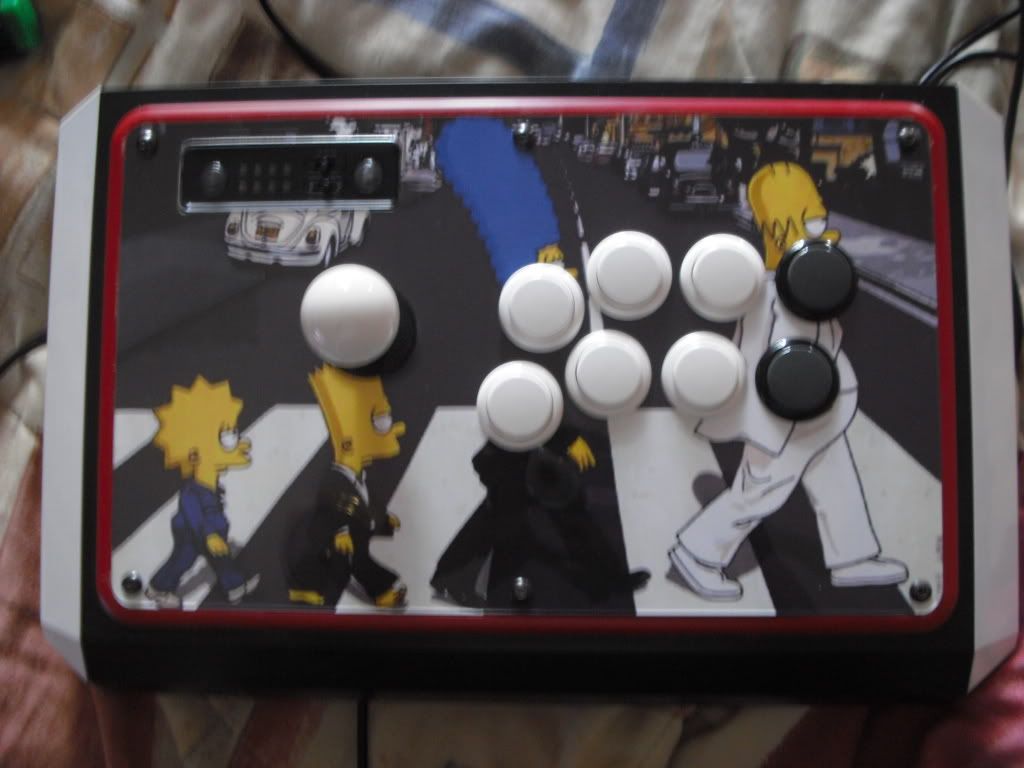

Wow dude, I might have to beg you to give me the template you used for this. As you can tell from my avatar I’m a huge Beatles fan, and I love the Simpsons too. This pic is just great, I can’t believe I haven’t seen it before. Good stuff man.

1306

This stick is awesome fujifilm. The recessed USB plug is really cool, I like that a lot better than having it mounted flush. Also, your paint job is incredible and goes well with your artwork, and the custom dust washer looks great too.

1307

Check out my awesome TE mod:

1308

OMG THAT IS SICK. I LOVE HOW THE BALL TOP BLENDS WITH THE STICK :cool:

1309

Completed custom for Yammy1688. Madagascar Ebony, Dovetails, Neutrik, Hybrid Layout, This one turned out really nice. It is the heaviest most expensive wood I have used yet.

http://img5.imageshack.us/img5/7886/dsc01513j.jpg

http://img199.imageshack.us/img199/9148/dsc01514n.jpg

http://img269.imageshack.us/img269/1369/dsc01515g.jpg

http://img40.imageshack.us/img40/5262/dsc01516k.jpg

http://img40.imageshack.us/img40/1246/dsc01517dw.jpg

1310

Beautiful work, holy smoke

1311

I love the darkness to that case and the way it shines. Never fail to impress Steve.

1312

Looks terrific, Kazujiro! Viewlix rocks. Very clean USB and RJ-45 mounting there too.

1313

Mad does that wood look beautiful. You are the man SteveTren, no two ways about it.

1314

gotta agree that wood is best I seen and to be honest worth the money for anyone who wants a custom stick which will last for a very long time…

1315

Kurn - that’s awesome!

1316

hi all finally wired up my Norris and changed buttons and art from

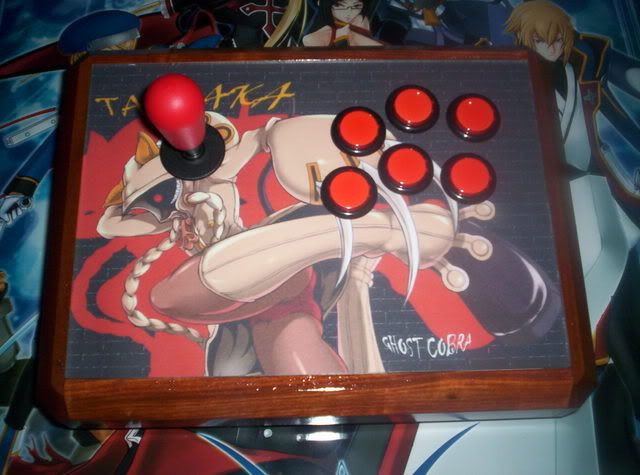

http://i230.photobucket.com/albums/ee241/GhostCobra/100_2526-1.jpg

into

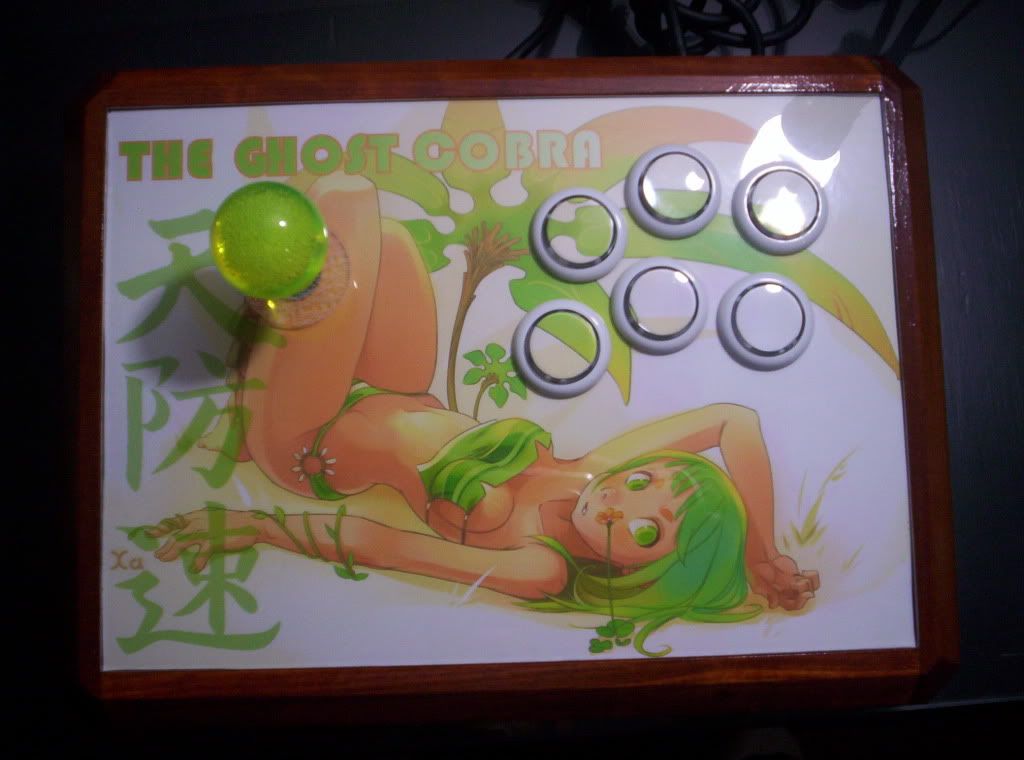

http://i230.photobucket.com/albums/ee241/GhostCobra/100_2738.jpg

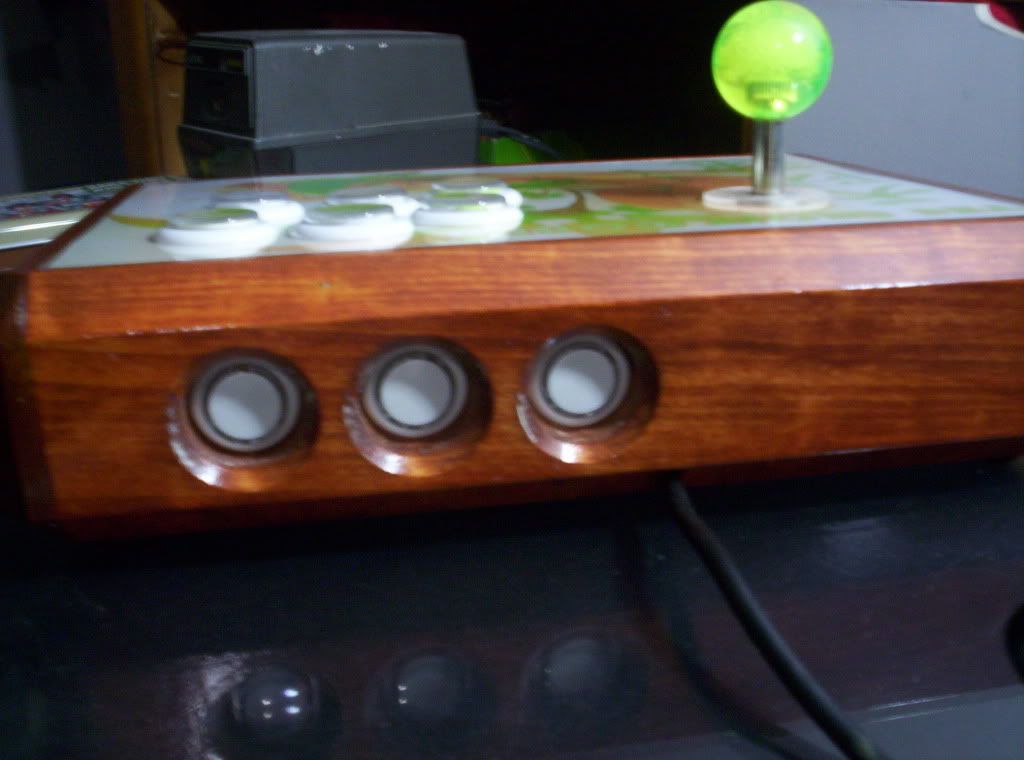

http://i230.photobucket.com/albums/ee241/GhostCobra/100_2740.jpg

more photo

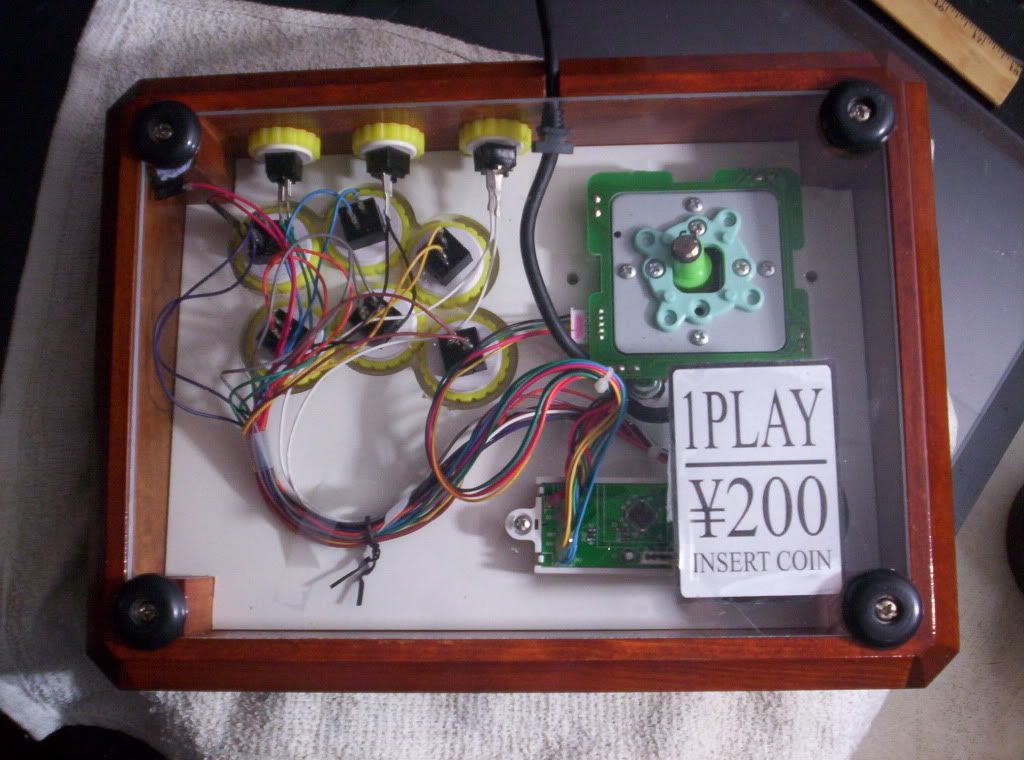

http://i230.photobucket.com/albums/ee241/GhostCobra/100_2741.jpg

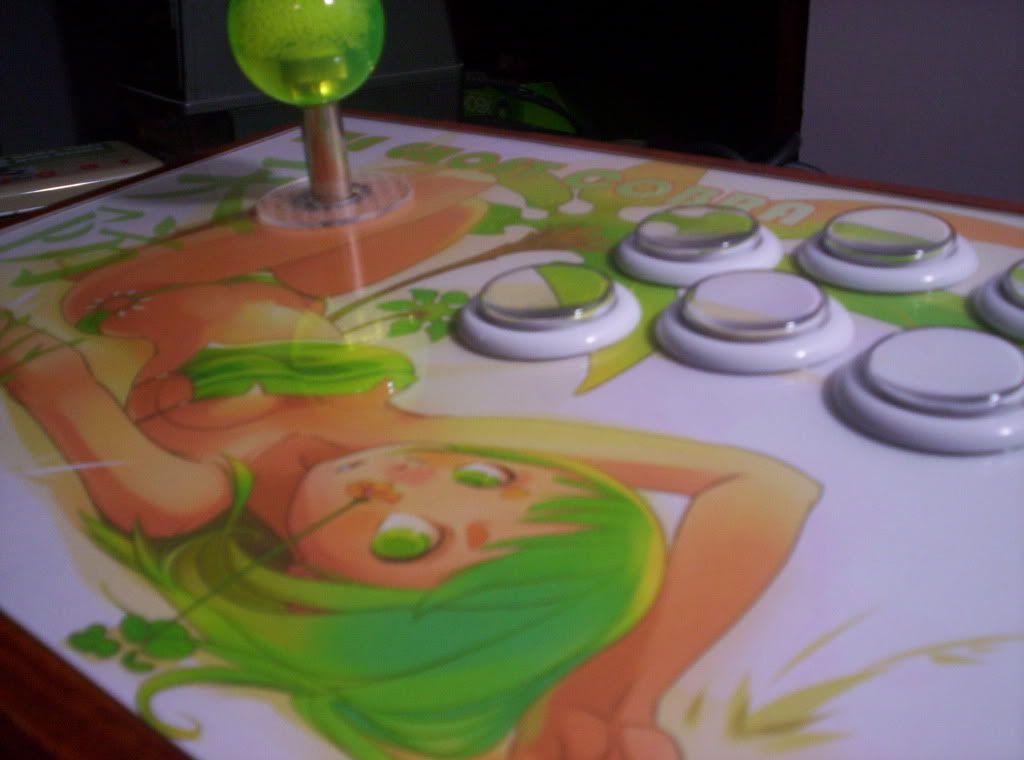

http://i230.photobucket.com/albums/ee241/GhostCobra/100_2742.jpg

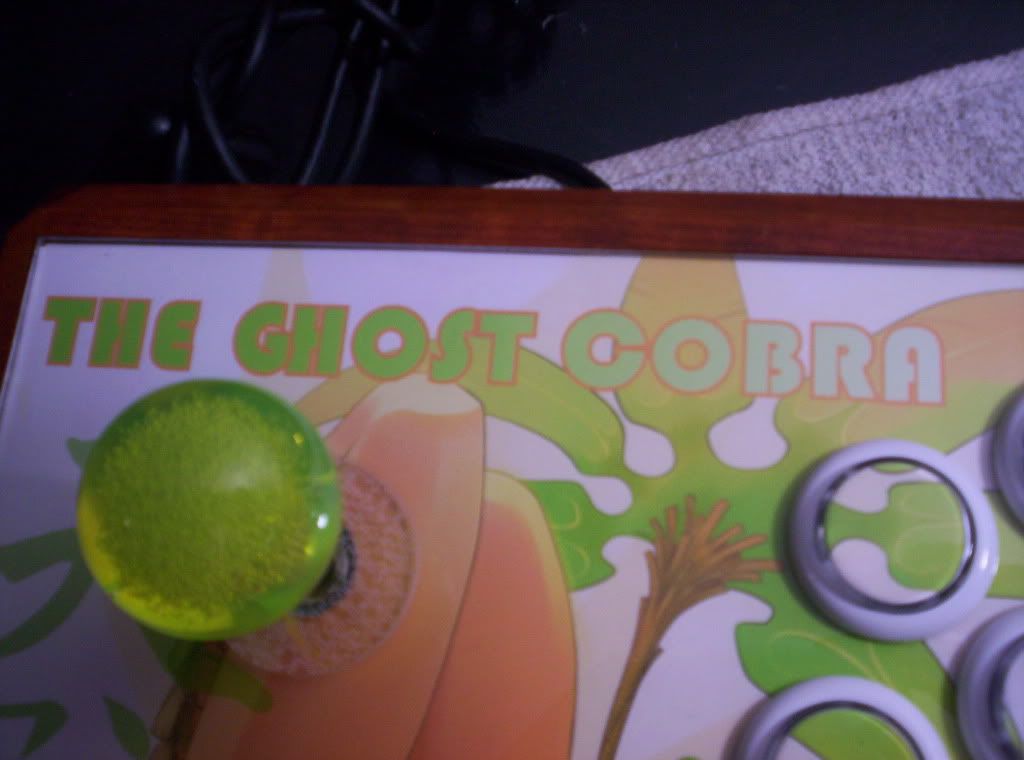

http://i230.photobucket.com/albums/ee241/GhostCobra/100_2743.jpg

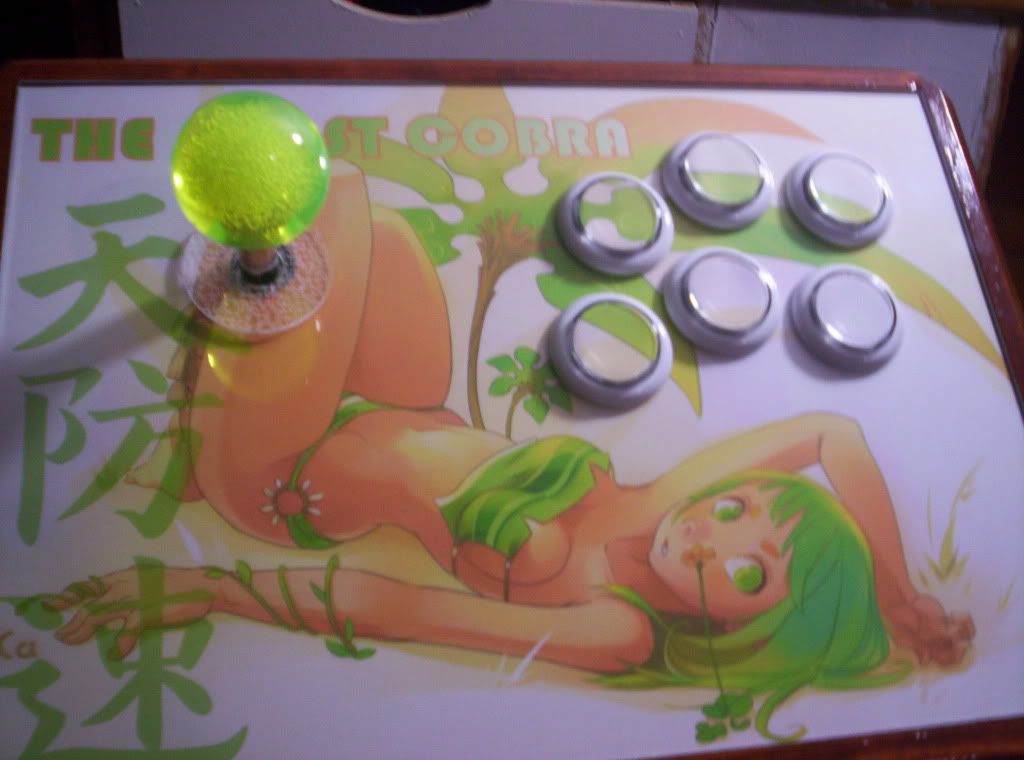

http://i230.photobucket.com/albums/ee241/GhostCobra/100_2744.jpg

wired up from HRAP2 SA guts
seimitsu 32-01 and buttons
art be the great http://gueuzav.deviantart.com/
may have seen his work in Darkstalkers trib book

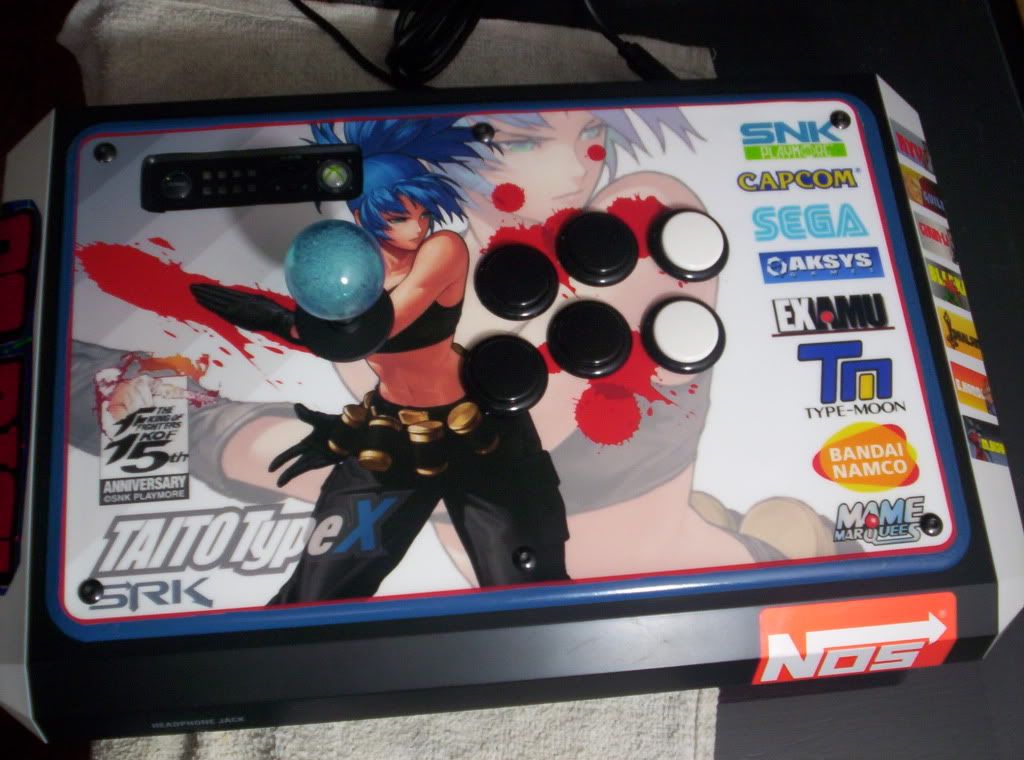

my 360 TE.
this stick is a work horse, now is messy with stickers and just a change of buttons (side ones now too) and now houses a LS 32 01
got into spirit of “import car logo style” some SRK’er coined it.
remember stickerz make it go fastererz.
what really got me curious to try logos was Nick Rox’s stick posted a bit ago.

http://i230.photobucket.com/albums/ee241/GhostCobra/100_2749.jpg

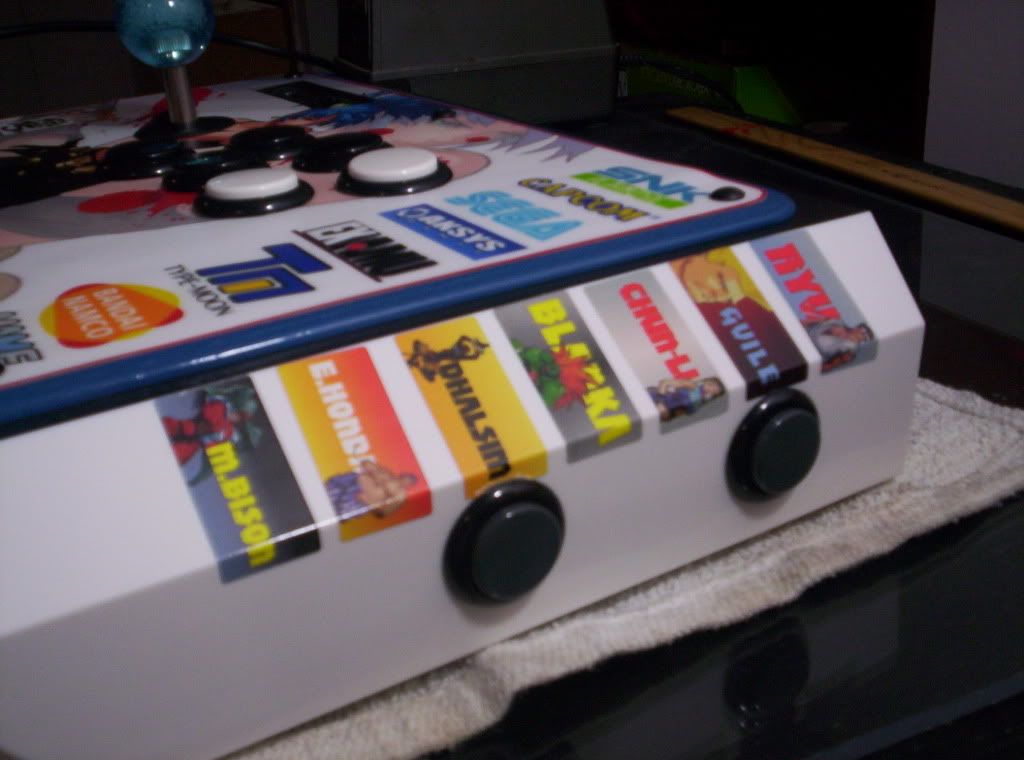

http://i230.photobucket.com/albums/ee241/GhostCobra/100_2746.jpg

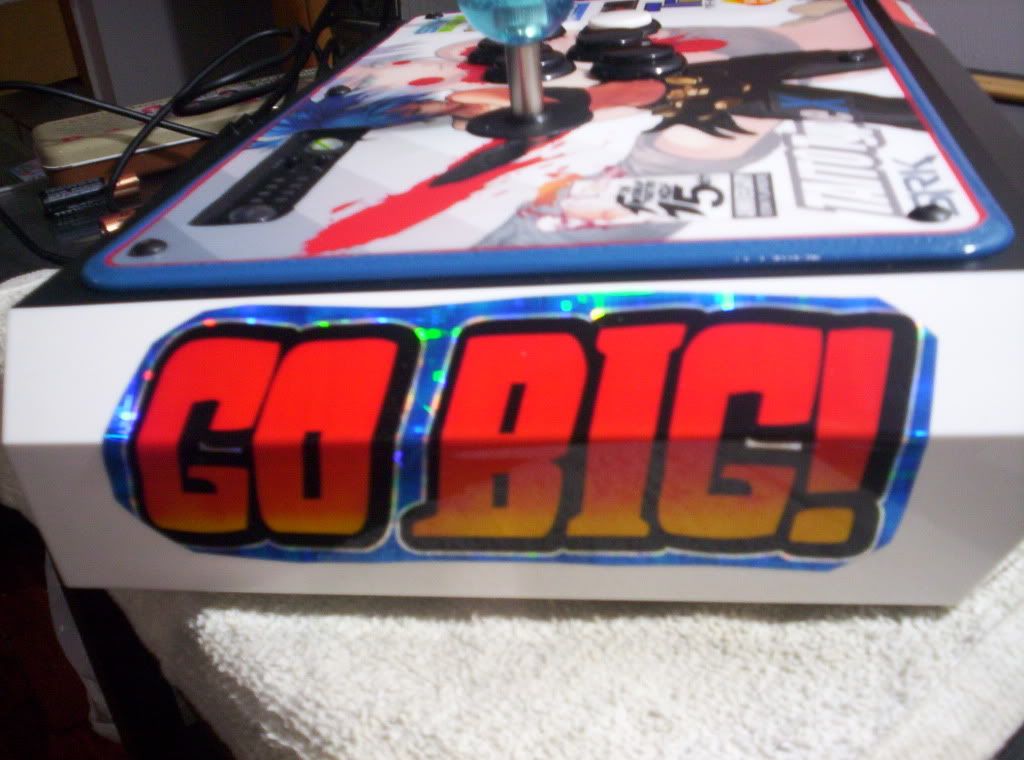

http://i230.photobucket.com/albums/ee241/GhostCobra/100_2748.jpg

1317

nic custom i’ve seen all week.

1318

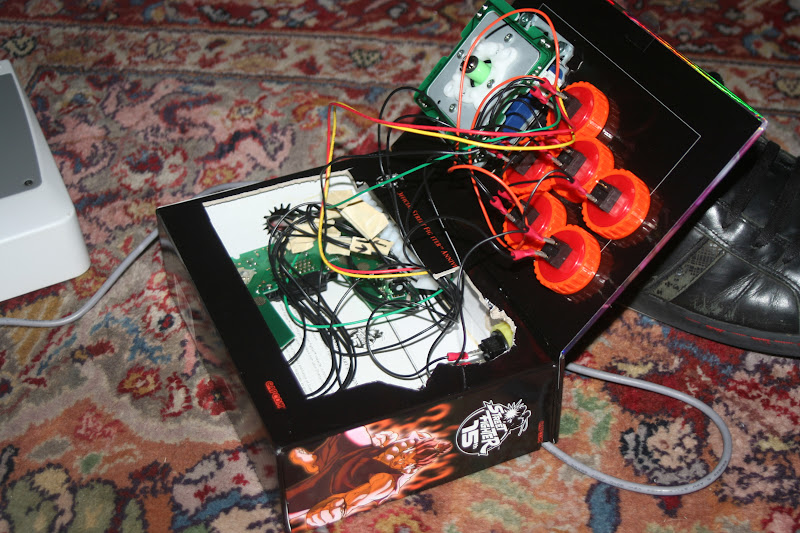

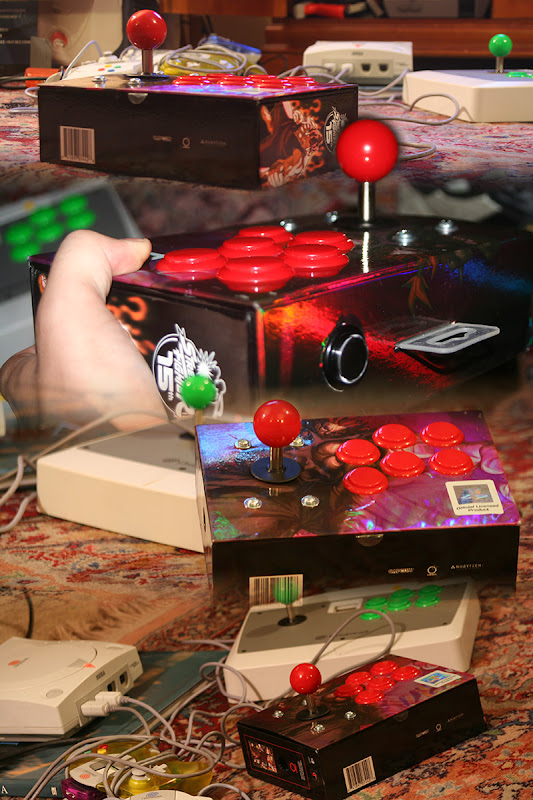

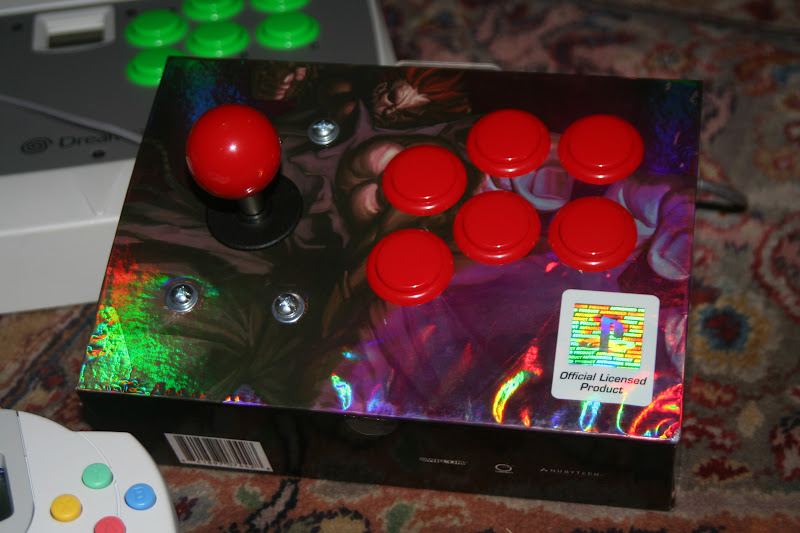

My very first custom…
Seimitsu LS-32-01
Sanwa OBSN-30
Seimitsu PS-14-GN
Mad Catz Dream Pad (So easy to solder!)
Official Street Fighter Anniversary Edition Controller Box of the Akuma variety

It’s actually very sturdy. The cardboard has some real weight to it.

I wanted a second stick to play with on Wednesday (DC 10yr Anniversary). I have a Norris case that I’m painting, but it wont be done for a few days.

EDIT: This page was full of win before I came along… my bad.

1319

This page still is full of win haha, that looks awesome.

1320

Haha thanks, smdude!

I just noticed that I managed to sneak the Agetec into every single shot I posted… :lovin:
