Too much white?
Here’s how my HRAP3 stick looks like after a casing swap with a friend’s HRAP2SA. Modded with Seimitsu’s LS-56-01 and Seimitsu buttons with simple artwork beneath Arttong’s plexi. Tell me what you think guys. Too much white? Too simple?
I don’t think it’s too simple, I’m not usually a big fan of white arcade sticks, but I like it.
I really do like it. Finally got it wired up, and it works great.
Yea, I was hoping it wasn’t too much green, but I think it turned out well.
both of those sticks look bad ass. good work, nice and simple.
http://i10.photobucket.com/albums/a113/bassmanjoe/183.jpg
Here’s my new stick! Raeli made the art and what not, I got Arthong (check his thread) for the plexi and the cut for the artwork.
Nice, Joe. Pink buttons would go great with that art.
Here’s my recently modded PS3 TE, stainless steel hex cap screws, Vewlix CP art, arthong plexi with etched PlayStation button layout, Toodles’ MC Cthulhu, Neutrik RJ45 plug and USB jack mounted on the inside of the cable storage compartment, RJ45 PS2 and GameCube cables. I didn’t bother with a 360 PCB, don’t have a 360 or have any close friends that do (and play fighters) either.
http://i710.photobucket.com/albums/ww107/Kazujiro/HPIM0573.jpg
http://i710.photobucket.com/albums/ww107/Kazujiro/HPIM0575.jpg
http://i710.photobucket.com/albums/ww107/Kazujiro/HPIM0577.jpg
http://i710.photobucket.com/albums/ww107/Kazujiro/HPIM0579.jpg
Just a quick pick of my modded TE stick I did 2 weeks ago. Took the picture from my phone.
Nice Kaz! :tup:
Wow, thats something I’ve always wanted to do with my TE (dual mod with RJ45 jacks).
I think I might try that in the future. Did you use an Xbox360 TE or a PS3 one?
I used a PS3 TE, it’s gutted though, the only thing left inside of it stock is the wires/QD’s/terminal strip. I didn’t take pictures of the inside yet, since I’m waiting on some USB cables to come in the mail. Currently have a 3-ft. USB cable tangled up inside since I didn’t have anything shorter.

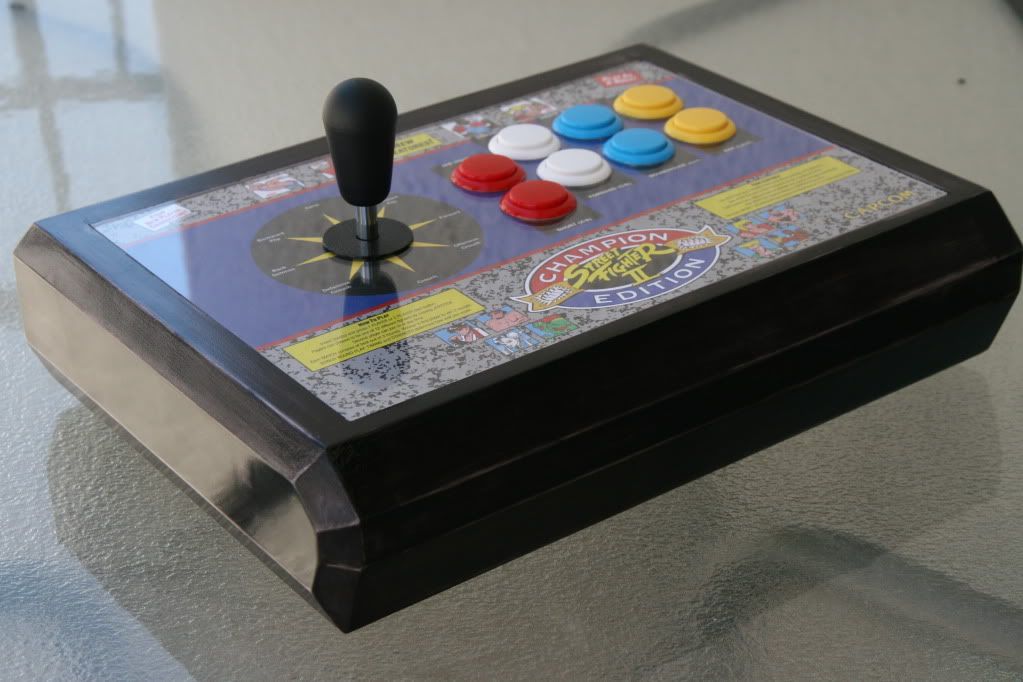

Here is my Voltech slim case made of zebra wood. PS3/360 dual mod, with the almost overused SFII cabinet art (I think there are still more Chun Li sticks around).
This one (LINK) was the one I did for a friend of mine a few months back. I think the colored buttons looked better though… :sad:
I really like that.
Old school and really neatly put together. Got to say, I prefer the white buttons myself…
My Wireless Stick
I’ve been lurking on here for a while. This is my first joystick I’ve built after months of research and waiting for backordered parts. Thanks for all the information.
This is a wireless joystick. I was wired by HarumaN over at http://forum.arcadecontrols.com/index.php?topic=64050.0;all who did an awesome job.
Sanwa Jlf joystick and 30mm buttons. Seimitsu 24mm buttons on the back. There a few little blemishes I need to work out, and I’m going to wire it up with the plug and play once I get one of those usb passthroughs. Any one got a link where i can pick some up?
Freedom fighter
Converted a MAS enclosure. I made the art from this…
http://jaxspider.deviantart.com/art/Ken-Dragon-Punch-2404184
and this…
http://rebstile.deviantart.com/art/Black-Diamond-Plate-70290129

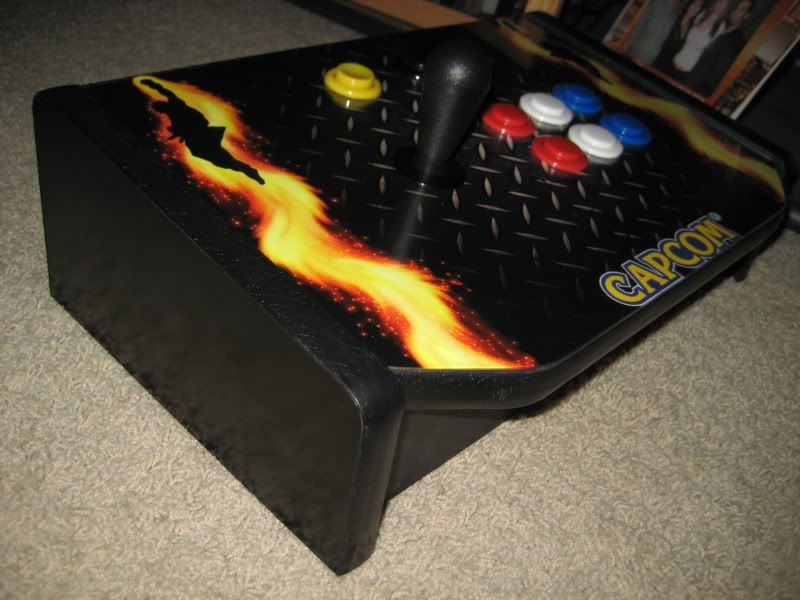

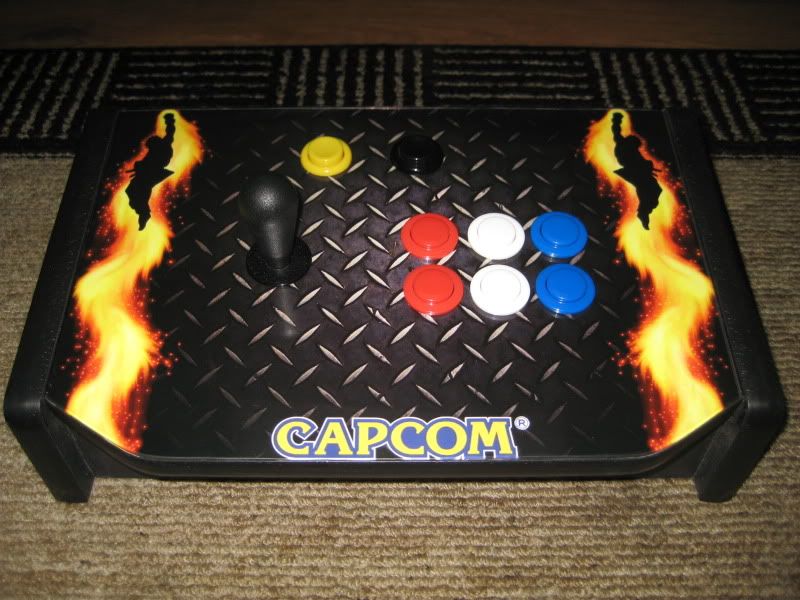

GLORY New art & plexi. Yes that’s a JLF dust cover (no that part is not American!:arazz:) Side shot shows vinyl adhesive.
http://i46.photobucket.com/albums/f127/kubebot/Vinylsides.jpg

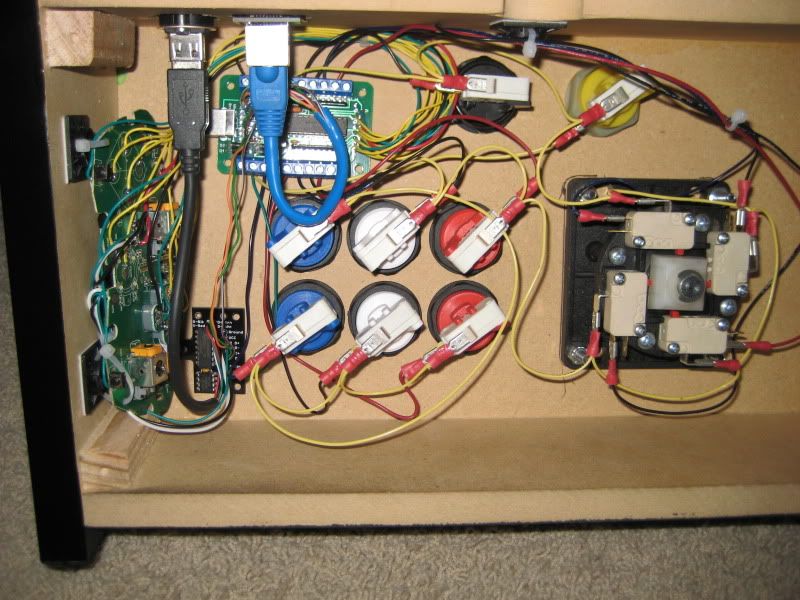

GUTS Madcatz 360 PCB/MC Cthulhu/IMP with iL/Happ…
http://i46.photobucket.com/albums/f127/kubebot/Guts.jpg
PRIDE

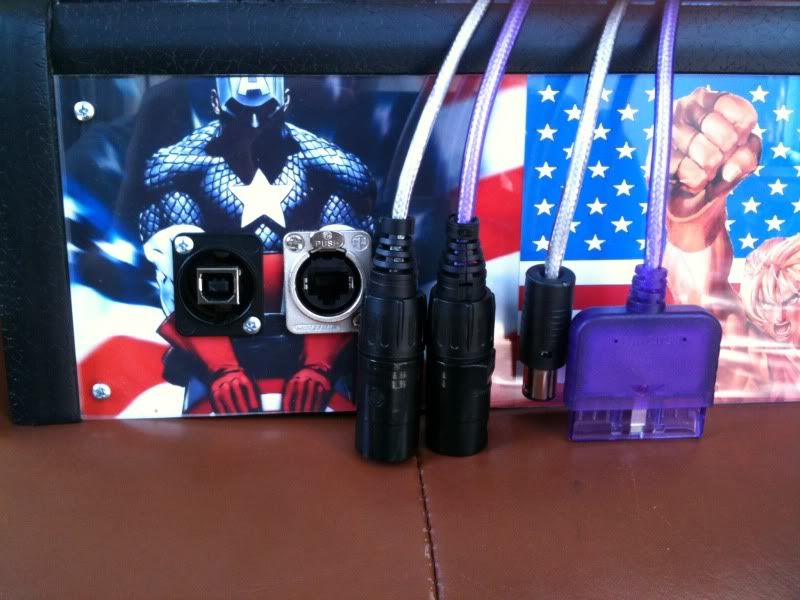

FREEDOM
http://i46.photobucket.com/albums/f127/kubebot/Freedom.jpg

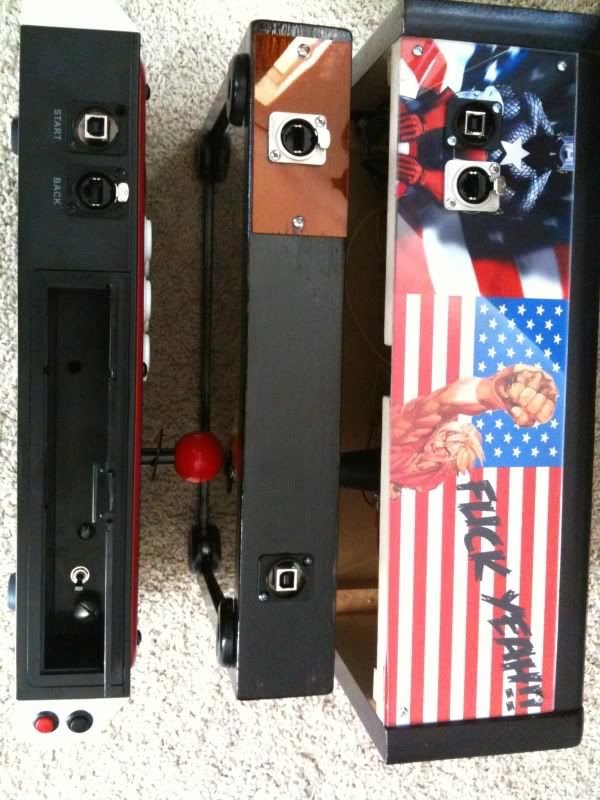

UNITY …now joins the multi console stick family.
http://i46.photobucket.com/albums/f127/kubebot/Multiconsolefamily.jpg
Awesome stick, DagYo. What kind of camera did you use to take those shots?
my modded tekken5 stick finally broke so i decided to go all out with a custom.
i only wired up one button because thats all i use anyway with the character and game i play*
it’s a voltech case; nobody really cares about the buttons/stick/pcb since there are only so many combinations anyways so ill just post pics
http://img186.imageshack.us/img186/4448/stick1c.jpg
http://img515.imageshack.us/img515/7788/stick2.jpg
http://img215.imageshack.us/img215/7793/stick3.jpg
kinda wish i had a better camera. its like a work of art, not gaming hardware. i almost feel bad for mashing on it.
*not really
Thanks bro. Woodcraft
Nhtran328 CNC Machined Aluminum Case
jlf with seimitsu buttons
Thanks man, It’s a D700 with a 60 macro
Where did you get your usb pass through?
