Check Out My New Arcade Stick! (No Image Quoting)

[Kyle]

I hope nobody has kids in the room when they stumble over that.

Or at work. Don’t post stupid shit.

[ipitydatfu]

that mickey mouse avatar says it all

[LuppyLuptonium]

Forgive me for posting this, I realise it is off topic, but why is that guy not banned yet. He has done nothing but post racist and offensive crap in this thread that is supposed to be about checking out the coolest and newest joysticks people are making.?

Also, because I refuse to make a post in this thread that is completely off topic. Steve F, your friend does awesome Street Fighter Art.

[Kyle]

Forgive me for posting this, I realise it is off topic, but why is that guy not banned yet. He has done nothing but post racist and offensive crap in this thread that is supposed to be about checking out the coolest and newest joysticks people are making.?

Feel free to PM me when you see this stuff. I don’t check this thread all that regularly. I gave him an infraction for Porn, which apparently is a ban-worthy offensive.

[System_1]

My friend made the art, its a take off the SF2 art.
http://farm3.static.flickr.com/2553/4188639365_fe9724abff.jpg

Tell your friend I want his art on a shirt now.

[System_1]

Anyone know if the Sanwa OBSM Series 30mm Hole Plug or Yenox Hole Plug on LL cover up the hole so well that it’s unnoticable through the Lamilabel? I want it to look like this guys Berzerk SE, any suggestions?

Nope they leave a big bulge… it screws up the art … What I did, i got the Yenox hole plug and i sanded it down so that it was ALMOST perfectly flat. Now don’t sand much or you will go trough the hole plug lol (did it on one button but glued it back on). That way when i put the art on top it looked fine.

[purplearms]

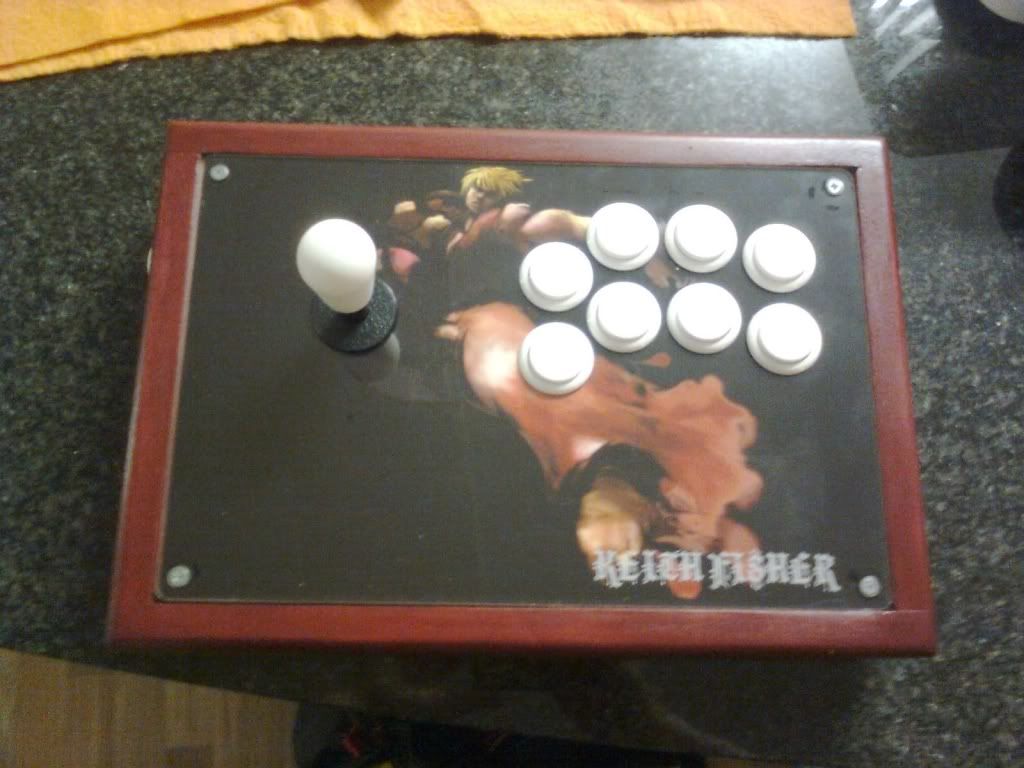

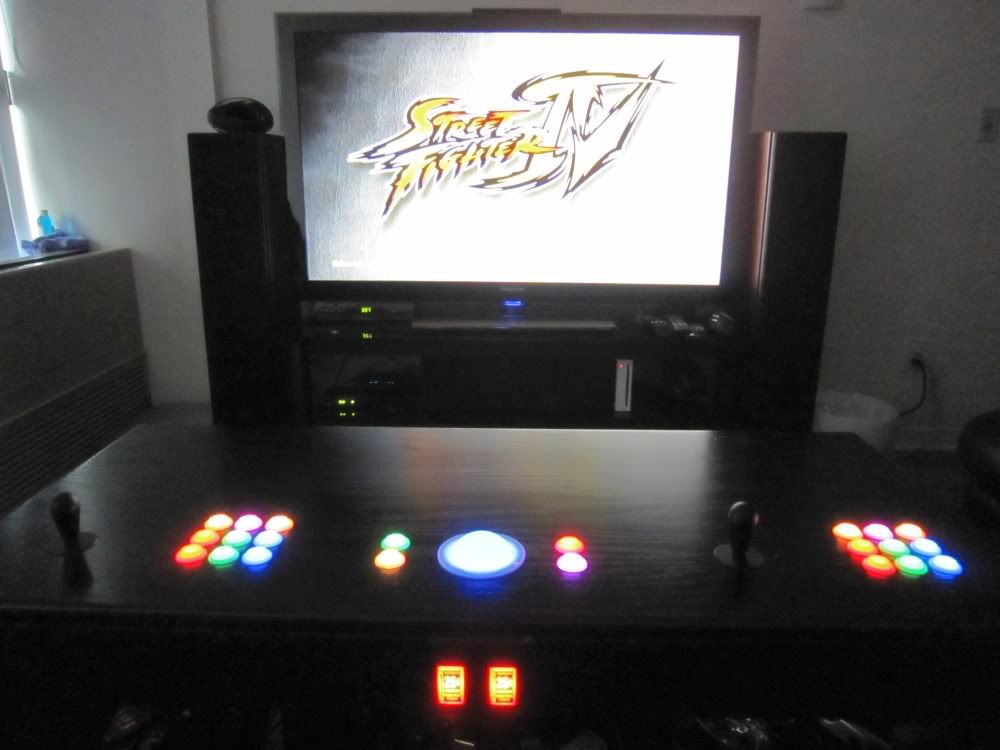

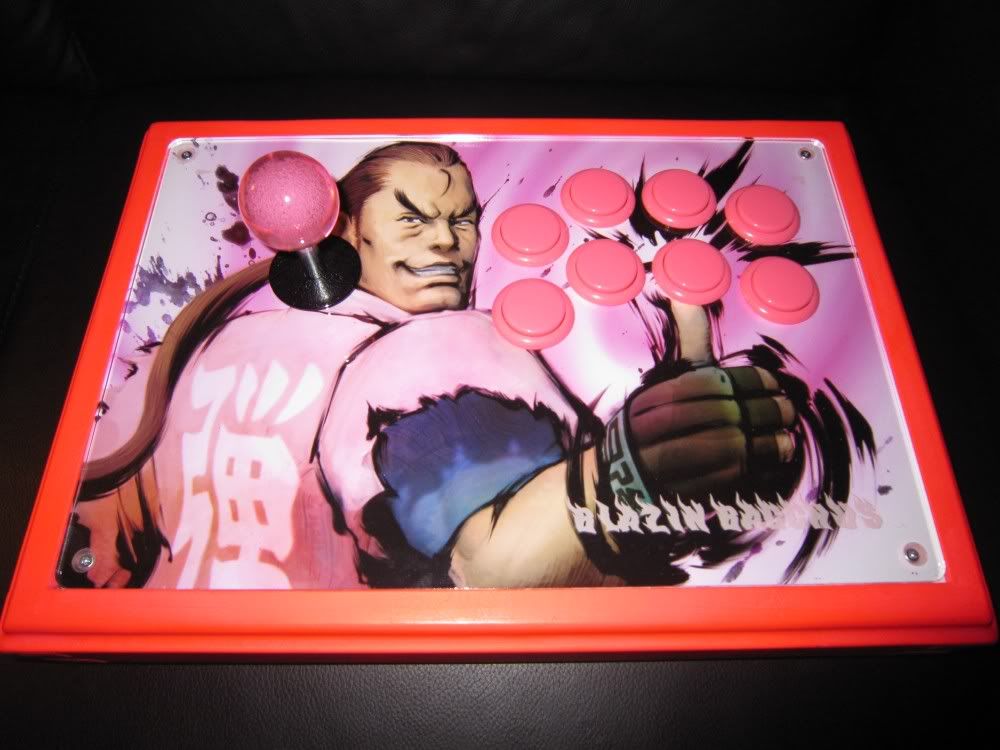

Here’s some quick pics of the sticks i’ve made

http://i579.photobucket.com/albums/ss240/purplearms/IMG_0463.jpg

http://i579.photobucket.com/albums/ss240/purplearms/Keith6.jpg

http://i579.photobucket.com/albums/ss240/purplearms/New.jpg

[kte03]

pretty lights :lovin: What’s that 9-button layout for exactly?

Also, that Dan stick is love.

[purplearms]

pretty lights :lovin: What’s that 9-button layout for exactly?

Also, that Dan stick is love.

Oh the top row is 3p, start, 3k… the coin button is the guide button… i layed it out that way for mortal kombat, which i regret now because i never play… lol

dan is awesome! not too many people know how to use him properly :lovin:

[mr_u_suk]

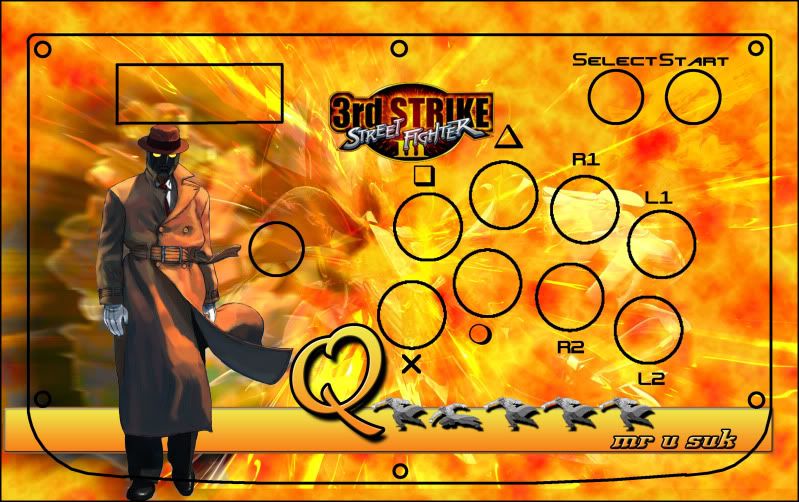

well my stick is currently in pieces and should be completed in the week, but here is the art (made by me )

http://i22.photobucket.com/albums/b302/mrusuk/QHRAP3Artwork.jpg

going on a my Hori, which im modding with 8 new Sanwa OBSF-30 butttons, Sanwa LB-35 Meshball top, and a Sanwa GT-Y Octogate

[kte03]

… EXPLOSION! :tup: Looks great, I’m guessing the Hori template thread is dead?

[juden666]

Wow that is a dope coffee table!

[mr_u_suk]

… EXPLOSION! :tup: Looks great, I’m guessing the Hori template thread is dead?

thanks, however i feel a bit dumb. i didnt realize there was a thread for just the art

if my post needs to be removed just tell me

[Trouble_Brewing]

Awesome coffee table purplearms!

[Pro_One]

well my stick is currently in pieces and should be completed in the week, but here is the art (made by me )

going on a my Hori, which im modding with 8 new Sanwa OBSF-30 butttons, Sanwa LB-35 Meshball top, and a Sanwa GT-Y Octogate

Hey can you tell me where to get that Q animation on the bottom right of your stick, also great work i really like the templete can’t wait to see the finished stick.

[mr_u_suk]

Hey can you tell me where to get that Q animation on the bottom right of your stick, also great work i really like the templete can’t wait to see the finished stick.

http://shoryuken.com/wiki/images/4/4c/(qsa1).gif

the design took like an hour, the hardest part was the sprite. i wanted to find a good version in JPEG because i dont have ImageReady any more and dont know what i replace it with

i had the gif converted to JPEG but it came with the purple background and i just couldnt clean all that purple out fully so its in black and white instead. all that work and a sprite is what makes me do days of searching and work.

and thanks bro! :lovin:

[Hunter-Zero]

I bought the two of these old style AES controllers in pretty piss poor condition from an ebay auction, and I’m almost done rejuvenating them.

Fact is, I never really liked my original AES stick gaming, but the d-sub 15 shaped connector and the simplicity of the wiring makes them VERY VERY handy for the electronics crap I’m always doing. After the buttons were replaced, I may just have to give them a shot for Neo gaming again.

Work done:
-Original buttons on both which I HATE were replaced with 24mm Sanwa snap-ins, colors matching the ‘official’ colors of the four buttons.
-One of the stick’s cord was absolutely destroyed. This was replaced with a perfectly working cord thanks to Hunter-Zero.
-Each of the sticks were completely disassembled. Each piece was completely wiped down to remove the old grime buildup combination of cheeto-dust and plastic grease. After they were wiped down and cleaned completely, silicon lube bought from masterfadur was used on all of the moving parts, especially the fulcrum grommet.

• The original Matsushita microswitches were replaced with brand new identical switches made by Omron. Frankly, I’d bet the originals were still working alright, but I know with these new ones I won’t have to mess with it for another 10-20 years. Digikey part number: SW1086-ND
• One of the sticks was missing the balltop, while the other had the usual cracked purple ball. Both were replaced by red LB-30 balltops.
• An additional dust washer was added to go above the stick case. The original dust washer the went between the main stick body and the stick case was cleaned and left in place. I was always afraid before of pinching skin between the stick and the case top. I think this looks much better, which no fear of pinching.

Todo:
-get some of that auto scratch remover/plastic polish stuff to clean up the outside of the case.

I can’t wait to dig out my CMVS and give them a try. The stick feels TONS better, and I’m very impressed by the small size, short throw, and overall simplicity/elegance of the stick design.

http://img519.imageshack.us/img519/5779/dsc01868copy.jpg

Nice ones Toodles!! Im glad to see that my cord was useful :wgrin:

I still have one old and almost destroyed AES stick ready to mod, maybe next time ill try something different with it…

Good idea replacing the microswitches, ill keep that in mind in a future.

[Pro_One]

http://shoryuken.com/wiki/images/4/4c/(qsa1).gif

the design took like an hour, the hardest part was the sprite. i wanted to find a good version in JPEG because i dont have ImageReady any more and dont know what i replace it with

i had the gif converted to JPEG but it came with the purple background and i just couldnt clean all that purple out fully so its in black and white instead. all that work and a sprite is what makes me do days of searching and work.

and thanks bro! :lovin:

Cool good stuff man, do you know where to get other people besides Q at?

[bencao74]

@purplearms :

This DAN stick is very pink Is the lucky customer aware of this color ?

[Iduno]

Finished my PC stick.

It’s a 360 padhack with full sanwas in a hardboard box with a plexiglass cover.

http://img121.imageshack.us/img121/4332/sv400006.jpg

http://img194.imageshack.us/img194/2880/sv400007.jpg

http://img693.imageshack.us/img693/2689/sv400008.jpg

The bottom is just fit to stay on so it can be just pulled off and put back on when needed.
