Cannot wait to get my hitbox and mk layouts, I am really liking the way the closer together mk layout looks, cant wait to try it. If i pay in full now can you ship mine on wednesday as well.
Oh okay thanks BLK. Are you going to make the HRAP1/2 Panels or just the HRAP3?
I’m down for an HRAP3:SA panel with a 6-button Astro City layout! :china:
Yes sir if you pay in full before they arrive I will ship them as soon as i have them
Shipping anywhere in the U.S. is $11 if anyone knows a cheaper way to ship in a box please let me know.
International shipping is still being figured out.
Remind me again which ones are the same size because i drew a file for the hrap2 SA but i thought they were all the same size. if that is not the case then please let me know.
If i am not mistaken the Hrap 2 Sa panel is the same size as the Hrap 3 sa. if that is correct then you may be able to get one in the next couple of days.
Sounds good. Thanks! :tup:
Needs VLX
So this was the easiest piece to draw, the only thing i need to know before i can get some cut are the L and the W of it exactly. I have it at 405mm by 161mm but because i dont have the panel I dont know the exact dimensions. also i need to know have some sort of inside pics so i can see where i can place buttons for different layouts.
The vlx is also easy, its dimensions are probably close to my Large DIY that you should be receiving soon. I also need to see pics of the inners of this. so if anyone has the dimensions of these two panels please let me know and i can get these panels cut too.
I don’t have any good measuring tools with me here, but I dug up my old inside pics. Space looks tight.
Man, even astro layout would be kind of a tight fit.
Well that is a shame, all of that panel and it really cant be modified unless people were willing to cut the case a bit. I can probably barely get an astro city 6 button in there and i would need to know the exact placement of the joystick hole because it looks like it is right up against the case. All i could probably do with this stick is offer astro city 6 button layouts and straight button layouts with the ability to use a k stick if you wanted, but no mk layout or anything like that. Oh and also top lexan pieces that cover the face of the stick but thats about it
Yeah, I forgot about how tight the fit was until I looked at the pics again. Kinda hit me that there would be some “I am disappoint” moments for people who wanted an MK layout. Still, I think straight and 6-button layouts are better than no options at all. I’m lucky since a 6-button layout was mostly what I wanted, and it seems like there’s just enough space to cram three 24mm buttons at the start button area so I can have my 6-button layout without giving up functionality from the other buttons. The lexan would also be welcome, since Art doesn’t offer plexi for this stick. Do you think it would be possible to map out the outline of the case and where it fits in the panel? It’d help people figure out how much freedom they have moving buttons around.
Is it possible, if i had the stick then yes but i do not have the stick myself so i cannot mark those things. If i was to get the dimensions of the panel and the exact location of the joystick hole and short button then i could create a very good estimate of how much space people would have to mess with buttons but that would be the best i could do for now. For your astro 6 button setup with the 3 func buttons to the right, it may look a little funky but it is definately do able, it just depends on how wild your fingers are when you play because the 3rd button would be a littl bit to the right of the center of the 3p button so you would have some space in between the hk and your func buttons.
Did not want to announce this until i got a nice pic of it up but i am excited, so lets just say that hopefully within the next couple of months one of the main reasons for the creation of my DIY panels will be revealed in person. :party:

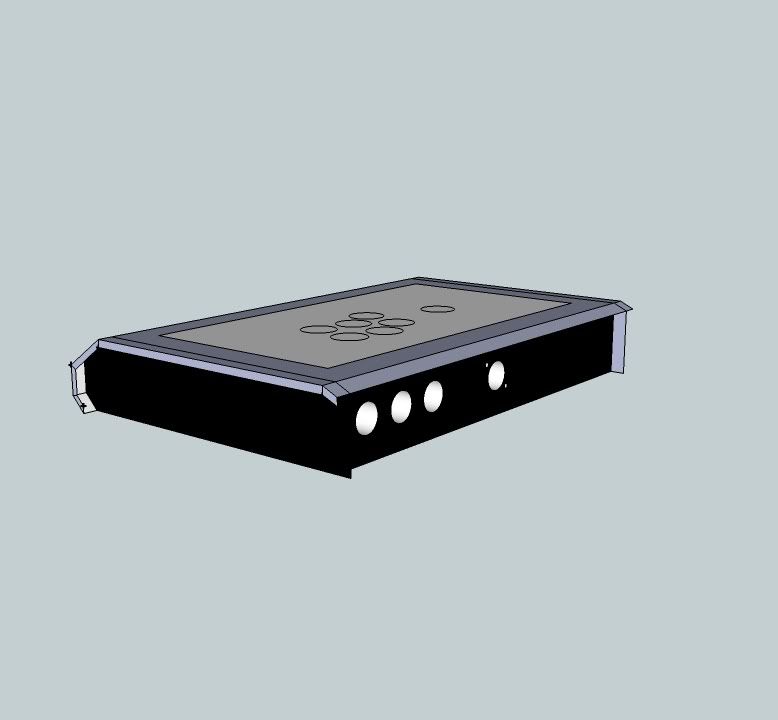

Here is a sneak peak
however nothing is final and this may or may not come into production.
Also tuesday cant come soon enough i am too excited to get these panels out to you guys.
Oh sorry. The Hrap are all the same. It’s just the button layput for HRAP1/T5 are different than the 2/3
Cool then i will know later today if i am going to be putting a couple of those up for sale or not.
I wanted to post up another panel that i got ready for Butteroj(condensed mk) and a couple for my neighbor that will go into some sticks i am making for him(hitbox and vewlix 8 button) but i cannot find my camera. O well i will get them up later today when i post the TE panels.
Also guys i just cleared my pms so your good to send me messages but please it is easier to communicate through email LLC@TheGameSurgeons.com

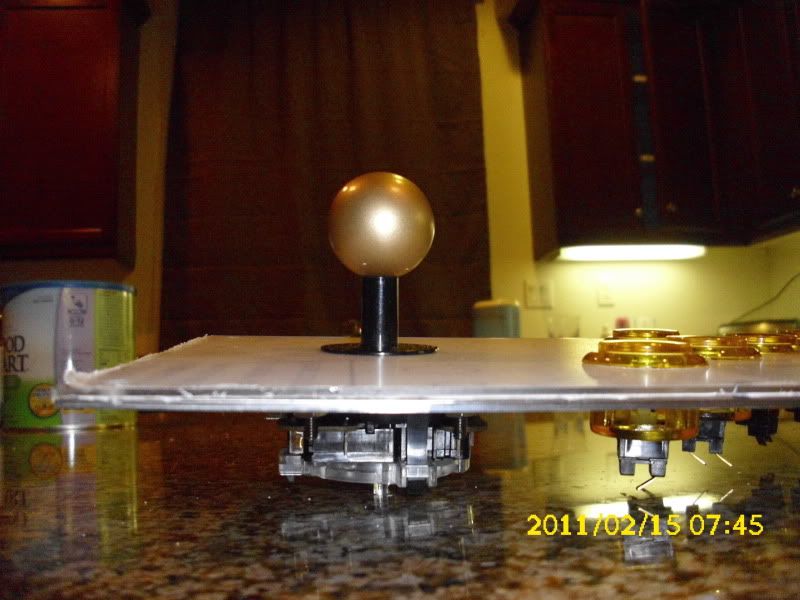

Here is a condensed MK layout for butteroj with Lexan top,
This Stick is sitting at 23.4mm so pretty perfect folks

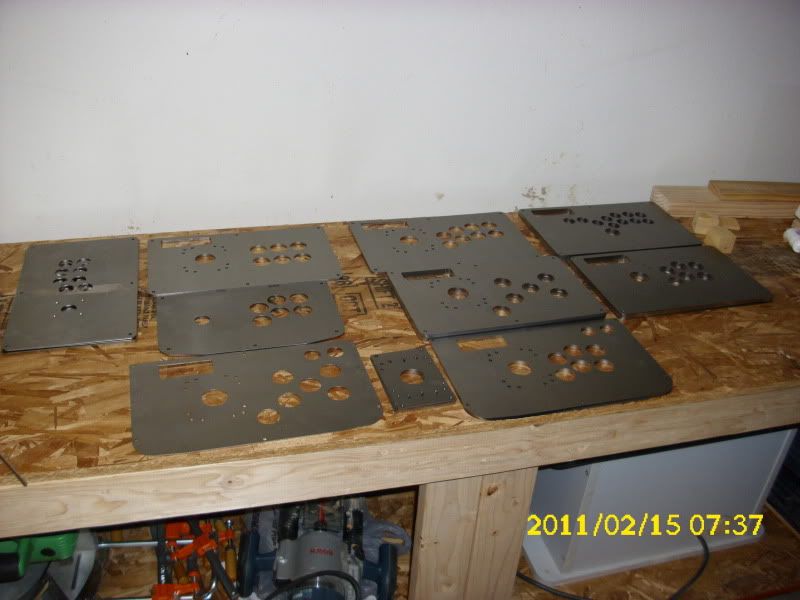

Oh and guess what i picked up today
I decided that because they looked so nice that i am just going to keep them all hahaha jk.
The only thing i am mad about is that he messed up my order and gave me all 9 regular mk layouts when i wanted 5 regular and 5 condensed but its ok.
You will be seeing alot more pics tonight I just dont want to take any more pics with this crappy camera i have right now.
There are
6 TE astro 6 button layouts
9 TE hitbox layouts
9 TE mk layouts
4 TE hori tekken layouts
4 TE straight layouts
These are all of what is left of this current batch because some have already been spoken for.
There are also 4 hori 6 button and 1 hori mk layout there but i am not sure if they are going to be for sale or not yet because i need to do some testing

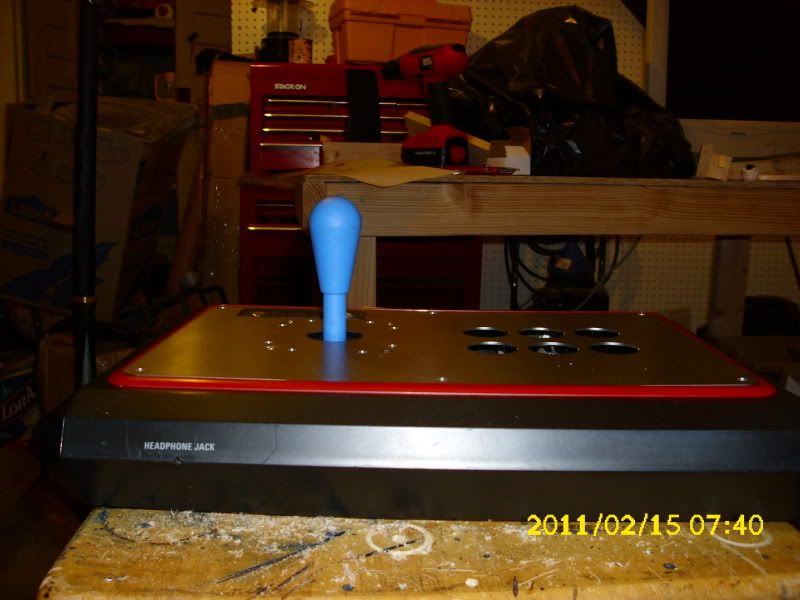

More pics coming soon in a couple of hours, can someone tell me how far down a happ/il stick is supposed to mount because i currently have one mounted in my TE with the bottom on and it is not touching the bottom at all however i am sure it is mounted to high, Here is a rough pic.
Looks a little high but of course if you are someone that just wanted an il/happ and dont care about mounting height then this will work for you, but in order for me to get the correct height i just need someone to tell me what is the correct height for the il/happ
Also for all of you that custom ordered dont worry i have your orders as well and will post some pics up a little later with them and they will start shipping later this week. My order of 1/4"(6.35mm) spacers ran into a problem and should be here later this week. For those of you who just ordered a bare panel and plan to put art over it, that will have you sitting at 24.05mm high so pretty perfect.
The spacers that will be offered for the replacement panels are going to be 5mm and the 6.3mm spacers
5mm spacers are for those who want a lexan top and 6.3mm are for those who want just the panel to put an art overlay on top. Pics of mounting and mouting parts coming soon.
Looks good man!
The Happ sticks have a wood and a metal spacer that come with it when you buy a new one just for this purpose. The thing is the metal setting will lower the shaft inside the case and probably hit the bottom of the T.E. The only way I know to fix that is to chop the shafts just below the e-clip ring. I’ve done this a few times just hit me up and I’ll walk you through it.
Interested in a HRAP replacement. Hit me up if the second order happens.
I would like to order a Hitbox panel for my TE please
Sweet! Can’t wait to get these!
