Hi,

NEWS

Shop opened for Plexi

Available Plexis

[LIST]
[]TE in regular size for TE 1st, 2nd and SSIV Edition:fits exactly in the red frame
[]TE in extended size for TE 1st, 2nd and SSIV Edition:no need of red frame anymore
[]TE in full size for TE 1st, 2nd and SSIV Edition:Covers the entire TE Front
[]TE side plexi for TE 1st, 2nd and SSIV Edition:Covers the Start and Select Button, so you can add artwork here, too
[]TE bottom plexi for TE 1st, 2nd and SSIV Edition:Covers the Case Bottom, so you can add artwork even under your stick
[]HRAP2, 3, EX
[]HRAP1 and T5 Stick
[]Dreamcast Stick, Agetec Stick
[*]VSHG Stick
[/LIST]
Check out the Artwork service.

New Button Plexi inlays

Button Inlays

Plexi Examples

I`ve setup some TE and custom plexi. See here my work. Plexi was lasered and all edges was polished.

List of available Plexis

All thickness for transparent plexis is 1/16 inch, 2mm

**- 6 Button TE regular **Size
** - 8 Button TE regular **Size

**- 6 Button TE extended Size
****- 8 Button **TE extended Size

**- 6 Button TE full Size
****- 8 Button **TE full Size

All sizes are available with and without turbo or screw holes.Just let me know what you need.

**Other Colors **

Different colors are possible. Thickness is 3/32 inch or 3mm

**- 8 Button ****TE extended Size, Red, Blue, Green, Black, White (or other colors) 1
****- 6 Button ****TE extended Size, Red, Blue, Green, Black, White (or other colors)

**

**- 8 Button ****TE full Size, Red, Blue, Green, Black, White (or other colors)
****- 6 Button ****TE full Size, Red, Blue, Green, Black, White (or other colors) **

Other Sticks

**HRAP 2, 3 and EX, **

Artwork Printing and cut service**====================**Send me your favourite picture in PDF or PSD with no(!) spares for buttons, stick, turbo.

Shipping is accourding shop page

BLOG LINK

FAQ

Q : Okay, I want to this stuff, how to proceed?
A : Just go to my shop under - ArcadeForge If you`ve any problems ordering, contact me.

          Q : Does the extended size plexi cover the red plastic square?

A : Yes! There no need for the red frame installing a extended size plexi. Check out the black one. :wink:

Q : What is the difference between standard and extended sized plexi?
A : The extended size is standard size plus 7mm on each side.

Q : Does this stuff fit?
A : I`ve made over 5 prototypes to make it fit perfectly. The plexis was proved in size dozen of times. About xx TE are modded now with this plexi and no complaints.

 Q:  Is it easy for me to assemble?
 A : Jep, it`s really simple to assemble. And the good thing is that here in SRK is a tutorial about modding TE with plexi replacment.

                       Q : I'm also interested in hearing what you recommend me to do if I was to fit my own artwork.
 A : Do you know this thread especially about TE Artwork in SRK ;) ? There tons of infos about this.

Q: I don’t know where to print my artwork. Can you make this for me?
A: Jep! Please send me a PDF in the correct size with no spare holes for button, screws, stick and turbo.

[media=youtube]zFhdOoEIiQo[/media]

Hope you like this stuff,

Bencao

2

**Custom Laser Cut Plexi
==================

**This plexi is for custom arcade stick cases. Whilebuilding my arcade sticks cutting plexis with home equipment is still a bitch. So I went down to a laser cut company and let do the pros this job.

My panel sizes is 28cm x 21cm (11inch x 8.27inch).
Each one is available in 6 and 8 buttons.Thickness is 2mm.

List of custom plexis

- Custom Plexi, 28cm x 21cm, Vewlix (TE Button Layout ), 6 Button
** - Custom Plexi, 28cm x 21cm, Vewlix (TE Button Layout ), 8 Button**

**

  • Custom Plexi, 28cm x 21cm, Sega , 6 Button**
    ** - Custom Plexi, 28cm x 21cm, Sega , 8 Button**

**

  • Custom Plexi, 28cm x 21cm, Incline , 8 Button**

Perfect plexi for perfect arcade stick case ;). The corners are rounded very slightly to 2mm. This is very neat effect and only difficult to achieve with home equipment. All edges are polished. The Button holes are set 30,25mm. This guarantees that the plexi doesn’t break while inserting your buttons (especially screw ins).

**

Customization Example

**

3

Transparent Dust Washer, 2mm thick

White one, 3mm

Black one, 3mm

All Dust Washer available for Seimitsu LS32 serie and Sanwa JLF.

4

Hi Bencao. Dropping by to say that these plexi-panels look really nice, especially the black one! Any problems when installing buttons or joystick with 3mm plexi thickness?

Really looking forward to more information about custom laser cut plexis and dust washers, when can we expect more information regarding these?

5

Excellent stuff. Sent you a pm :wink:

6

No, fits fine. And no problem with the joystick shaft length. It`s only 1mm thicker than the transparent ones. Nevertheless the edges are extra rounded and was polished afterwards. I never expected that the black plexi looks so good, it was a really nice surprice :slight_smile:

I want to fill this stuff in the next two days. Check back :wink:

7

added FAQ, Video and shipping in first post.

8

i recommend DO MADCATZ SE

9

double post

10

Special Eastser Offer this week. Buy a TE Plexi together with a Dual Strike and receive a 2? discount.

**Features

**
[LIST]
[]Home Button support
[]**Configuration Mode
**
[]PS3 and PC Support
[]Firmware Update via USB
[]Dual Mod Interface compatible to UPCB piggyback connectors.
[]Imp like interface, press any buttons to switch to xbox360
[]simple to install, screw terminals to assemble your parts
[]GND lines on each screw terminal lines
[]Inverted Trigger support
[]No PS Home button support so far
[/LIST]
Check out the Dual Strike Thread!

11

Any chance you could do a VSHG plexi in the future?

subscribed

12

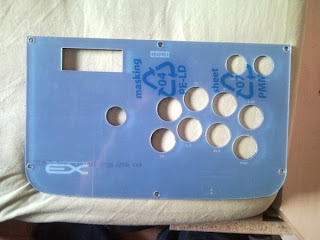

currently HRAP EX is in work.

But for doing a perfect fitting VSHG plexi I need the stick to give it a try. Perhaps someone can borrow me this stick :slight_smile: ?

13

I don’t think VSHG plexi will ever be done well. :frowning:

14

Jep, I had only one time the great honor to dual mod this great stick. Problem here is that my plexi thickness is limited to 2mm. Makrolon is possible, too. Minimum thickness is here 1mm, but this stuff will be countersinked. And polishing the makrolon edges is difficult. I’ll keep you informed.

15

Currently under work

16

PMed mate, hopefully it got to you as I have nothing in my sent box :S

Let me know if you didn’t get the PM.

17

jep, PM Received! Answer comes asap

18

Hi Im from Portugal and I buy it on Plasticos do Sado at 3,70 euros each.

19

good catch :wink: just the plexi or do they offer TE adapted plexi? :wink:

20

just the plexing, I need someone here to cut the holes :razz:
