Dual Shock 4 PadHack Thread - aka you should padhack the hfc4 pad instead

Tech Talk
381

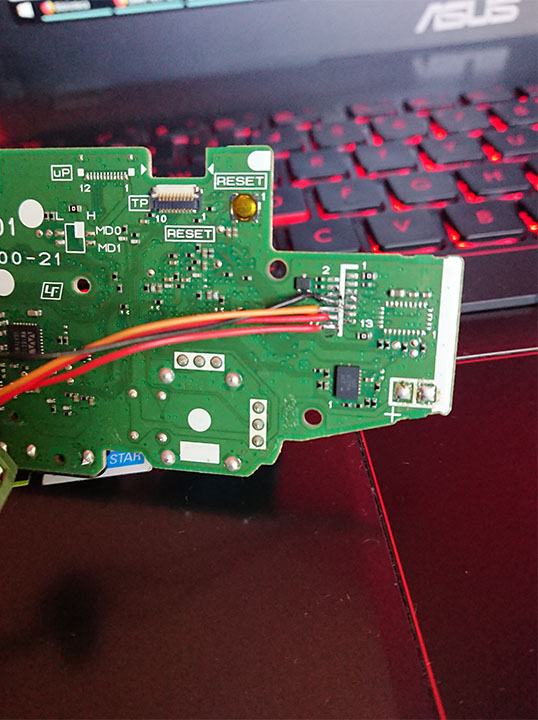

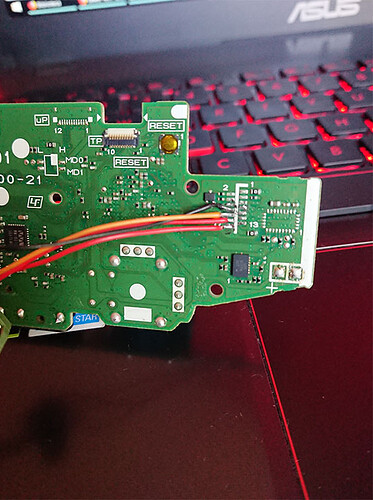

Hi, I’ve soldered the USB pins, but Windows does not recognize me. says "unknown usb device (descriptor request error …

pcb4
pcb4538×720 90.1 KB

382

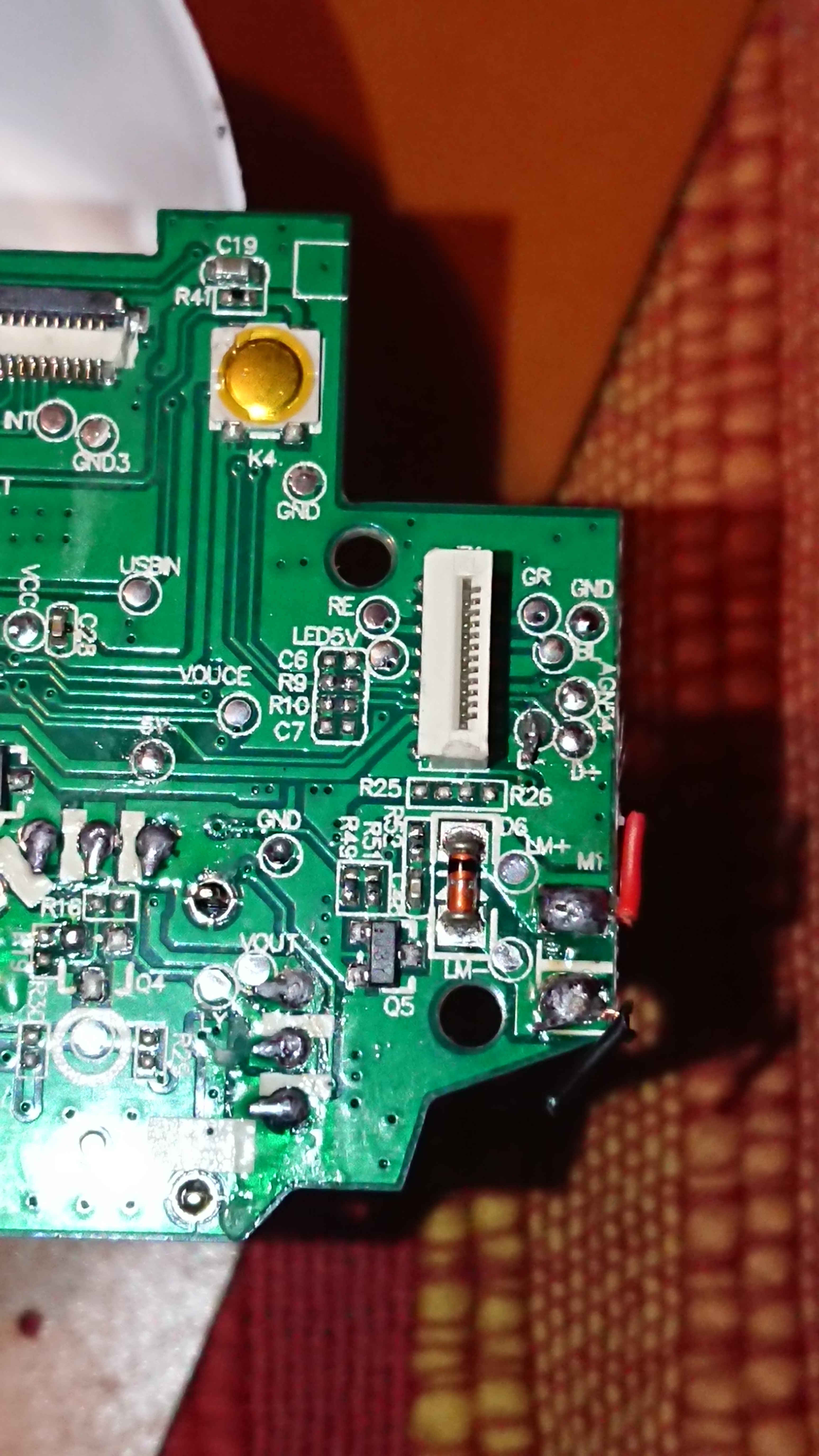

I need help, where should I solder the USB cable?

DSC_0002
DSC_00023891×2189 3.16 MB
DSC_0003
DSC_00033096×5504 3.52 MB

383

Oh its the PS3 Dual Shock.
You are actually better off with anything else. See the first post for more info.
The DS4 is one of the hardest PS4 PCBs to padhack.

That said, look at your Picture.
See the labels for the test points near that ribbon cable connector slot.

GND is where your GND goes
D- is for D-
D+ is for your D+
and 5v is your 5 volts or VCC

http://www.hobbytronics.co.uk/usb-connector-pinout

384

is a ds4 bootleg

385

Can someone guide me in a noob friendly way about L1 R1 inversion, need a step by step guide if possible…
Thnx

386

for this pcb, there isnt
