Which Terminal Block should i choose which amp would be sufficient for dual modding a http://www.slagcoin.com/joystick/pcb_diagrams/ps1_diagram9.jpg & http://img216.imageshack.us/img216/4827/madcatz2008sp4.jpg
Just finished mine yesterday. Longest part was definitely cutting and soldering the wires. I’ll post pictures later.
Also that terminal strip is a bitch with screws. I had to throw some much wrist power into it that I ripped the skin off some of my fingers.
That’s cool did the wiring today in college now all i gots to do is the terminals, buttons and daisy chaining
I’ll also post up my messy wiring later on
btw didn’t you use a screwdriver for the terminal screws ?
I need a guide like this to dual mod my 360 TE fight stick… to 360/ps3…
All right, here we go. I didn’t bother with designs or anything, it was just something I wanted to do for the usefulness. Maybe design will come later. I used a Cabela’s mini handsaw to cut the hole for the PS1 wire. I didn’t bother wiring the triggers for the 360 controller, because I only have 6 buttons on the top anyway. Start and Select are on the front. I used the remaining hole for the 360 cord to avoid cutting two holes in the wood.
I assume this is an unorthodox design. I’m also assuming that that third empty hole is for the ethernet port for Cthulhu boards. I rather liked the idea of having a flexible PS1 controller so this is better I think.
The green card you see taped to the top of the board is the button configuration for each system I play it on. I’m trying to think of creative ways to let the PCBs breathe a little more in my stick… but other than that, everything is ok and has been ok for a while. Sanwa buttons rock. Also, if you see a screw missing on the joystick, that’s because it gets in the way of the wiring harness. I need to cut the screw but I don’t have a hacksaw. I also need some washers to reduce the pressure on the nuts so they don’t shake loose while I play.

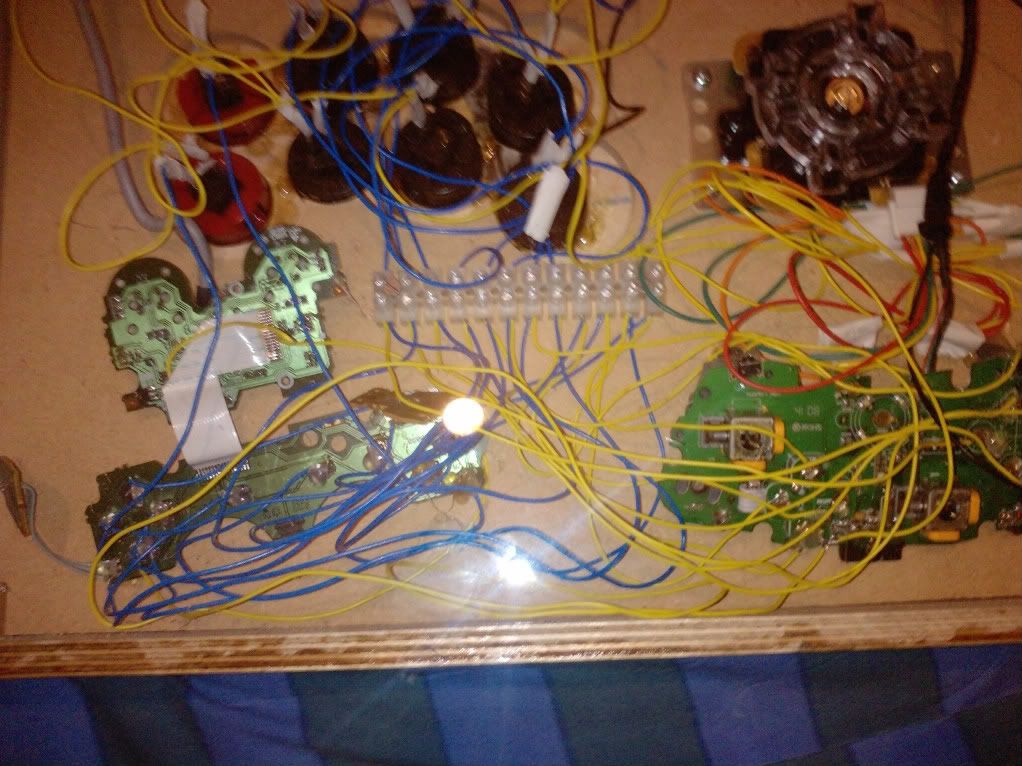

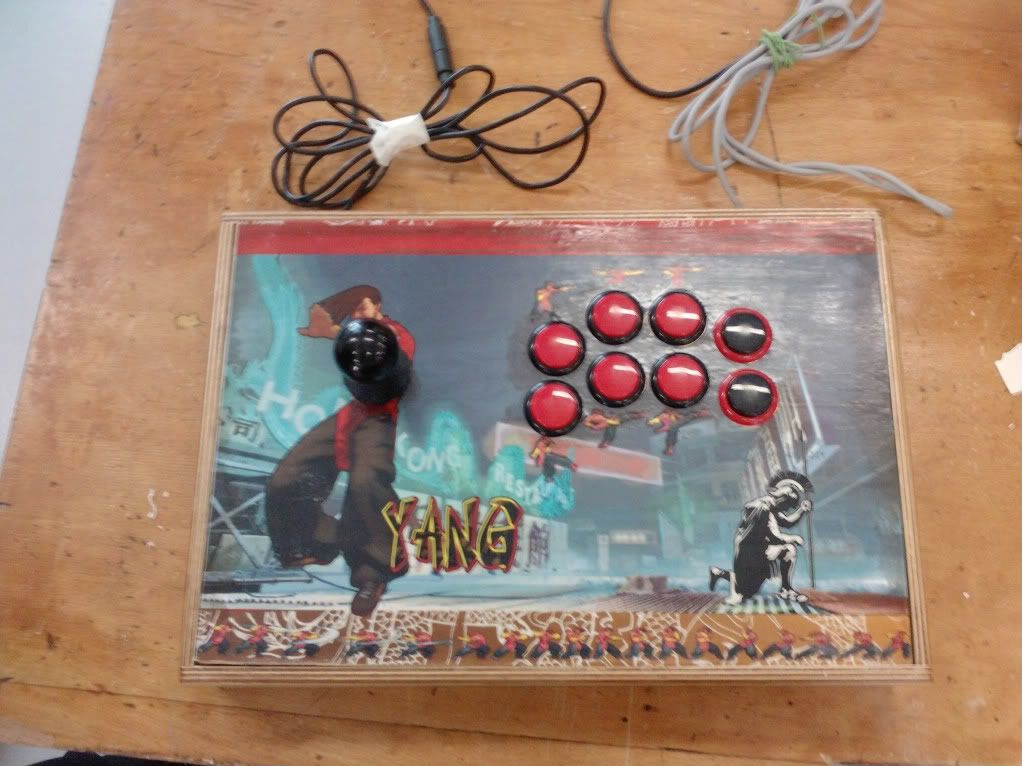

I’d like to thank many SRk members and Kyle for this, finally finished absolutley everything today here are the jolly insides courtesy of this thread and the end product
