Hey All,

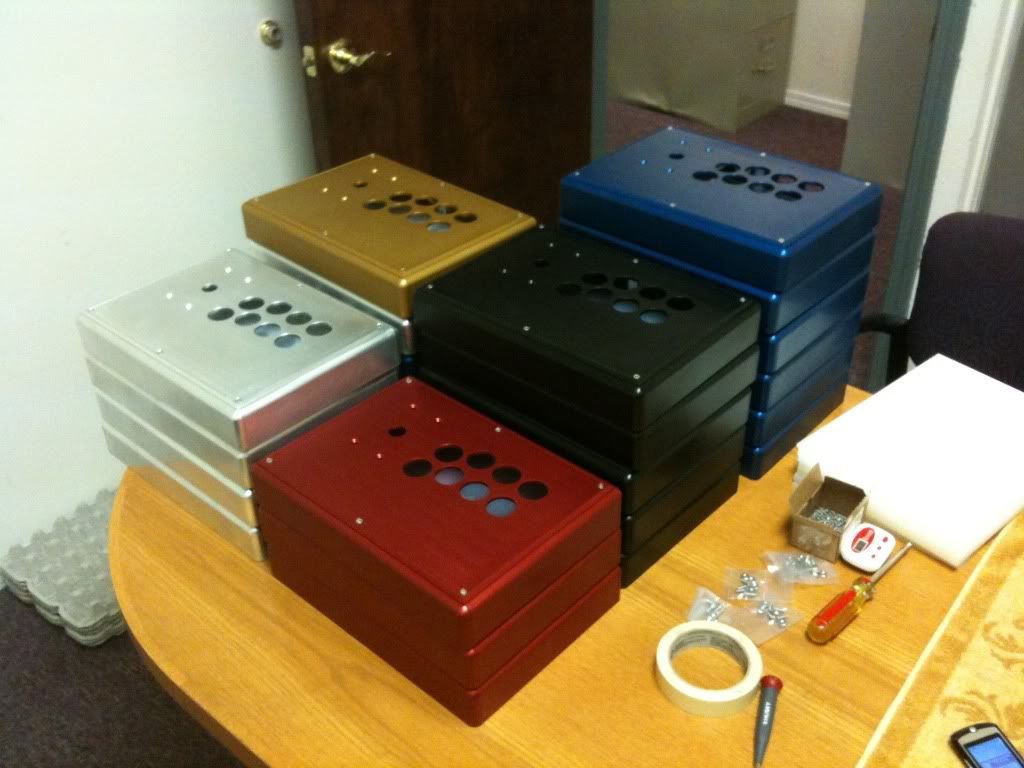

This is the 2nd version of my original case that I manufactured, except this is made out of aluminium vs acrylic.

I’ve been able to manufacture custom CNC Machined Aluminum Cases.

Specs:
Weight: 5lbs
Height: 1.875"
Length: 12.25"
Width: 9"
Material Thickness: 0.375"
Available Anodized colors: Black, Red, Gold, & Blue

http://i14.photobucket.com/albums/a338/nhtran328/IMG_0091.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_0092.jpg

**Buttons Layout Configuration Available: TE Stick Configuration (Viewlix) or Straight **

Joystick Mounting: For Sanwa JLF w/ JLF-P1 Mounting Plate & Seimitsu MS Mounting Plate
Buttons: Sanwa OBSN-30 or Seimitsu PS-14-KN
These are made specifically for Sanwa & Seimitsu Parts

[LIST]
[*]Some key items to notice, look at the edges of the box, it is rounded off no sharp edges so you won’t cut yourself.

[*]It’s made out of thick aluminium so box will not chip away over time.

[*]Because the box is anodized, it wont; scratch easily and paint won;t just “chip off”

[*]Look at the unique design and height.

[*]Box feel is very solid. since it does weigh 8lbs, playing on your lap it will not shift around.
[/LIST]

Thanks for all the interest with this Aluminum CNC Case. Want everyone to have a better understanding of what is involved in manufacturing these cases b/c there has been quite few request for custom cases.

Everyone who has a custom case/layout/design request can be accommodated, BUT, it would be too costly for you. The machines that I use is intended for mass production not one off cases, each and every time I have to make a one off case I need to spend time reprogramming my CNC machines to accommodate the request, as well as spending time to redo the CAD design of the case. Hence it becomes too costly for you, and time consuming for me.

As much as I would like to accommodate everyone?s request, I?m locking the design down to specifically these specs:

  1. Number of buttons: 8
  2. Button Layout: Viewlix & Straight
  3. Joystick Types: Sanwa JLF w/ JLF-P1 Mounting Plate & Seimitsu LS-32-01 w/ S-Mounting Plate
  4. (4) 24mm Recessed holes or (3) 24 mm holes w/ Neutrik Adapter

FAQ:

Q: When will the cases be available to purchase?
A: July 27, 2009

Q: What Colors are available to purchase?
A: Black, Red, Blue, Silver, Gold

Q: What kind of Joysticks can I mount?
A: Sanwa JLF?s w/ JLF-P1 Mounting Plate & Seimitsu LS-32 w/ S-Mounting Plate ONLY (See pictures)

Q: What kind of Buttons can I use?
A: Sanwa OBSN-30 or Seimitsu PS-14-KN ONLY ? No Snap ins

Q: What kind of Button configuration layout do you offer?
A: Viewlix (Madcatz TE Style)
A: Straight

Q: Can I put in my own custom artwork?
A: Yes, dimension for print size should be 29.3cm x 20.4 cm

Q: Is the plexi-glass top cover flush mounted?
A: No, see pictures

Q: Does the bottom have a cover?
A: Yes, see pictures

Q: Does the bottom have rubber feet?
A: No, but you can purchase and add it in yourself

Q: Can I add a Neutrik Adapter?
A: Yes, see pictures

Q: What size for the 4 holes for Start/Select/Sync?
A: 24mm Seimitsu Screw in ONLY

Q: Will the 4 holes be flush mounted or recessed in?
A: Yes

Q: Will Arthong?s plexiglass cover fit these sticks?
A: Maybe, I?ll be working something out w/ Art.

Entire Album with all pictures: Pictures by nhtran328 - Photobucket

YouTube Video of various Productions:
YouTube - nhtran328

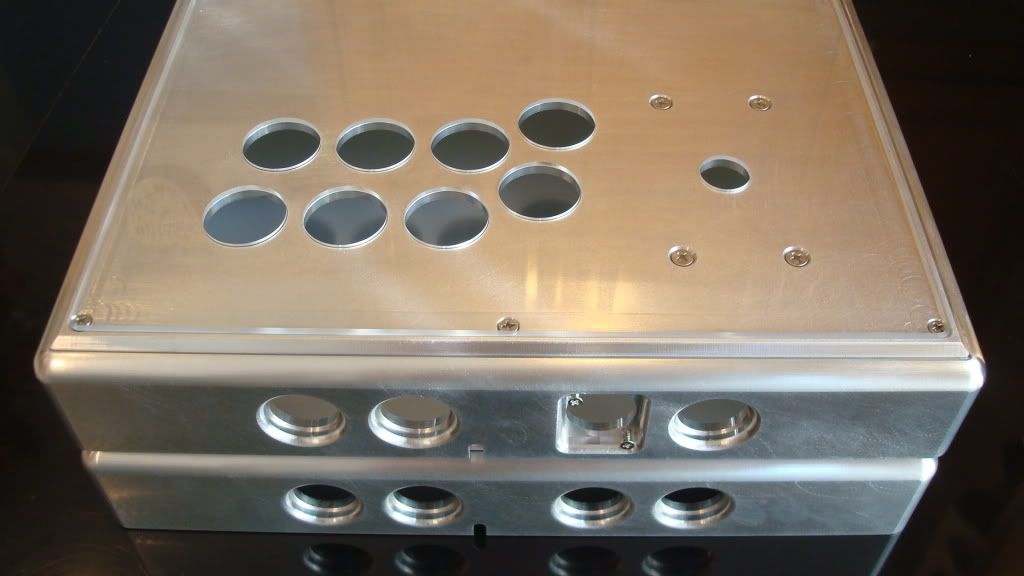

Viewlix:

http://i14.photobucket.com/albums/a338/nhtran328/DSC02061.jpg

http://i14.photobucket.com/albums/a338/nhtran328/DSC02059.jpg

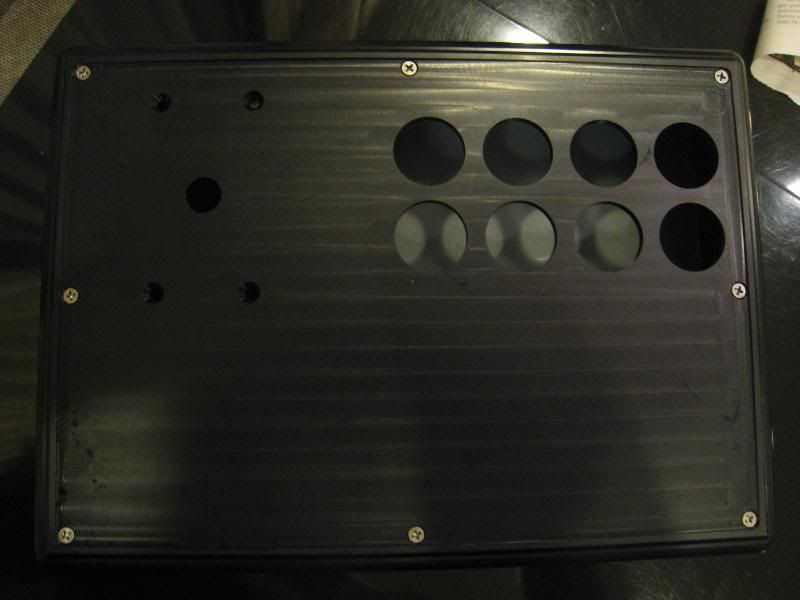

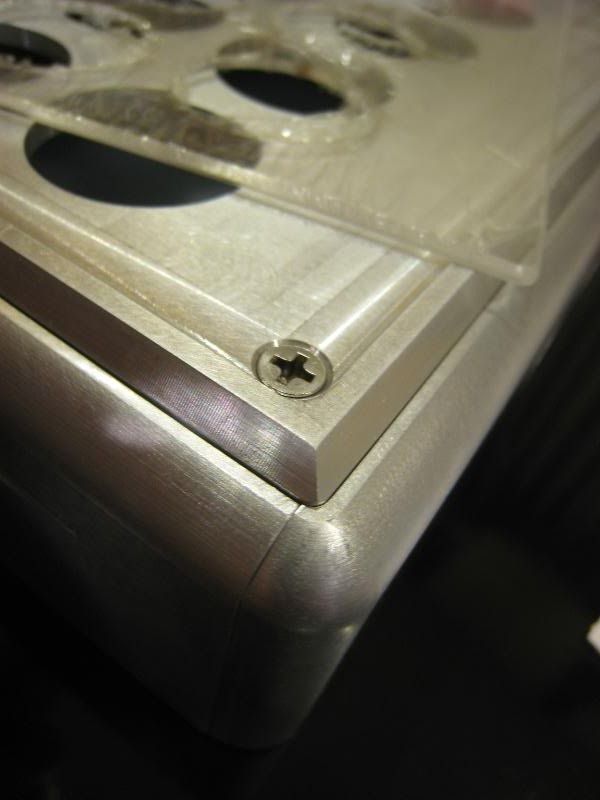

**Straight: **

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4362.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4371.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4366.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4384-1.jpg

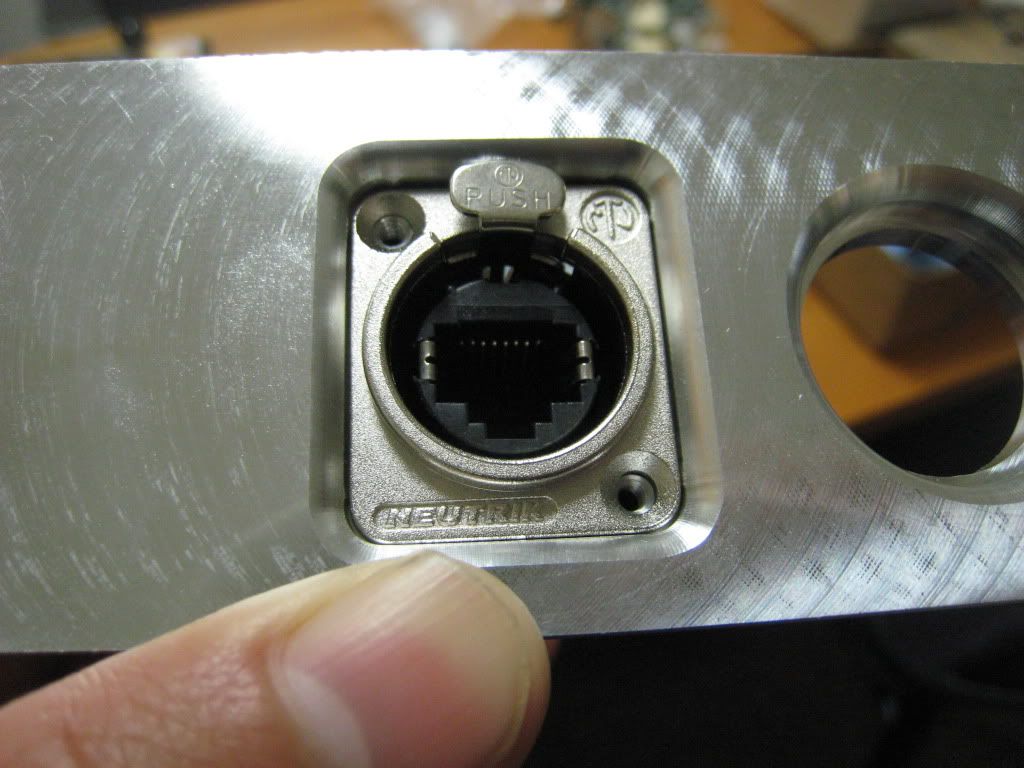

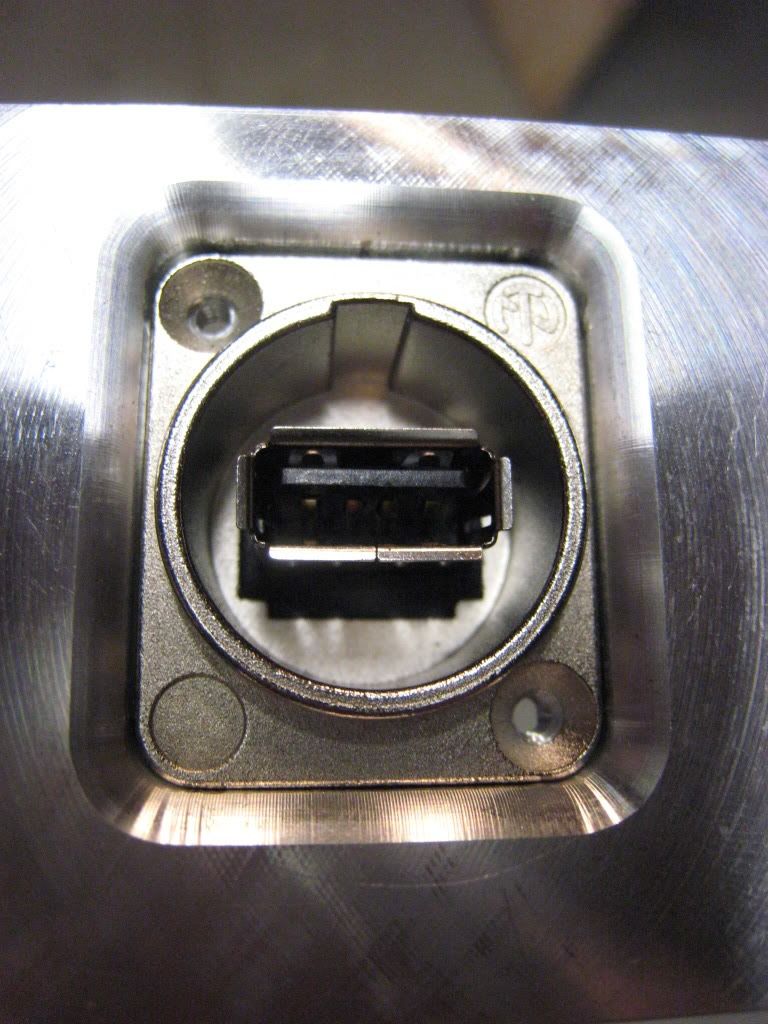

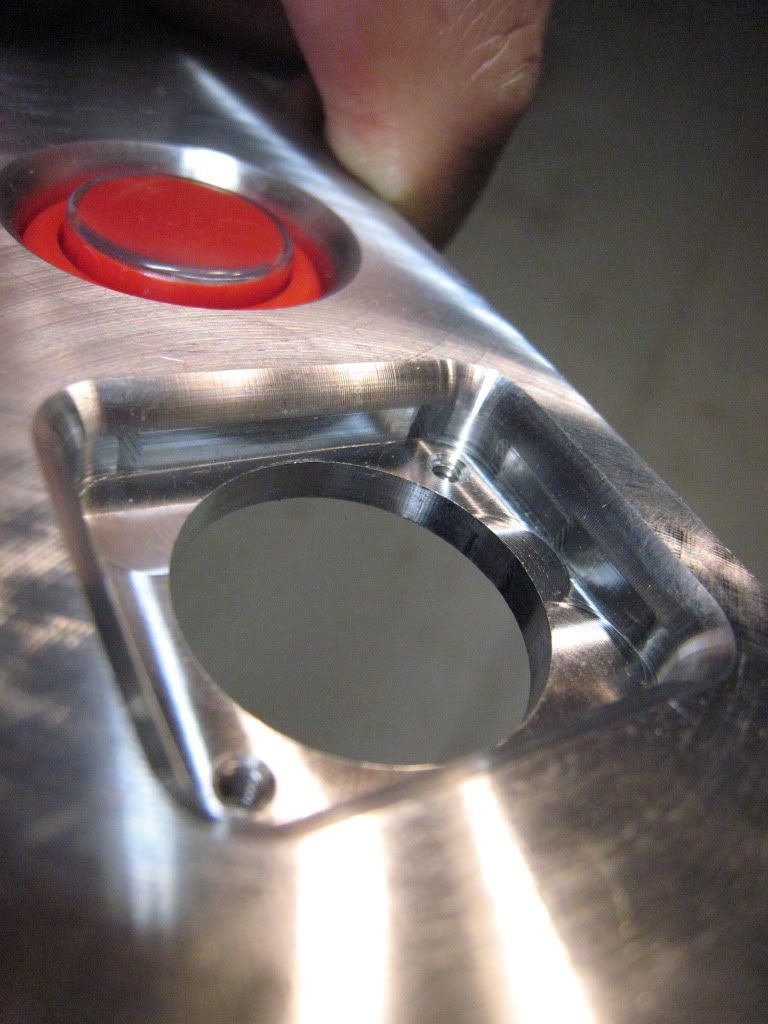

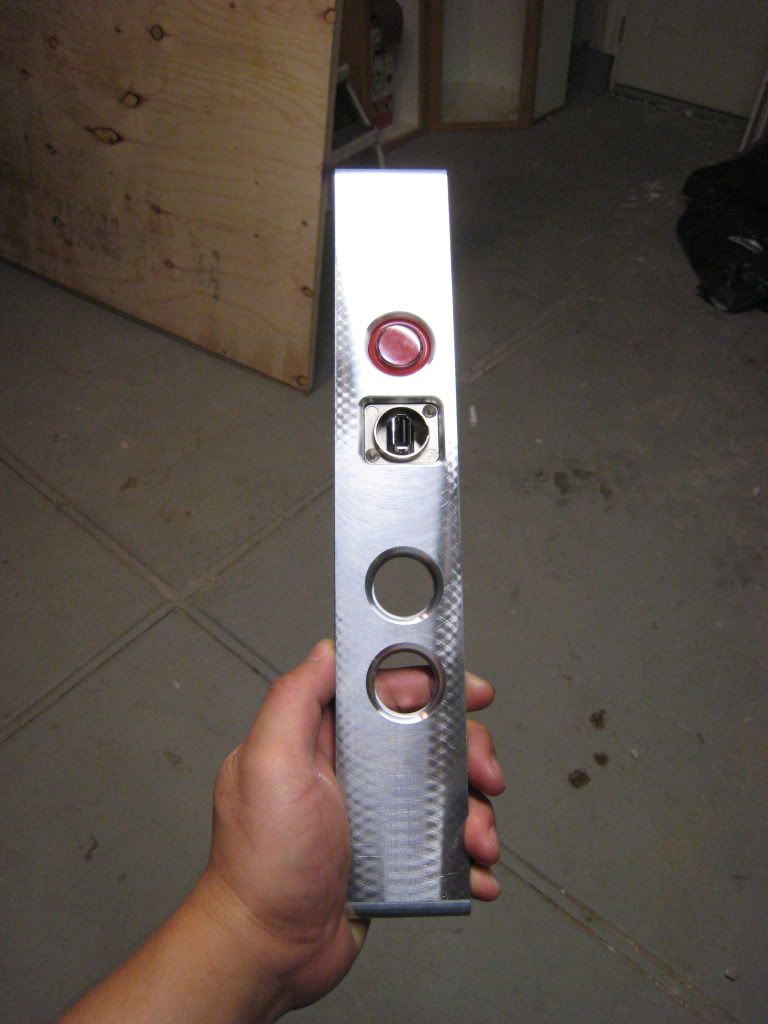

24mm holes & Neutrik Adapter

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4630.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4631.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4643.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4634.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4629.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4636.jpg

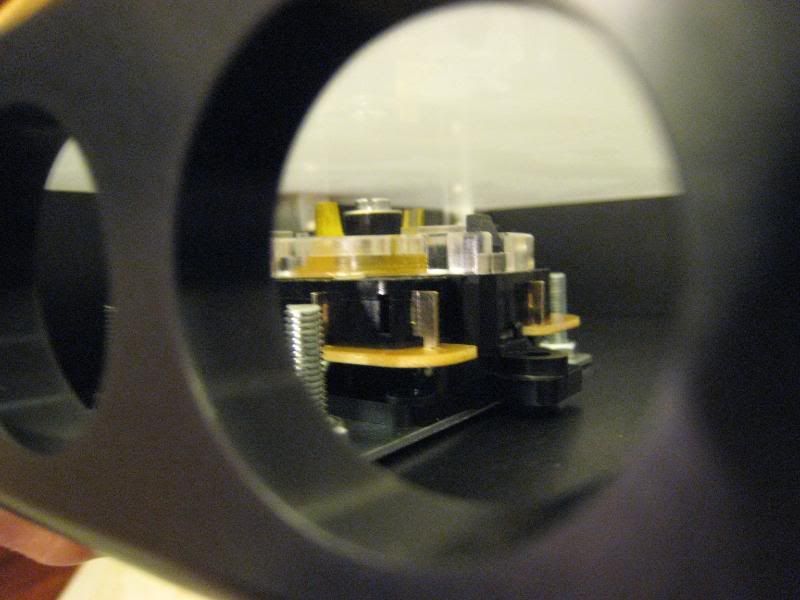

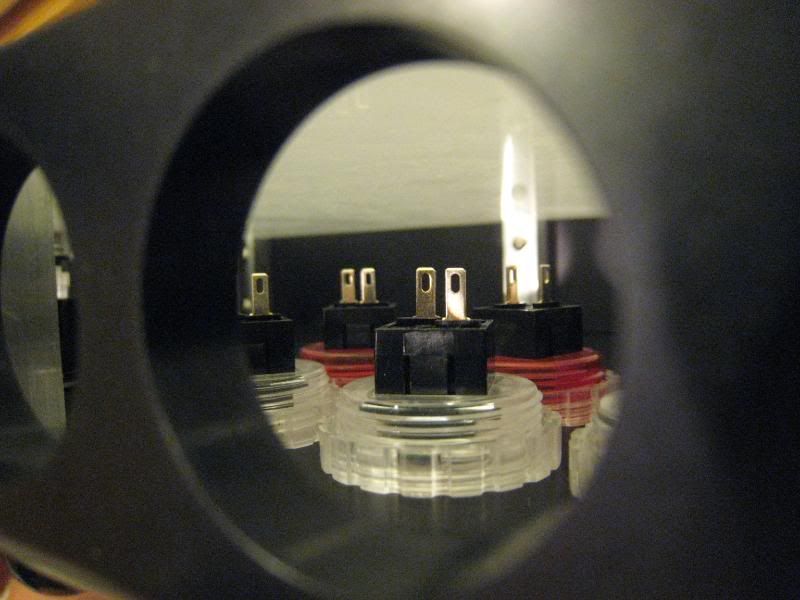

Shots inside the box w/ bottom cover on:

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4436.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4435.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4437.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4434.jpg

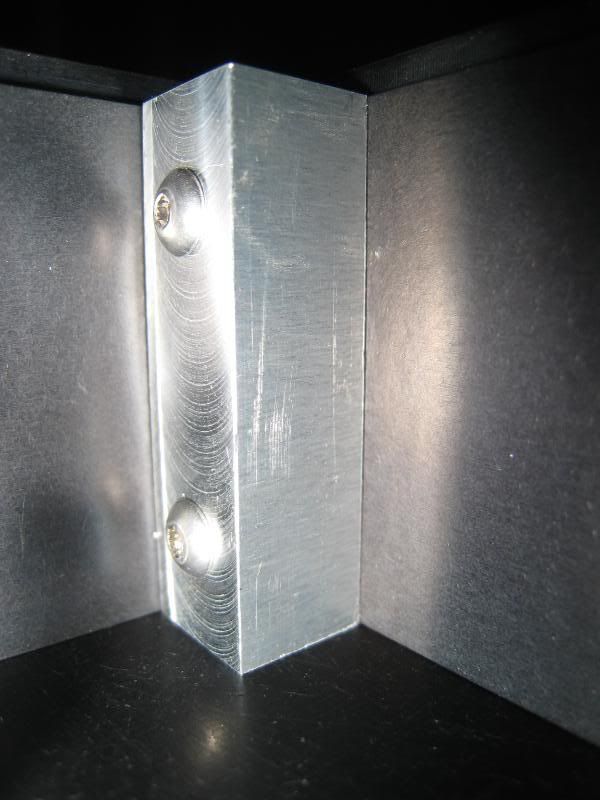

**Inside of the case: **

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4397.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4400.jpg

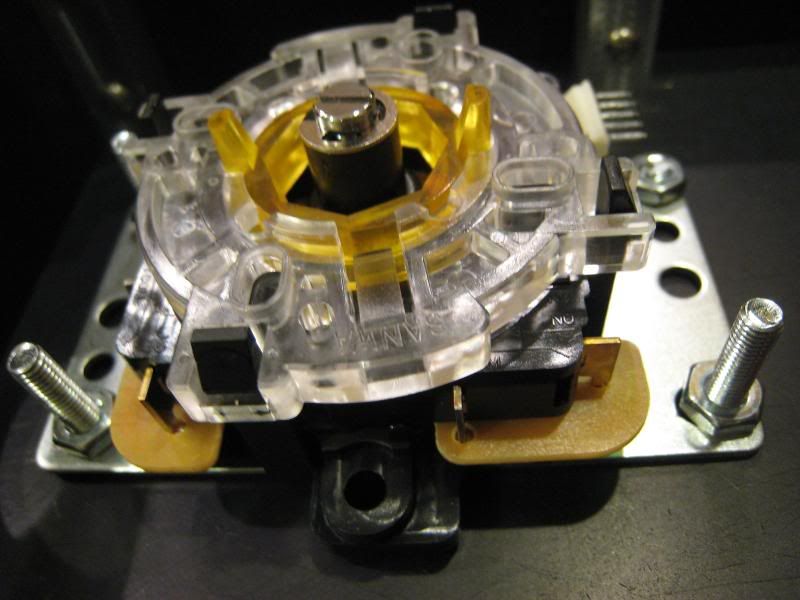

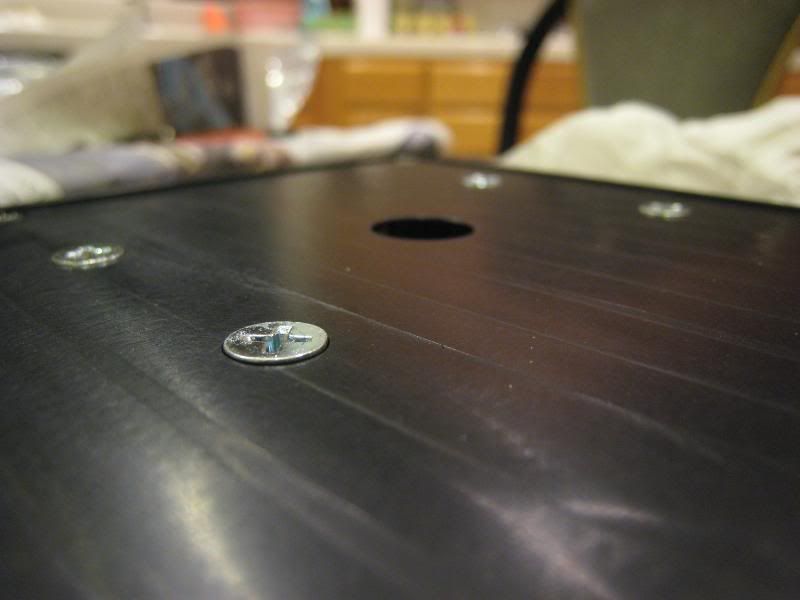

Mounting the Joystick:

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4402.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4403.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4404.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4410.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4393.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4411.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4413.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4405.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4420.jpg

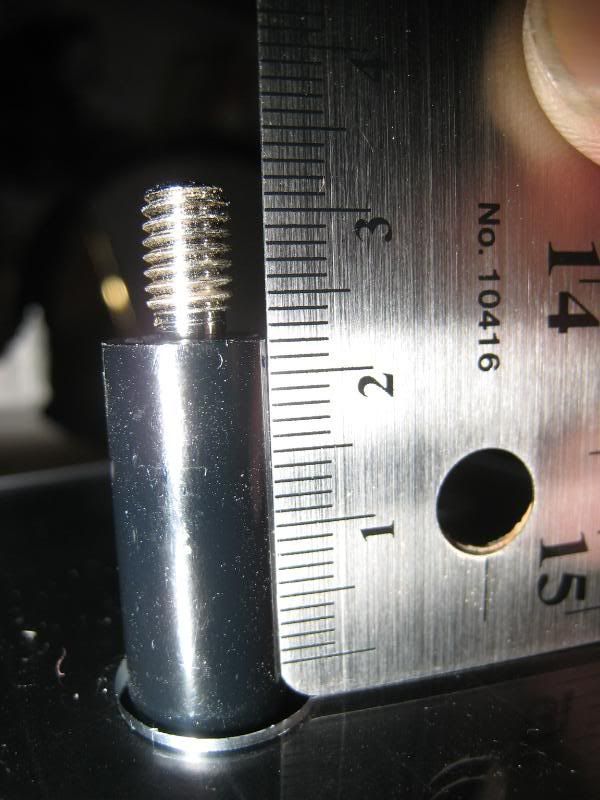

Joystick Height with plexi cover:

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4423.jpg

Joystick Height w/out plexi cover:

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4416.jpg

Buttons installation:

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4431.jpg

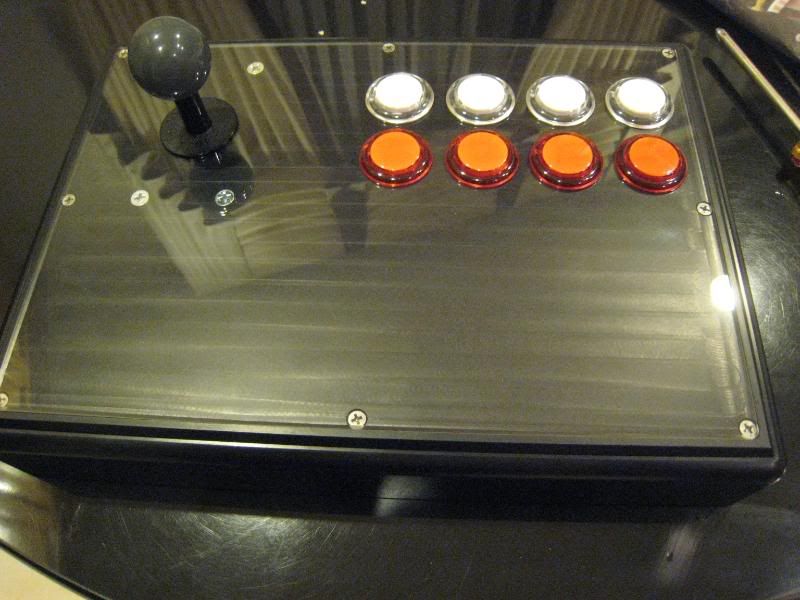

Completed stick w/out custom art

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4425.jpg

Completed stick with custom art:

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4428.jpg

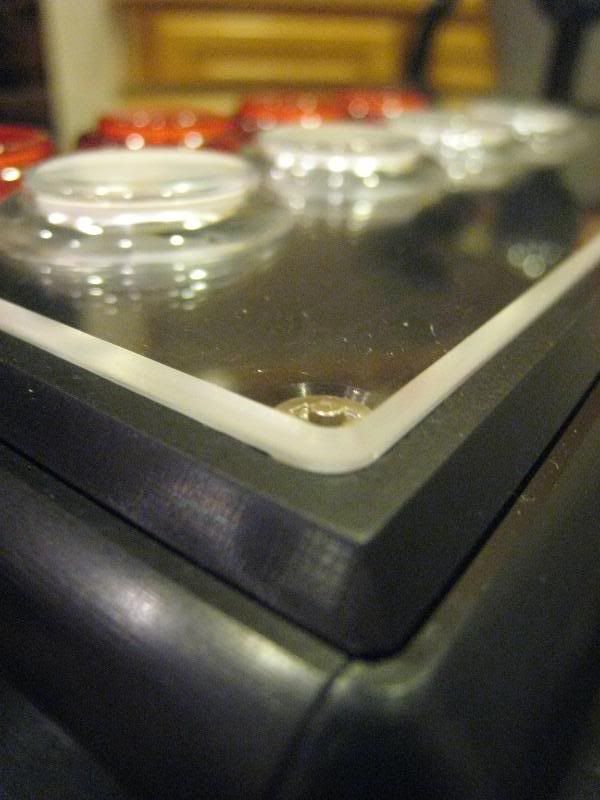

Shots of top plexiglass bevel:

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4426.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4427.jpg

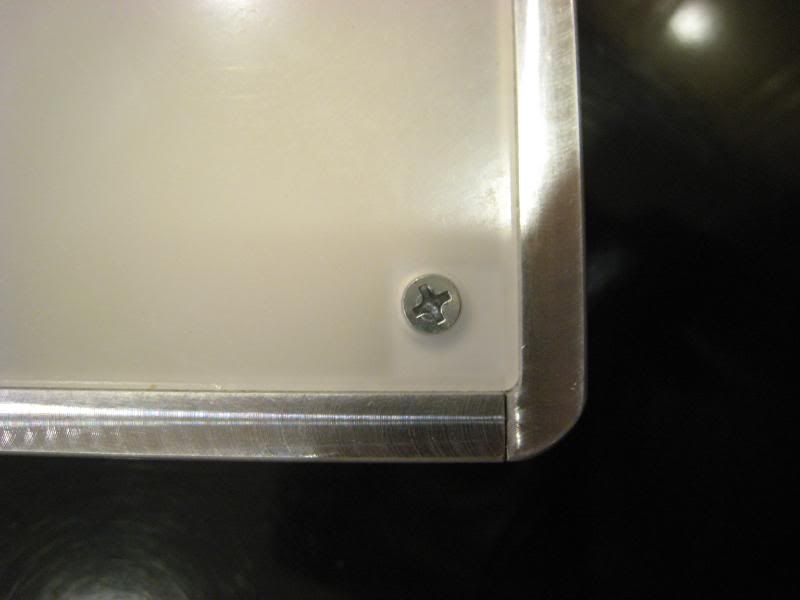

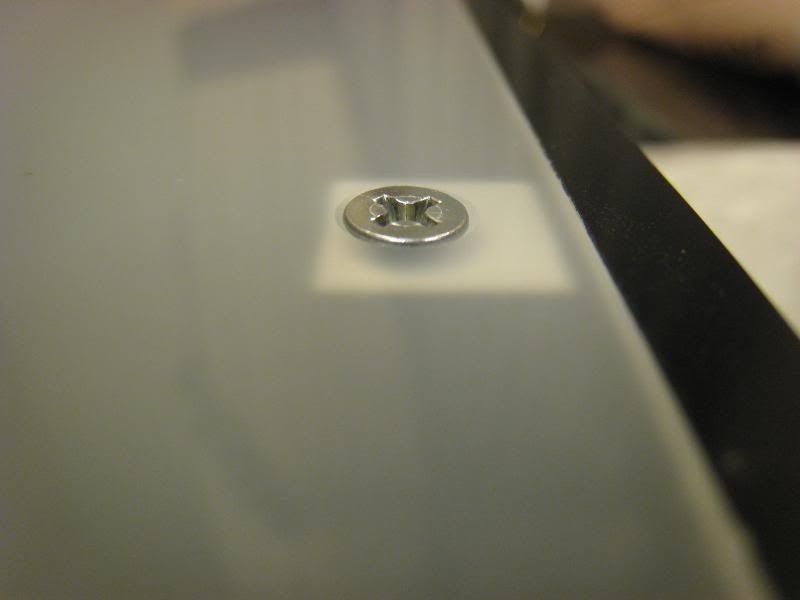

Bottom of case:

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4389.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4395.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4368.jpg

Pictures of Machine Shop & Machine

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4610-1.jpg

http://i14.photobucket.com/albums/a338/nhtran328/IMG_4602.jpg

2

These are amazing looking cases. Completely different from what most other people sell!

3

Thats a very clean design. I would definately pick one up. To bad 09 members gotta wait 6 months and have 50 posts to sell. Lemme know though whats up with them cause I’m very interested.

4

That looks really cool.
I remember your Cases before; non-metal.

5

yup, they were acrylic/plexiglass.

Were very tall in height and did not work for Sanwa or JLF Parts. Ive learned my mistakes.

6

They were cool though.
Was like a puzzle to put Case together; jig-saw.

Did you ever create a prototype for Japanese Case in Acrylic?

7

nope just went straight to aluminium

8

Really nice looking case there, and a great solid build… don’t think i have the money for the case though…

9

Oh man, if this had Seimitsu support and Astro City/Viewlix layout, I would buy one in an heartbeat.

10

NHTRAN328 say he can do Six or Eight Button.
Straight, Curved and even Mad Catz Street Fighter IV Arcade FightStick Layout.

So since he can do Mad Catz Layout, which is Vewlix with an Eighth Button, I think it be no problem for NHTRAN328 to not cut the eighth hole for you.

11

slightly off topic… does he do other custom work?

i need a case done for my stereo stuff

-joe

12

that is sexy. wish i needed another case for something…

13

This is correct, I made a mistake by not just making the Mad Catz layout from the get go. But I can mfg it and due to the amount of PM’s i think i’m going to narrow it down to just layout configuration which is the most popular right now being viewlix / Madcatz/TE

14

very impressive build

15

Tough to tell from the pics, is the top sunk down so you can put a plexi top on it, or is it all flush with that border you are showing?

16

Really nice work - I think I like these even more than the all acrylic versions

17

Got any pics of one next to lets say a TE/SE stick or some other custom stick? got any pics of the bottom inside of it also?

18

FreezerB, NHTRAN328 says fit Seimitsu and available Vewlix.
Looks like you will be buying one!
Laugh.

But this is only preview.
I think it is until very end of August that NHTRAN328 be able to sell directly on SRK.

19

Top is sunk down so that you cna put a plexi on top so everything is flush with the border.

Thanks

I’ll post a bottom of the stick with the joystick and buttons installed tonite. TE/SE layout no, b/c I manufactured these 2 for myself and i like them straight. However, I already have some cad designs to mfg the TE layout. I won;t produce them until i get confirmed interested or else I’d waste time and money manufacturing cases

20

Thanks JDM. That is correct, this is just a preview until i can sell on SRK.

I will setup a yahoo store to get things going before then.
