Check Out My New Arcade Stick! (No Image Quoting)

Tech Talk
1401

b15sdm, the purple on that bison stick is GDLK, many many props to you!!!

1402

With regards to the ball top, I got a few of them from ebay from a guy whos sellers name is something like NIKING.NIKING you may have to do a search. These balls tops dont appear to be genuine seimituā€™s, i may be wrong. But the quality is sooo much better! The ball is like crystal clear with large bubbles, whereas the Seimtisu ones are abit cloudy and dont look as shiney either. They are the exact same size aswell.

1403

Beautiful paintjob, b15sdm. Kudos! :slight_smile:

1404

My last stick/project beautifully executed by CyborgRJ
Hope you guys like it.

Parts:
**Joystick: **Seimitsu LS-40-01
**Buttons: **Seimitsu PS-14-KN (30mm) e PS-14-DN (24mm)
**PCB: ** Generic PS3 / PS2 controller PCB

http://img30.imageshack.us/img30/7152/03092009213.jpg

http://img249.imageshack.us/img249/5954/03092009214.jpg

http://img168.imageshack.us/img168/1466/03092009215.jpg

1405

^ I like it, the shape reminds me of a Byrdo stick.

:tup:

1406

heres my stick, print got messed up its missing a lot of details on blanka but ill reprint it soon.

http://evil98.insanity-asylum.com/controller/blankastick.jpg

1407

My updated Collection

First Sega HSS-0130 with Blast City panel wired for 360. been considering selling thisā€¦ Even though I just got it.
Next Steve Tren Ebony w/ Sanwa Flash
Next MC TE Art hongs Plexi , Sanwa Flash, OBSC-RGā€™
Next MC Femme Fatale 156 0f 660

1408

I recently finished my first stick.

http://akegata.se/joystick.jpg

http://akegata.se/joystick_front.jpg

http://akegata.se/joystick_underside.jpg

The cheap buttons I chose for start and select really suck, and the layout isnā€™t really optimal for my hands, but since I had nothing to compare it to I had to pick what I thought would be best.
Other than that, Iā€™m pretty pleased with my work. :slight_smile:

1409

I love that art, is there any way you can post it?

1410

Sure. I just found it on google and stole it from whoever made it (if I knew who to thank for it, I would).
Anyway, here it is:

Yes, it really is too low rez to fill a stick, but it looks ok, as long as you donā€™t look too closely. :slight_smile:

1411

Really cool artwork, looks awesome. Might I suggest you swap the outer parts of the buttons so theyre black/white, might add to the theme (would look like the characters eyes a bit). Just a thought :stuck_out_tongue:

1412

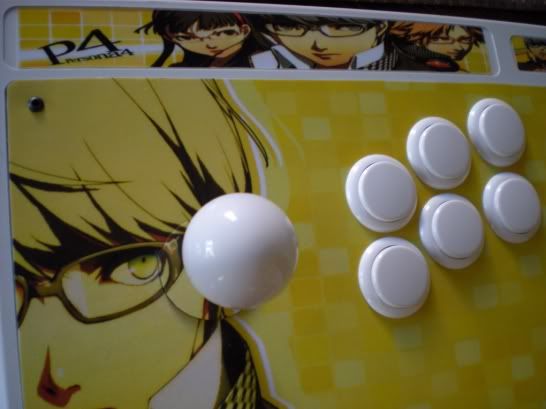

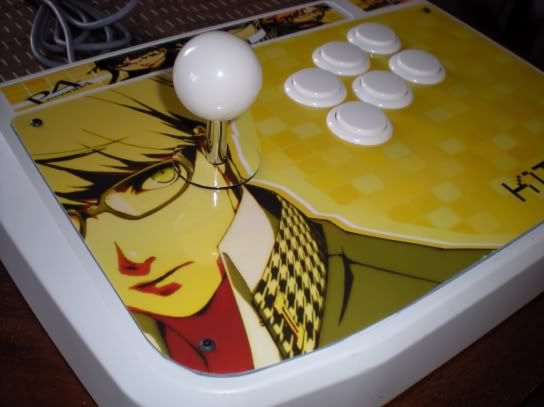

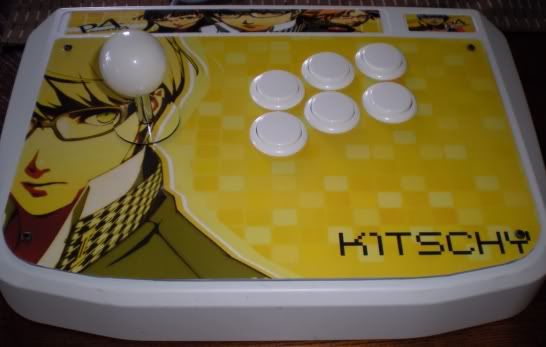

In honor of the Sega Dreamcast 10th anniversary. Just finished it on the afternoon of 09-09-09 and played fighters and shmups all night long.

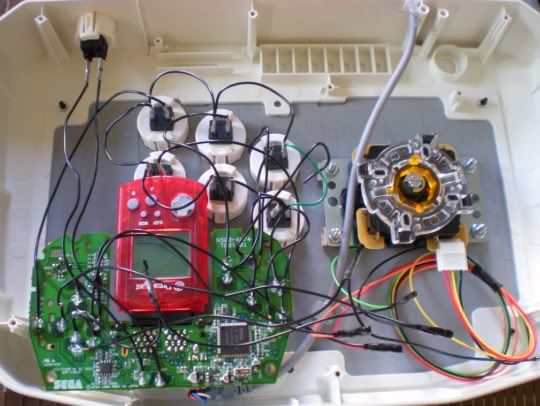

The case is from some crappy Sega Saturn arcade stick. I used my fav Mayflash button layout, Dreamcast padhack, Sanwa JLF stick and OSBN-30 buttons, along with a Persona 4 lamilabel I had left over from a few weeks back.

http://i94.photobucket.com/albums/l118/cyberpunk_scholar/P4-stick01.jpg

http://i94.photobucket.com/albums/l118/cyberpunk_scholar/P4-stick02.jpg

http://i94.photobucket.com/albums/l118/cyberpunk_scholar/P4-stick03.jpg

http://i94.photobucket.com/albums/l118/cyberpunk_scholar/P4-stick04.jpg

1413

very nice collection

1414

http://img33.imageshack.us/img33/8391/mayflash.jpg

http://img38.imageshack.us/img38/8414/mayflash6.jpg

http://img15.imageshack.us/img15/6909/mayflash3.jpg

Oldschool NeoGeo Mayflash :rock:

1415

I finally finished wiring up my last stick:

SteveTren Cherry Wood Dovetail Case - Wireless PS3

  • PS3 Sixaxis PCB
  • ShinJNā€™s AXISdapter
  • Sanwa JLF
  • Sanwa OBSN-30 (White) x6
  • Sanwa OBSF-24 (White) x3

Top: I havenā€™t decided what art I want to put on it yet so I just printed off Xavier Garciaā€™s badass Frog from Chrono Trigger as a placeholder until then.

Bottom: Nothing special, itā€™s about as clean a wiring job as Iā€™m capable of.

Finally, the family photo:

From Top/Left to Bottom/Right:

  • SFAC w/iL Eurostick & Competition pushbuttons, P1 imprinted Black for START.
  • SFAC w/iL Eurostick & Happ Concave Pushbuttons, P2 imprinted Black for START.
  • Namco PS1 w/Modified Sanwa JLF and 6x OBSF-30 (Dark Hai)
  • PS3 SF4 SE w/Sanwa JLF, 6x OBSF-30 (White), 2x OBSF-30 (Dark Hai)
  • PS3 SF4 TE w/Arthong plexi & Vewlix art, MC Cthulhu, RJ45 mod for PS/GC support, Neutrik RJ45 and USB jacks installed in cord storage compartment.
  • PS3 Wireless SteveTren custom (detailed above)
1416

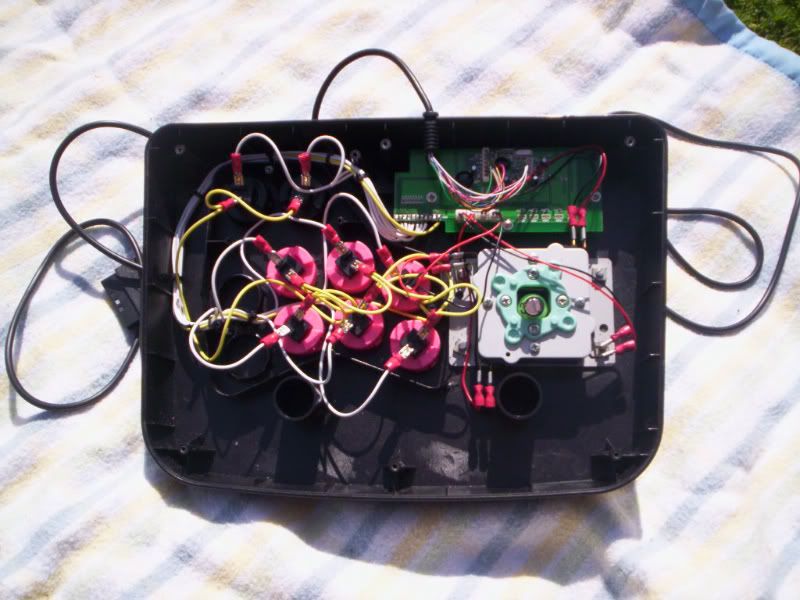

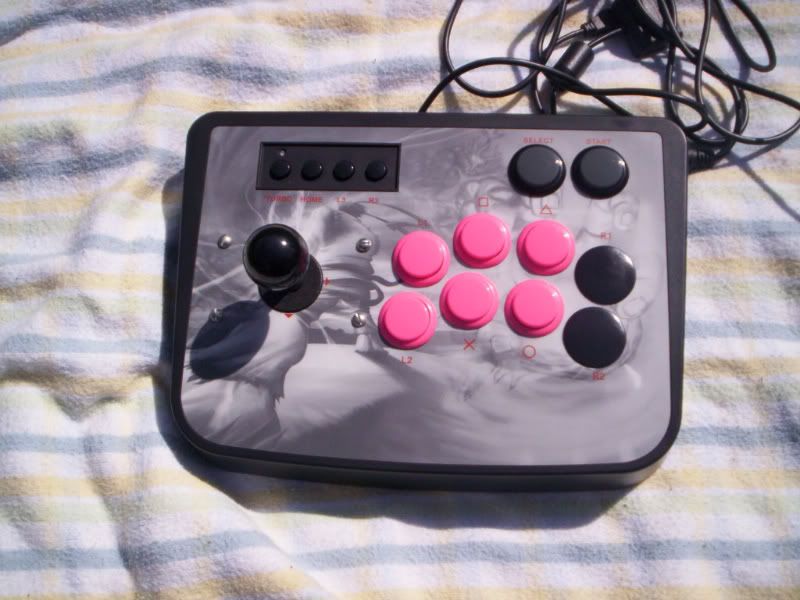

Honcam mod (basically a mayflash in a different case)

LS-32 & OBSF-30ā€™s

http://i290.photobucket.com/albums/ll280/Glennicio/100_2886.jpg

http://i290.photobucket.com/albums/ll280/Glennicio/100_2887.jpg

http://i290.photobucket.com/albums/ll280/Glennicio/100_2885.jpg

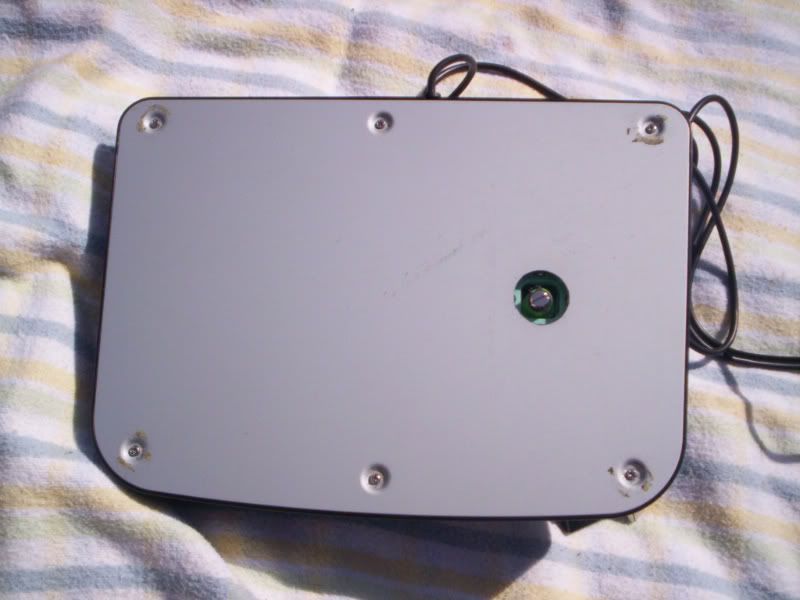

I ran into one problem modding this stick, it was easily fixed, but sucks that it was so close to being perfectly moddable but didnā€™t quite make itā€¦ still gotta get some rubber feet.

http://i290.photobucket.com/albums/ll280/Glennicio/100_2888.jpg

1417

Kazujiro, on the wireless ps3 chrono trigger case, did you use hardboard underneath the plexiglass? Or what kind of wood is it?

1418

http://img143.imageshack.us/img143/3726/patapon3superfinalwarbr.png

Vectorized result, you should be able to stretch it out to whatever you want.

1419

First, donā€™t quote images. Second, thatā€™s a PNG, and Iā€™m pretty sure itā€™s not a vector graphic.

1420

nic stick. ???
