Check Out My New Arcade Stick! (No Image Quoting)

[System_1]

That is an extremely pleasant and well-thought out design. I like it a lot! I didn’t even notice that the dust cover was a bit rough around the edges until I read about it. How did you color the shaft red, with paint? If so, and the stick were actually used, the paint would probably start to flake and/or wipe off from HARDCORE SWEATING. A clear coat or three might help with that, though. Otherwise, that’s a great stick!

Haha! I actually had some dupli-color spray left over and I was considering painting one of the black dust washers with it but I decided it would look obvious it was painted and probably rub off on the art after wear and tear/useage. I bought the shaft cover from Akihabara shop and I watched that video where you can bore out some of the inside of the shaft cover to fit on the JLF stick. You know it’s weird that the buttons and the shaft cover and the balltop are all from seimitsu and are all considered “red” but they are like different variations of the color. I wish the buttons were a nice rich red like the balltop is. They look like they have a hint of orange and I hate it!

[ayashi]

Lobo stick kill everyone!

Amazing

[kte03]

That Lobo stick is a beaut :tup: I’ve always wanted Lobo in a fighting game, after playing with him on MUGEN xD

[Thabounce33]

For some odd reason, “Rick Ross” reminds me of “Forum Viewer”, lol.
You’re a funny dude man…

Seriously this guy picks a name like “Rick Ross” then writes " I Hate Black People" on it…LMFAO the pure stupidity amazes me sometimes, least i got a laugh this mornin…smells like Forumviewer all the way.:lame:

[Illustrator76]

Hey,

here’s the next custom stick called “Lobo Stick”

Snip

Okay, the stick has an UPCB with a xbox360 piggyback. Long time ago that I’m seeing a UPCB in a stick

I’ve connected a usb button select directly to the stick. Out of the box this stick supports

• xbox1 : press LP and LK while connecting the stick
• xbox360 : press HP and HK while connecting the stick
• PS3 : Default

Update of the stick firmware is possible via bootloader pressing start and select.

When changing the cable this stick could support all kind of other consoles like Playstation 1 and 2, Gamecube, Wii, Sega Master, NES, SNES and many many more. This makes the stick modular and updateable.

@Toodles : Your upcb is still one of the best.

Sanwa Stick unit and Seimtsu Buttons, mirror finish and great artwork by raiod completes this sticks.

Bencao

That thing looks awesome man. I LOVE that mirror finish!

[Kyle]

Behold the Ascii Optical Namco!

http://img694.imageshack.us/img694/7250/img1660tn.jpg

Made from a brand new Namco stick for extra awesomeness.

http://img685.imageshack.us/img685/253/img1661tn.jpg

I swear, the entire time I was doing this I knew I was going to screw it up. It ended up coming out perfectly. I’ll throw together a tutorial when I have time. I used both of these heavily for reference.

http://www.kowal.itcom.pl/ArcadeParts_pliki/modNAMCOen.htm
http://srktt.com/namco

[meus]

Behold the Ascii Optical Namco!

Made from a brand new Namco stick for extra awesomeness.

I swear, the entire time I was doing this I knew I was going to screw it up. It ended up coming out perfectly. I’ll throw together a tutorial when I have time. I used both of these heavily for reference.

http://www.kowal.itcom.pl/ArcadeParts_pliki/modNAMCOen.htm
http://srktt.com/namco

cool nice job Kyle. I knew u would keep the optical stick awesome. On the namco i noticed u had to solder extra wire for the v-5 is that right.

[Kyle]

cool nice job Kyle. I knew u would keep the optical stick awesome. On the namco i noticed u had to solder extra wire for the v-5 is that right.

Yep the extra wire is 3.3v to power the Ascii stick. Someone was cool enough to point it out in the Namco thread. I thought I was going to have to use a different PCB.

[meus]

cool now i can to mines for one that i use sweet.

[skyblue1106]

i barely ever post my sticks here but felt this may be worth posting my byrdo stick

[IMG]http://i861.photobucket.com/albums/ab178/ibeatu/ragna1.jpg
[IMG]http://i861.photobucket.com/albums/ab178/ibeatu/comparison.jpg
[IMG]http://i861.photobucket.com/albums/ab178/ibeatu/ragna2.jpg
[IMG]http://i861.photobucket.com/albums/ab178/ibeatu/ragna4.jpg
[IMG]http://i861.photobucket.com/albums/ab178/ibeatu/ragna3.jpg

more better pics on his site
http://www.byrdo.org/Album186.htm

thats very nice Byrdo stick you got. I LOVE IT. :rock::rock::rock::rock::rock::rock::rock:

[pkthepanda]

byrdo rulzzzz :wow:

[JMro]

Awesome job on the QCF case!

I love seeing what people are able to do with QCF’s cases, especially, in this case, the unfinished MDF variety.

I know that that paintjob was probably a strenuous affair, over several days I’m guessing.

Way to stick it out, MDF is a bot full of bitches to paint up, and takes mad patience. The stick looks hot as fire… I really like the Happ + Blast city layout. East meets west huh?

More like weeks! I don’t have a garage or anything, so I had to paint outside. It gets so dark here by 5 that I really only painted on the weekends. Its got 3 coats of primer and 3 coats of red with about a week in between most of the coats. I still want to do some more red and mirror it up a bit, but its too cold now, and I can’t spray paint if it is below 10C.

Thanks!

[DatterBoy]

I’ve had a few folks ask so I’ve uploaded a vid of the ultra slim.

[media=youtube]Pa6sDkW_IOk&feature=email"[/media]

[B-boy_Tekken]

I’ve had a few folks ask so I’ve uploaded a vid of the ultra slim.

[media=youtube]Pa6sDkW_IOk&feature=email"[/media]

Does that thing have a plexi?

[DatterBoy]

Yes, on top and bottom. 1/16 inch.

[ericleroi]

I’ve had a few folks ask so I’ve uploaded a vid of the ultra slim.

Looks even better live! Fantastic effort.

[souji5]

Looks even better live! Fantastic effort.

I second that!

@B15SDM

Couldn’t forget about the compact stick bro, I’m really diggin the artwork. The theme reminds me a lot of HD Remix which is a big plus. Whats your ggpo handle ?

[psychochronic]

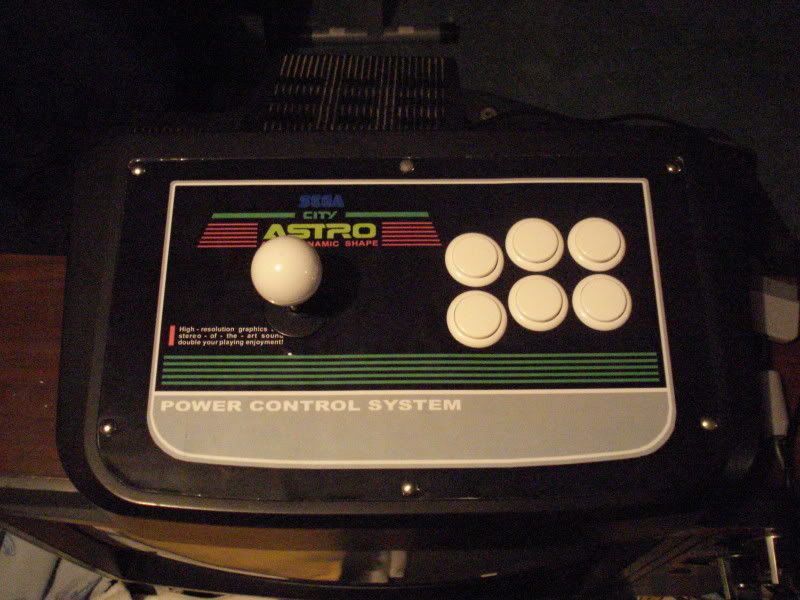

Astro City Dual-Modded Anniversary Stick (PS2/360):

http://i86.photobucket.com/albums/k104/psychochronic/Stick%20Creations/DSC02720.jpg

Thanks to the following:
-DookieMonster for the artwork
-Vrus for the Tekken 5 Anniversary stick
-Mtran66 for the PSX DualShock A PCB
-Meus for the 360 PCB plus the Sanwa JLF
-Flat Top for the Sanwa buttons

:tup:

[nin-jay]

It looks like it’s done on black acrylic.

Black opaque acrylic gives it the high gloss mirror finish

[brighenne]

Just picked these up today. Not quite sure what I’m going to do with them yet…

http://img191.imageshack.us/img191/3049/img00071200912141322.jpg
