Brook PS3/PS4 "Fightboard" PCB Thread

wazwuz · December 29, 2015, 4:14pm

I put led inside the button, and wire it up to the qd. When the button pressed, lights goes out and i start counting the frames. Cmiiw

FlameIce · December 30, 2015, 11:16am

This guy explains it pretty well I think(why you shouldn’t look at animation frames), and I love his example. Try this and let us know the result.

Capablanca · December 31, 2015, 2:33pm

Is there any manual for how to solder Brook Fighting board if i`m about to replace my old PS360?
Installation manual… anything ! (

Vicko · December 31, 2015, 2:48pm

look at the pinouts
solder corresponding button to same one from ps360+

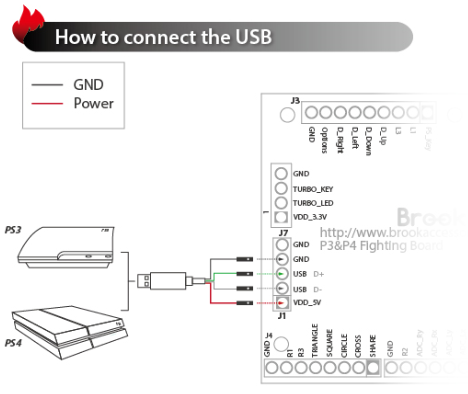

solder USB
daisy chain grounds and solder to ground spot on brook

not much to it

GOGO.Zippy · December 31, 2015, 2:58pm

Hi @Capablanca
Please refer to look BROOK official website. Maybe help you…
http://www.brookaccessory.com/detail/58690501/

GOGO.Zippy · December 31, 2015, 3:47pm

Happy New Year’s Eve and Happy New Year everyone!
2016 is coming !!

Brook Team wish you have a nice holiday

Bubbledotjpg · December 31, 2015, 6:49pm

Do you just usually use a USB to USB cable for the connection to the console? Would it be possible to use a neutrik usb feed through so I can remove the USB on the outside instead of having it permanently there?

Darksakul · January 1, 2016, 12:47am

Yes you can.

rumble1212 · January 3, 2016, 1:18am

Brooks was here.
Just ask Morgan

No one remember shawshank redemption? Such a great movie.

Neutrik sells a reversible feed thru. I’d recommend that one.

DJ_Divine · January 4, 2016, 11:56pm

any previews of PAS brook breakout board? dying to get one T_T

GOGO.Zippy · January 5, 2016, 5:03am

Please contact @armi0024 Paradise Arcade Shop…They will have a sale on out breakout with usb switch next week.

armi0024 · January 5, 2016, 8:06am

We are very very excited, our boards have shipped to us, we will test them quickly and get them up and going soon!

XorXe-YaGaMi · January 5, 2016, 12:35pm

Hi, its possible to use a optical Joystick like ASCII, SparkCE or GamerFinger PCB whit this board? Thanks.

Darksakul · January 5, 2016, 12:53pm

I don’t see why not. The current draw of a optical joystick isn’t that high.
Just make sure you supply the joystick with it’s needed 5 volts.

(You can get away with 3.5 volts on the spark CE and only the Spark CE when it comes to PS1 and PS2 boards).*

Cossie1300 · January 7, 2016, 8:39pm

Has any one tried it with the ps tv yet cheers

SusanInParadise · January 8, 2016, 4:23am

To make building easier:

https://scontent-ord1-1.xx.fbcdn.net/hphotos-xlp1/v/t1.0-9/10401923_1051934411534112_6220671612589362356_n.jpg?oh=6197efbd78160704ed2a24a63e8270e0&oe=570F3F54

Or for a simple Kaimana build:

https://photos-1.dropbox.com/t/2/AACeo8fmIGDnh7kOvEG6HtTs-DdHKNLrIRivdr3XTZHmaw/12/124005709/jpeg/32x32/3/1452225600/0/2/PAS_BROOKE_BRKOUT_KAIMANAMINI.jpg/EOWy6ewCGL5xIAIoAg/0PMSUdKYBatTD18cd2RvgEgimpjtE4SgGQvAY_2u2Hk?size_mode=3&size=800x600

Link.90 · January 8, 2016, 9:01pm

The Brook Fighting Board does not work with the PS TV. -.-
I hope there will be an update.

GOGO.Zippy · January 8, 2016, 9:17pm

@Link.90
BROOK Fighting Board is following 3 party specifications to design, but the PSP TV don’t support this specifications …

Vicko · January 9, 2016, 2:19pm

Is there a way to force either PS3 or ps4 mode?

Cossie1300 · January 11, 2016, 12:35am

Thanks peeps for the answer bout the ps tv ive got another question hopefully ive just scored a te 2 killer instinct edition has anyone tried a brook fight board in one
