B15SDM DESIGNS CUSTOM ARCADE STICKS- see my second post

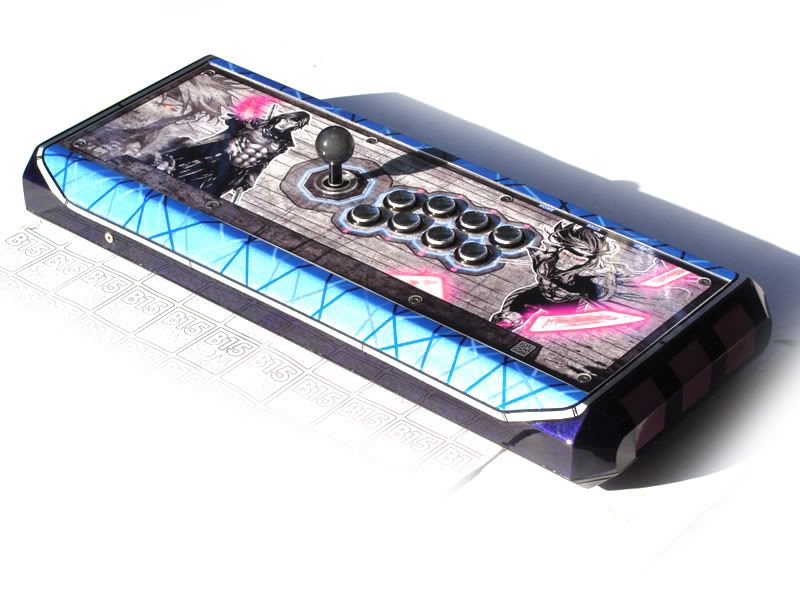

GAMBIT CUSTOM WIDE ARCADE STICK

SOLD

Here is a custom wide case I built as a prototype while experimenting with the bottom panel.

Specification:

  • Gambit theme
  • Solid hard wood case with 3mm thick acrylic top panel with thick steel control panel
  • Bottom section of the case is made of a layer of 6mm thick acrylic sandwiched inbetween the top part of the case and the bottom
  • Inside the case has a 3mm thick mirror plexi
  • MC Cthulu, imp v2, 360 fight pad, Neutrik RJ45 with USB cable and PS2 Cable only
  • Xbox 360 headset jack
  • LED setup using Toodles FG led controller board, KN inserts & light up balltop
  • Light up artwork which can turned off via the switch on the back of the case
  • Shadaloo.eu aluminium feet
  • 660mm x 270mm x 75mm

£380 o.n.o. + £20 shipping within the UK & most of the Europe & £50 everywhere else.

SOLD

http://i104.photobucket.com/albums/m197/b16sdm/Gambit%20Custom%20Arcade%20Stick/Gambit1.jpg

^ like a boss

as usual

hey B would you adopt me, so I can have free custom sticks, lol amazing stuff

Wait, where’s the Akuma one? Did I miss that one?

Edit: Forget it. My browser didn’t load all pictures. I just refreshed and it was there. It’s sick.

excuse my ignorance…is that pounds or euro?

£= English pound

€ = Euro

so if you live in the US you’d be looking at around $680 dollars shipped

I dont think im suitable for adopting at the moment. Due to the work load I am under at the moment I would probably end up neglecting you, only to turn up to the workshop one day to find you laying dead in a foetal position behind my table saw. lol

Thanks for sorting that one for me :slight_smile:


I am willing to sell the Gambit custom for** £280 + shipping WITHOUT the stick, buttons and pcb’s.**

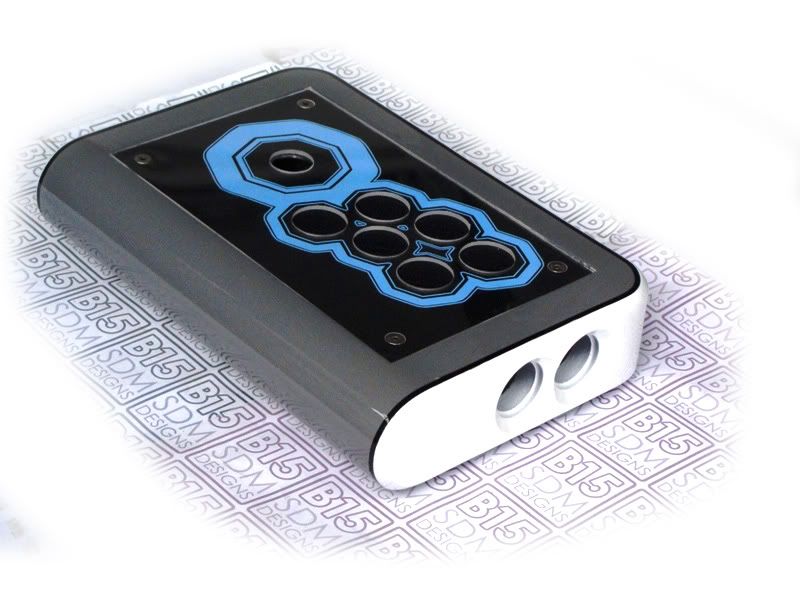

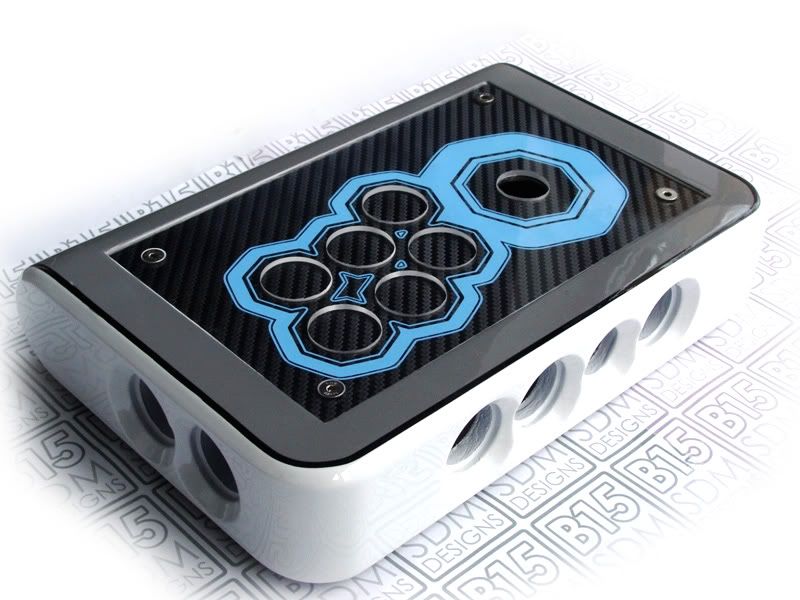

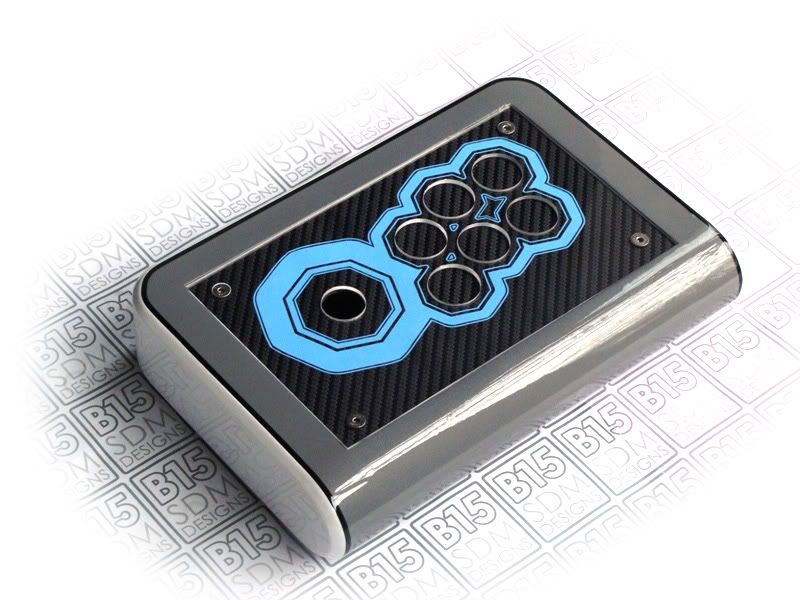

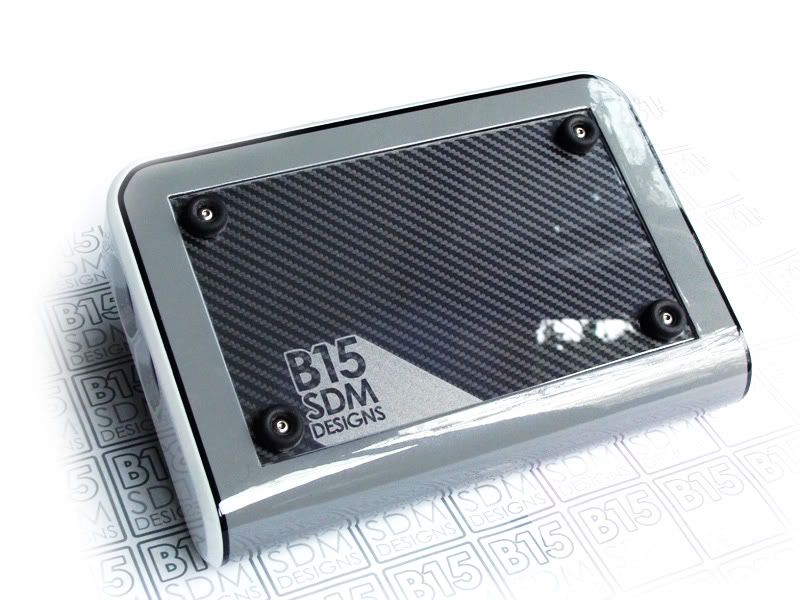

COMPACT GRET BLANK CASE

Here is a compact case I made from the left over wood I had from previous builds.

  • 310mm x 210mm x 60mm (not including rubber feet).
  • 6 button Vewlix layout with 2 buttons on the right and 3 on the back (all 30mm)
  • Solid hardwood case with steel panel and 3mm plexi for both top and bottom.
  • 25mm hole for Neutrik jack
  • Metallic grey and marble white seperated with black pin stripe

£160 + £20 postage within UK and most of Europe. £35 to the US.

http://i104.photobucket.com/albums/m197/b16sdm/Compact%20Grey%20Case/CompactGreyCase1.jpg

http://i104.photobucket.com/albums/m197/b16sdm/Compact%20Grey%20Case/CompactGreyCase2.jpg

http://i104.photobucket.com/albums/m197/b16sdm/Compact%20Grey%20Case/CompactGreyCase3.jpg

http://i104.photobucket.com/albums/m197/b16sdm/Compact%20Grey%20Case/CompactGreyCase4.jpg

http://i104.photobucket.com/albums/m197/b16sdm/Compact%20Grey%20Case/CompactGreyCase5.jpg

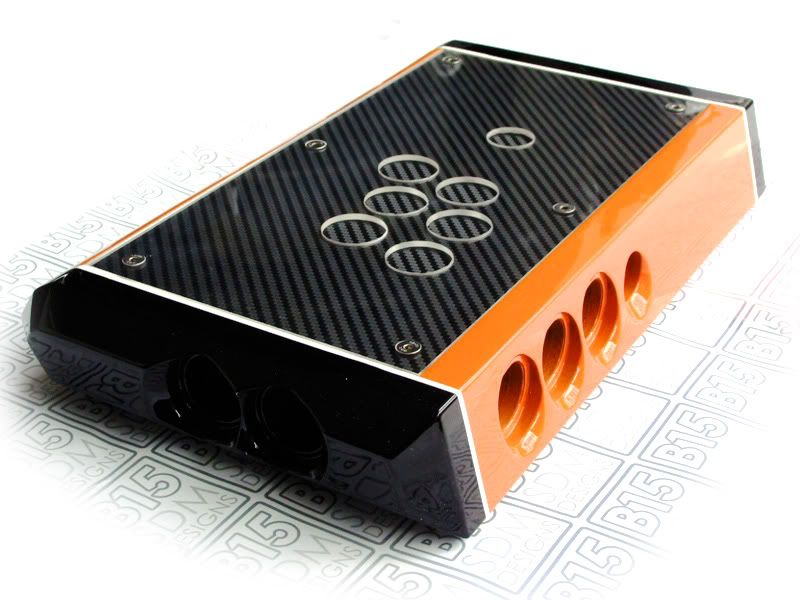

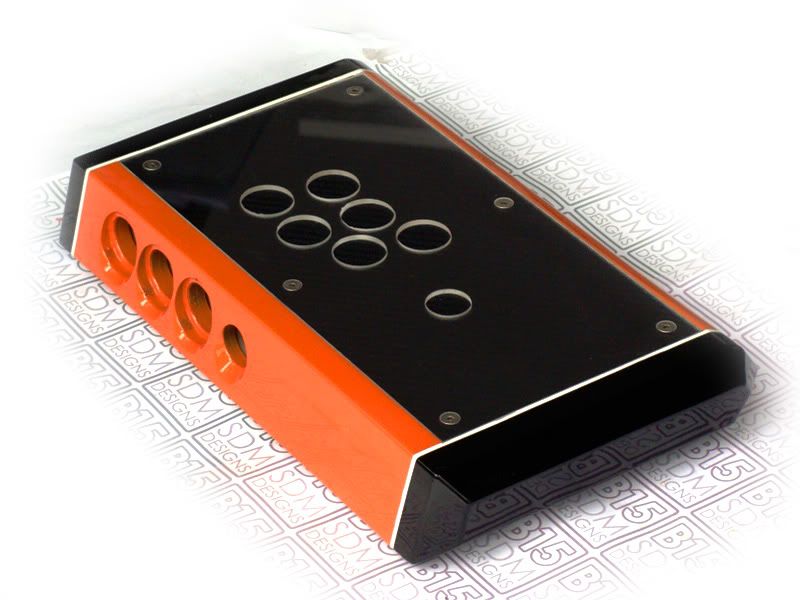

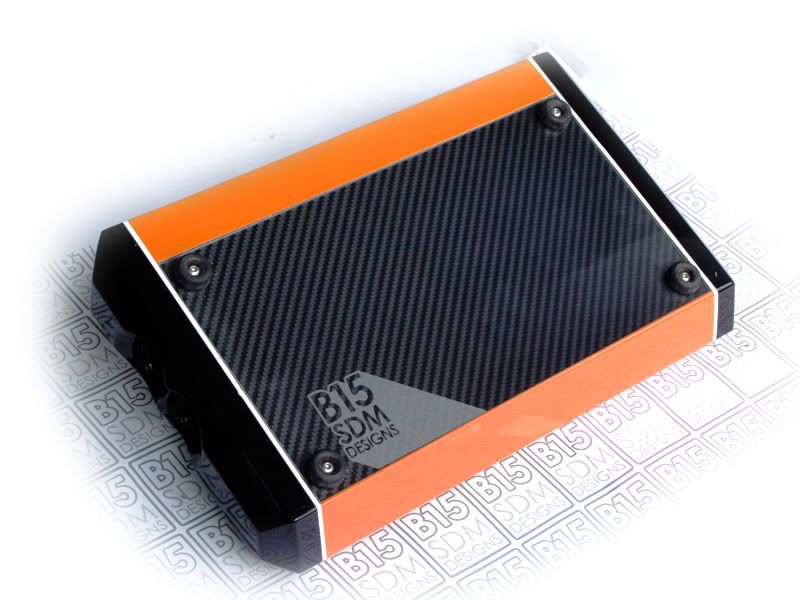

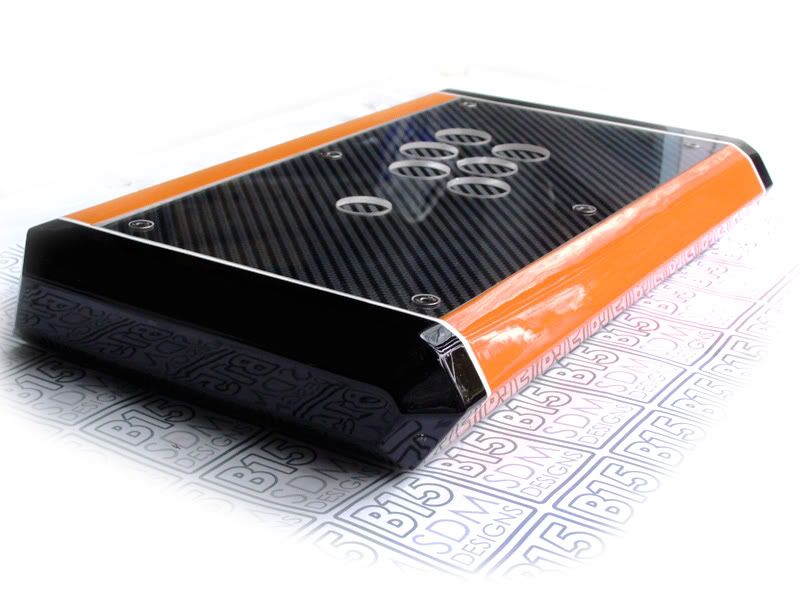

COMPACT SLIM ORANGE BLANK CASE
Here is a compact slim case I made from the left over wood I had from previous builds.

  • 390mm x 225mm x 55mm (not including rubber feet).
  • 6 button Vewlix layout with 2 buttons on the right and 3 on the back (all 30mm)
  • Solid hardwood case with steel panel and 3mm plexi for both top and bottom.
  • 25mm hole for Neutrik jack
  • Metallic orange and black seperated with white pin stripe
  • I just threw in the carbon fibre/colour vinyl template for free
    £160 + £20 postage within UK and most of Europe. £35 to the US.

http://i104.photobucket.com/albums/m197/b16sdm/Compact%20Slim%20Orange%20Case/CompactOrangeCase3.jpg

http://i104.photobucket.com/albums/m197/b16sdm/Compact%20Slim%20Orange%20Case/CompactOrangeCase4.jpg

http://i104.photobucket.com/albums/m197/b16sdm/Compact%20Slim%20Orange%20Case/CompactOrangeCase5.jpg

http://i104.photobucket.com/albums/m197/b16sdm/Compact%20Slim%20Orange%20Case/CompactOrangeCase6.jpg

Gorgeous. That orange one is the same color of my website. Love it. Can a JLW stick fit in that slim case?

I honestly I couldn’t tell you im afraid. I know a JLF will fit.

$300 is a little too rich for my blood, but man do these cases look worth all that scratch -and this is what you make with your scrap? My god, man. Excellent stuff. Keep doing what you do.

Oh, and, quick question:

How do you install Neutriks into your cases? Do you have a harness or something? I know you place them in one of the button holes, but I can’t for the life of me figure out how.

would it be possible to rip out the pcb/wires from a TE and put it into that akuma stick?

How much to get JUST the balltop from the steam punk stick?

TE PCBs can be transferred to most sticks easily because of their wiring harnesses and terminal strips make it a cinch to set up.

Damn, $300 does sound like alot. I really hate the exchange rate as I end up losing alot of work like this. If I had to charge $160 for these blank cases I may aswell give them away for free.

With regards to the neutrik mounting all you need to do is place the neutrik jack into the hole and make sure its rotated how you want it. Stand the case on the rear side. I like to use a hot glue gun to pour some glue around the recess where the neutrik is sitting. Only fill it enough to cover the metal housing and make sure it doesnt touch the plastic section of the neutrik. Sometimes you may need to change it (due to it breaking as its prone to doing) so all you do is remove the 2 screws and replace the centre piece and the metal chassis will stay in there permanently.

Steam punk clock balltops are selling for £30 including shipping. The wind-up clocks actually work. I would honestly say that the clock balltop is only good for light use. Heavy use causes the top to pop off from the brass centre section which will require the customer to glue it back on with a stronger glue (polyurethane adhesive works the best). The way they are made at the moment the glue doesn’t hold up very well. At the end of the day its designed to be a pocket watch and not designed to take the abuse of an arcade stick. It would still be a nice balltop to add to the collection.

I’ll PM you sometime next week for one :slight_smile:

I am very interested in that Compact Grey Blank Case. But it may take some time to come up with that kind of cash. Is there a way I can reserve it with a down payment or something? I’m in the US, so it comes out to like $300, but I really like it.

Is the hugo stick still up for sale?
