Hello! Just signed up here and wanted to ask any modders if it’s possible using this in order to use LED buttons on my Qanba Dragon? I’m not sure exactly how to go about it due to the lack of guides on the internet, so if anyone knows exactly how to go about this, it’d be a huge help! If it’s really not that simple of a task, then I’d also like to ask if there’s any modders available or around for being paid to mod it to the stick?
Is Focus Attack going to have any Black Friday deals?
Don’t know. Go to their website.
1 Like
Make a long story short to keep it on topic. I know Qanbausa is with a 20% and UYU2020 is another $20 off. I don’t know about Focus Attack sadly.
1 Like
How much height i need to fit and Ultimarc or I.L magnetic in arcade stick?
Fit in arcade stick like this
From my understanding people had issues fitting LS-32 and LS-40 in there without modding.
You aren’t fitting a Mag-Stik Plus or a iL Eurojoystick in there without maybe 3D printing a middle layer.
The Paradise Magenta might fit
IL levers can “just” barely fit in Hori VLX joysticks, I would search SRK/Google for those specs, and then measure vs. your 8Bitdo’s.
More info:
Forum members @rygod and @kubebot were the ones who got the levers to fit in their VLX’s
Arcade Shock lists the VLX as 5.51 inches tall, so if your 8Bitdo ain’t that tall, then I’d say you’re gonna need to make like @gummo and “get the dremel out”.
Having to use a universal plate in addition on the vlx to mount the IL made it that much tighter. Think I maybe had a millimeter left
1 Like

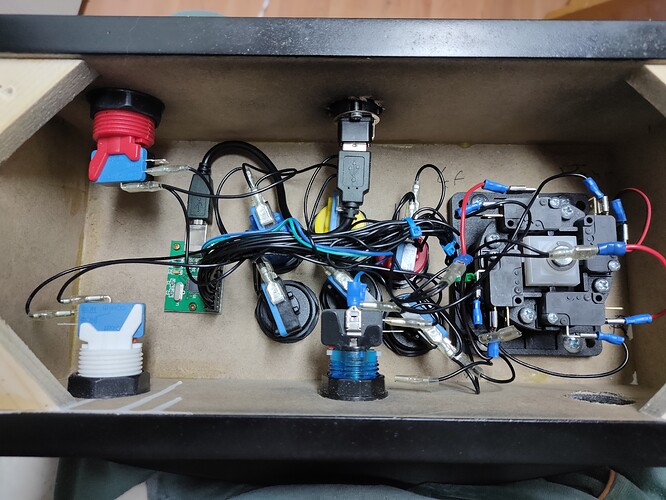

The best idea is to buy bartop like this
in seller shop said 14 classic American style concave buttons with 28mm mounting hole and 33mm outer diameter.
The hole for the buttons is 28mm or 33mm? For the I.L magnetic i have a cut all the wood around the joystick for the shaft?
Wtb 20 pin connectors for making harnesses?
Looks like Zippy switches to me.
Euro 2’s should be Cherrys when new.
1 Like
Ok i have to check to change the change
I have four Zippy ultralight like that i save from failure mod in Sanwa jlf can put because the actuactor bought in PAS stuck the joystick, I have waiting the microusb connector that is broken
Anyone got any pointers for a rookie wanting to get a supergun and use with an atomiswave?
Edit:
Basically would this be doable blowing a stimulus check?
Hi everyone…
I’ve got an old Hori RAP2 that I’ve been considering upgrading to a bit of a universal project stick to keep and just upgrade over time instead of buying new ones for consoles (using something like brook ufb).
Main issue is that at some point I either got rid of or lost the carriage bolts that hold the top panel down. Does anyone know of a good replacement or what size they are?
Would this work for what you’re trying to achieve?
1 Like
Probably would! I think I actually had some of those, but the ones I used had the threads tapped into the acrylic, which might be why I don’t have them anymore (probably stripped out). Those look to have a nut embedded, so should be much more robust.
Ok quick question, I’m setting up a chewlix Cabinet that I found on hard rubbish (side of the road) putting a new monitor in it, new buttons and sticks and a xbox 360 in it. I have 2 brawlsticks and wanted to utilise the home LS/DP/RS panel with my PS360+ boards, anyone know how to wire them up?
Thanks Reuben
Hello ,
Im looking to add the kaimana LED kit to my F500 , i have the pcb + breakout board , 20 pin harness and leds , the thing is im not sure how to assemble the whole thing , I’ve seen some youtube vids from fundando but i stil have questions , do i strip the current button cables on the mayflash pcb to pass them through the breakout board ? and how do i power everything? D:
Any advise would be greatly appreciated for this fightstick newbie looking to get into modding and not screw up his only stick n.n
Does ANYONE have an art template for the Ultra Ulia???
So I have this…“Ultra Ulia”…that’s been sitting in my old place for quite some time. Essentially, it’s a bootleg Hori RAP 3, but it has a 24mm hole for the home button on the left side, while actual RAPs have the little control panel or whatever you want to call it.
I’d like to get my hands on an art template for this thing so I can make some art for it. I could always wing it, but I’d prefer to have a more accurate template to work with so I can get the labels just right.
