A fine gentleman from Michigan and the Neo-Geo.com forums really wanted some CAPCOM Mini Cute Panels remade. I started with the 2P versions… nailed 'em!
Here’s something I did up last night. A standard SYNC CLEANER for Arcade Boards. I did the schematics and drawings up in EAGLE and made them publically available for download. Get some made and maybe save some money? Or just learn from it and incorporate into your own schematics. Enjoy!
http://www.thesupergun.com/wp-content/uploads/2014/09/sync-cleaner-1024x483.png
Write up and download link here:
thesupergun.com/wiring-diagrams/jamma-sync-cleaning-circuit/
http://www.thesupergun.com/wp-content/uploads/2014/09/Screen-Shot-2014-09-08-at-8.21.14-PM.png
The JAMMA Standard outputs Audio at Speaker Level meaning its Amplified. Using a voltage divider you can get the level down to something safe for your TV. JAMMA-NATION-X shows us how to setup this type of circuit with a simple DPST switch, but I thought there was a cleaner solution using a PCB. I made some a few months ago using all through hole parts and it worked well.
The problem with the circuit I initially made was is handled both the JAMMA and MVS audio separately (Pin 10 and L) but didn’t allow you to bridge PIN 10 to both LEFT and RIGHT audio jacks when using a JAMMA Board to create a fake stereo output, you needed to use a separate switch to do this. I incorporated that switch into the board.
Original write up and file download link here:
http://www.thesupergun.com/wiring-diagrams/jamma-audio-attenuation-monostereo-switch/
Good lawd! That thing is sex in steel!
I was in the market for a new stick since all I ever had was a Mayflash with Sanwa hardware, took one look at the Panzer and the money went straight into my screen :P. Just ordered one! Now if we could get some PS4 PCBs available somewhere my world would be complete.
Thanks Jasen for such wonderful products!
Thanks! Got the order last night and it will go out to the shop for build on Monday
All done… Thanks @ogrebites
Bid big and often at The Art of Fighting this weekend to raise money for MoD!
https://fbcdn-sphotos-f-a.akamaihd.net/hphotos-ak-xpf1/v/t1.0-9/10696333_324281041085819_8524003130103353275_n.jpg?oh=678e79cb2f05c8777bdcecffd690daae&oe=54C8C1F4&gda=1418424990_3d19919719aae60046b839a720443ab1
Another MK30 ADCAP SuperGun. These are getting fun to build… 4 in the last week!
Better MK30 ADCAP Pictures. So much fun to build…
Any chance of getting the MK30 with USB ports built in for the controls instead of DB-15? With something like Undamned’s USB Decoders. We do a lot of local events where I live and everybody pretty much wants to use their own fight stick or pads.
edit: oh, or I guess the Project Kajitsu makes sense but I just saw what you said in that thread.
I’m working on a usb solution for the future.
Uploading my finished Panzer images, this is a solid beast!
Looking good! Since this is tech talk, what encoder did you end up using in there?
It currently has a Mayflash encoder since i play only on pc/ps3. I am building a Project box with an old xbox360 controller I have lying around in case i run into that situation. I will interface it through the db-25 port and voila!
Proud to be one of the main sponsors for Travis and his efforts to raise money for the Children’s Miracle Network via Extra Life! His twitch stream goes live on 25 October and he’ll be playing for 24 hours straight! Donate to the cause, even a $1 helps!
Find out more at his Blog: http://travistyoj.com/
Checkout his Trailer here!
I guess I should post my new panzer
I padhacked an Xbone Controller and used an ImpV2 to switch between the ps360+ and xbone. It works perfectly. Now I can suck at Killer Instinct too!
And just for the hell of it:
Both look great! Thanks for sharing with the thread

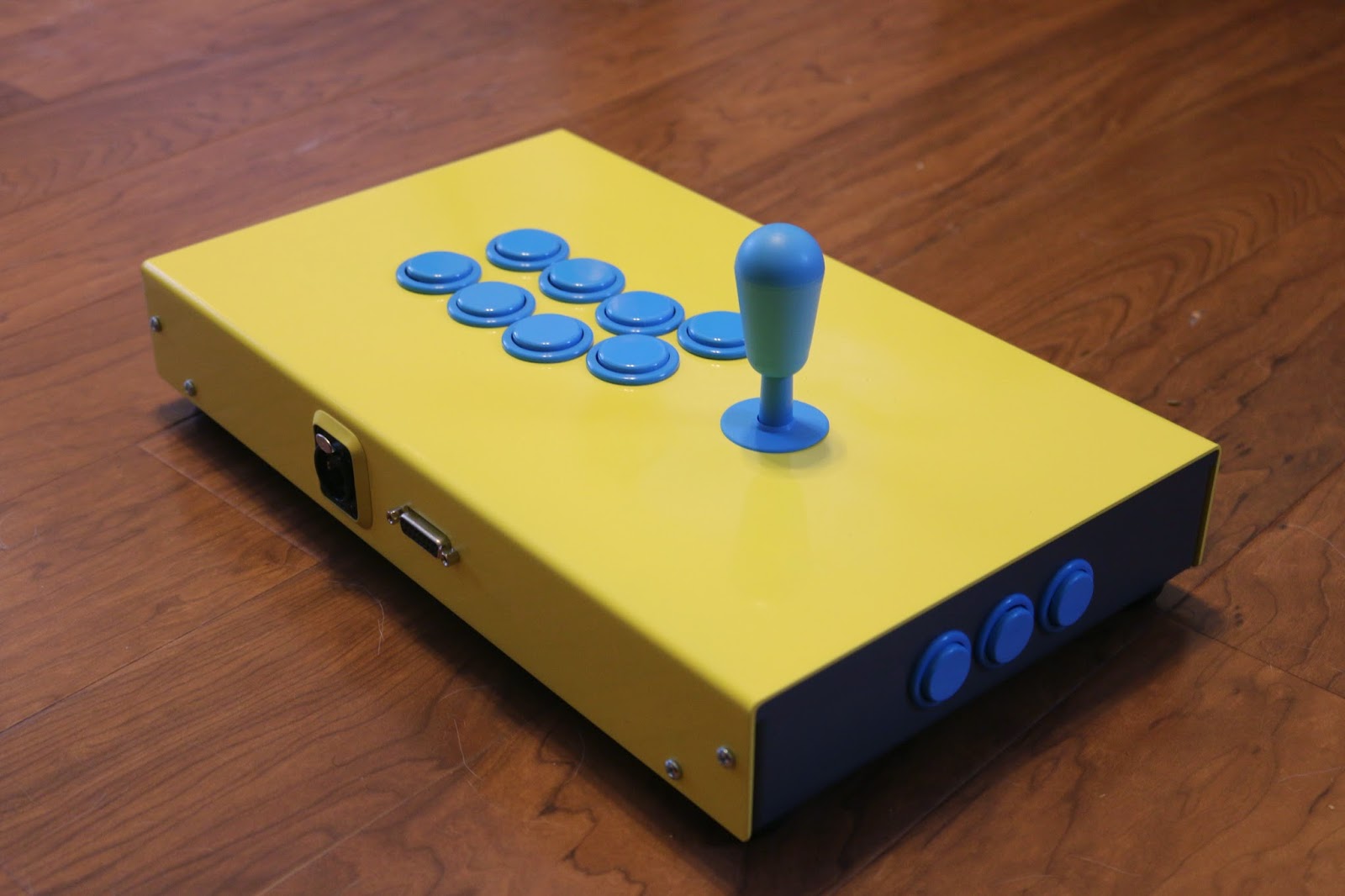

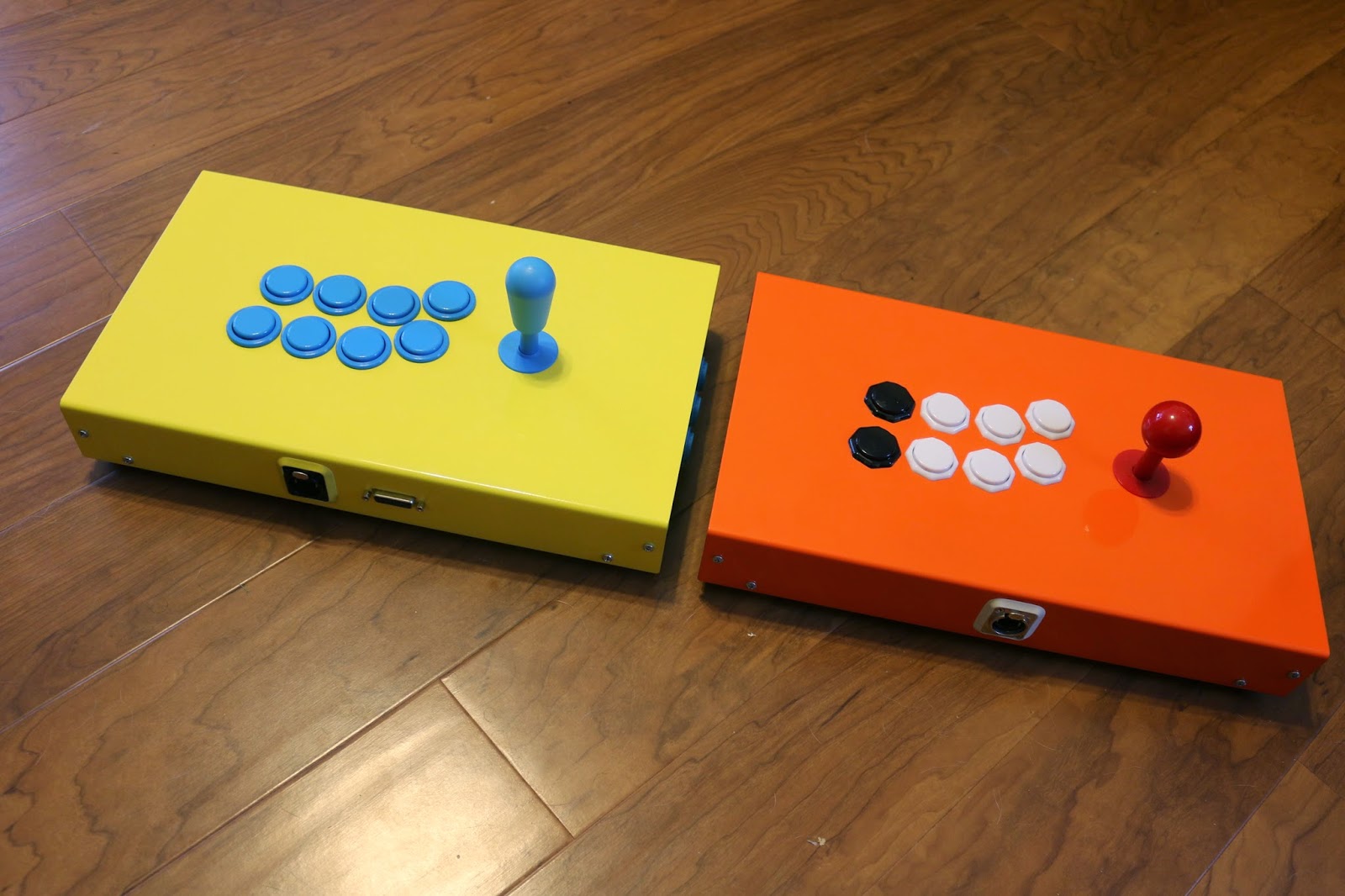

A couple shots of the newest addition to the Panzer Fight Stick Family!
So why have a cutout for both a Neutrik adapter and DB-15? Well, its tech talk so lets chat about it for a minute:
-
The PS360+ only does a few consoles, right? What about using your fight stick with another system unsupported by the PS360+? You can craft up something relatively awesome in an external project box and have your stick instantly compatible with your oddball (perhaps) console and not have to mess with anything internal to the stick!
-
You use a NEO-GEO or SuperGun and don’t need a fancy encoder since the JAMMA Board or MVS board does it all for you.
How much do you think you would need to charge to setup a db25 cutout?
