I’d have to wait til toodles makes a smd version of the mc cthulhu.
I did manage to find and pick up a saturn pad today at a local game store. mk-80116 model. Anyone interested in getting it modded?
Can anyone help me and Gumm out by posting an old school template (labeled punch/kick buttons with something like a championship edition coloring) for a MAS stick? Thanks for any help in advance.
is that the clunky american version or the stealthier japanese version?
American version. It’s like a big box with buttons and a joystick. I still prefer it over anything Japanese.
the one i just picked up is the stealthier jap version. mind you it is in used condition so there are plenty of light scratches on the shell.
My bad. I thought he was asking me.

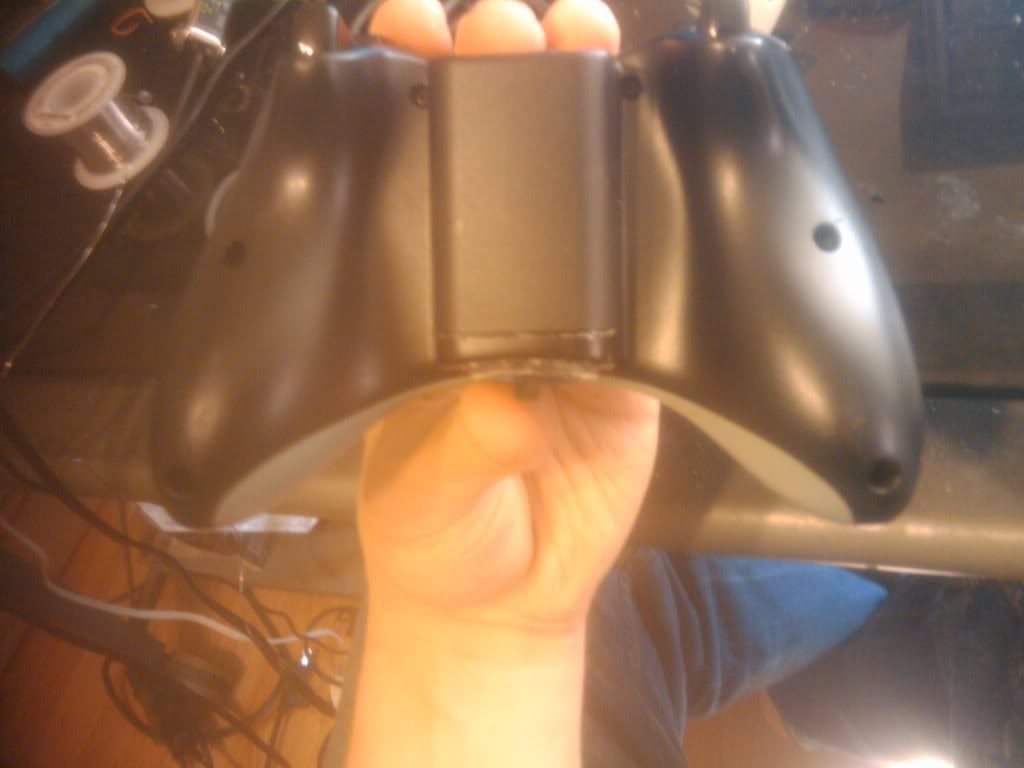

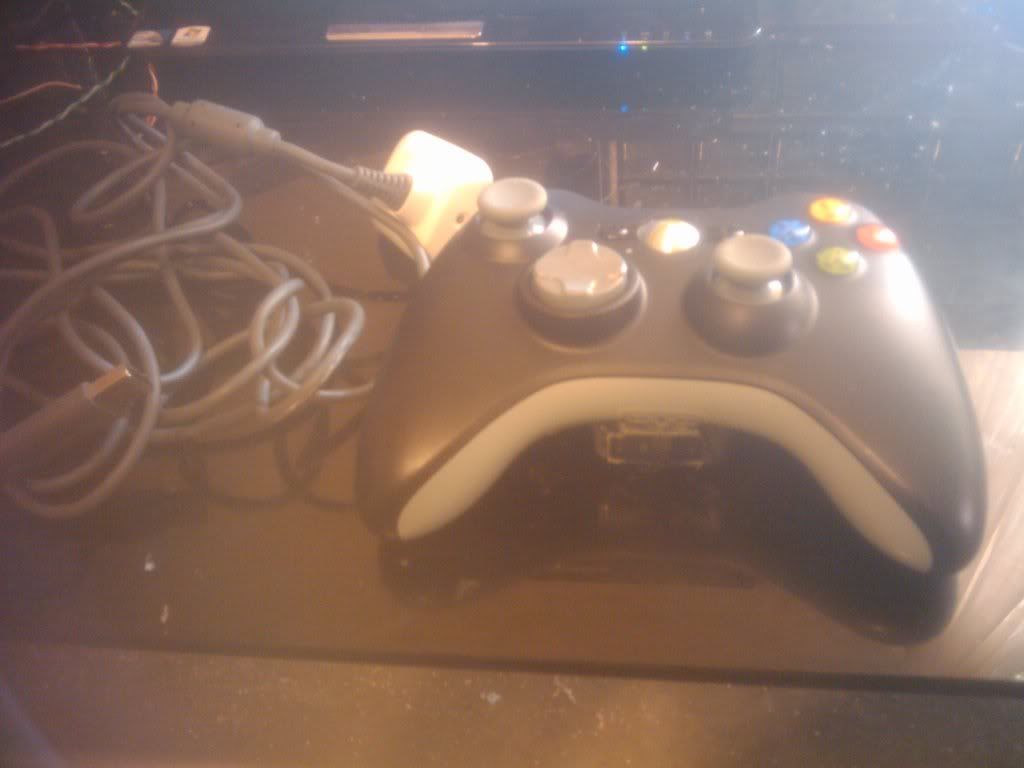

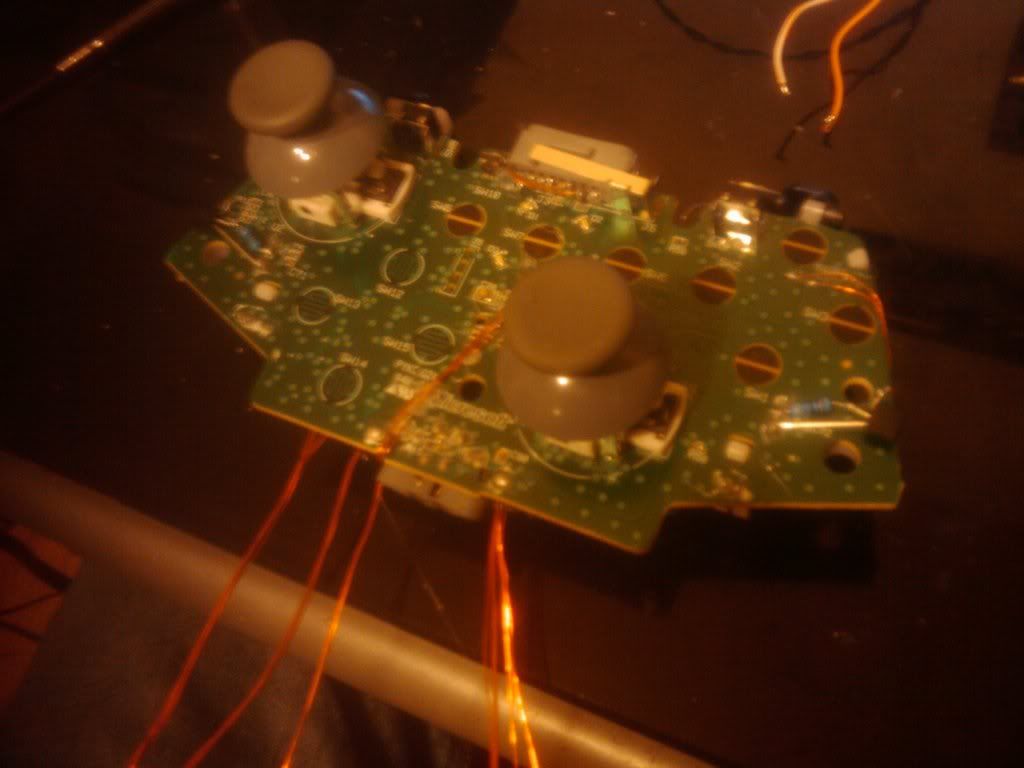

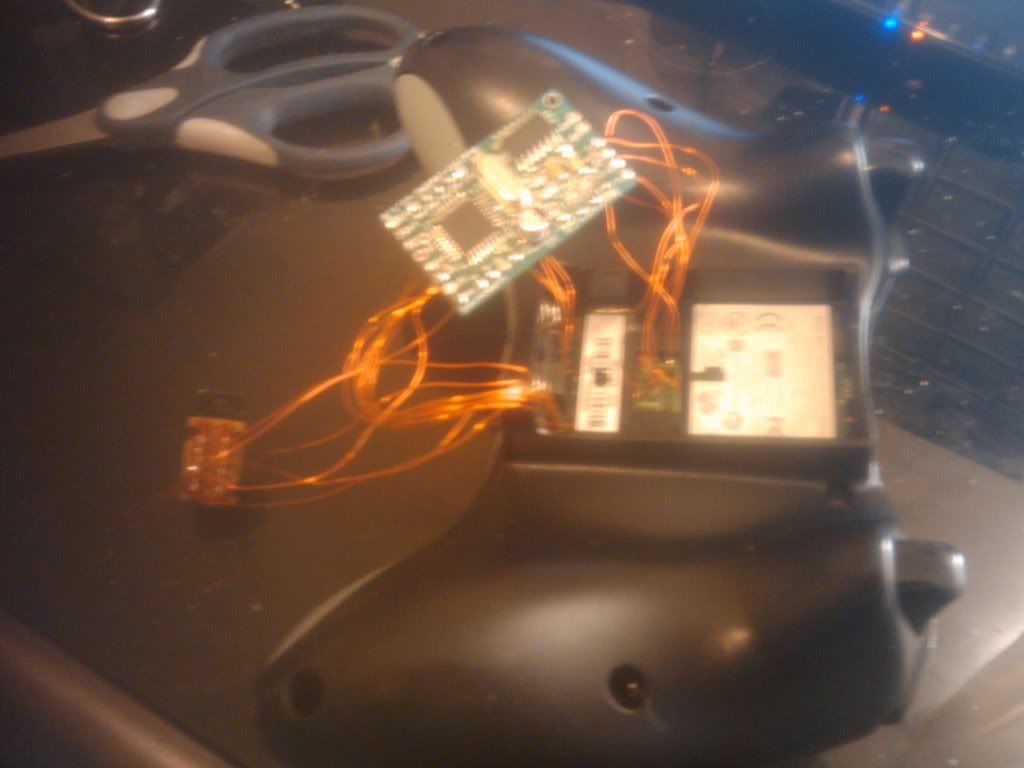

Finished a mod request for tetsuye00. To make a MS 360 pad work on the ps3. Here I used the late version model of the wireless 360 pad and a dual strike SMD board. There is a switch on the bottom, but it isn’t to select which system the pad works for (at least not directly). It is to switch which system the start and guide buttons work for. Left for 360 and right for ps3.
In order for you to sync to 360 you need to hold down guide as you plug in, but the switch needs to be set to ps3. The controller will turn on and sync to the 360, but you will need to move the switch to the left to be able to use the start and guide on 360. If the controller was already synced to the 360, then you just leave the switch to the left when you plug in and press start or home and the controller will turn on and connect to the 360.
Plugging in the controller no matter which side the switch is set to will make the controller work for ps3.
All the original functions of the 360 controller still work on 360. For ps3 side only the face buttons, triggers, and dpad work. The two analog sticks do nothing when playing on ps3. I could make the left analog stick function as a digital dpad, but this functionality was not requested.
http://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-10-31192301.jpghttp://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-10-31192312.jpghttp://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-01125342.jpg
http://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-01140213.jpghttp://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-01140225.jpghttp://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-01140242.jpg
My modded HFC arrived and I just tried it out…
[media=youtube]HxDJIpwHAPc"[/media]
This pad is the shit! Kickass work Gummowned! Thanks so much! It was worth every cent.

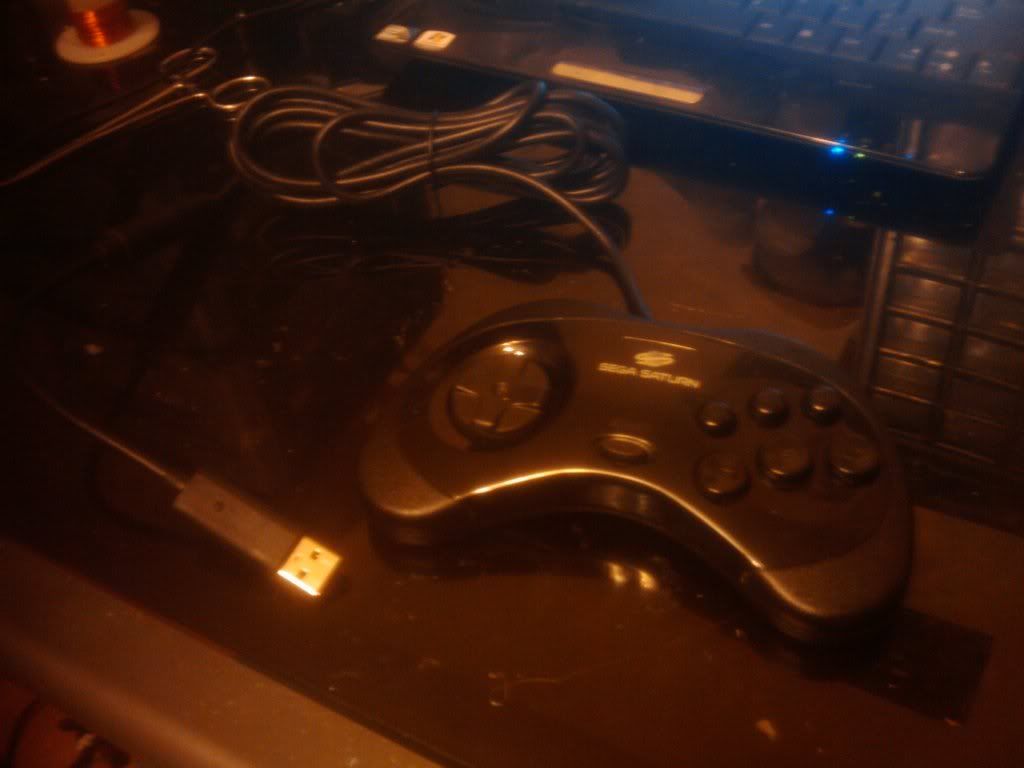

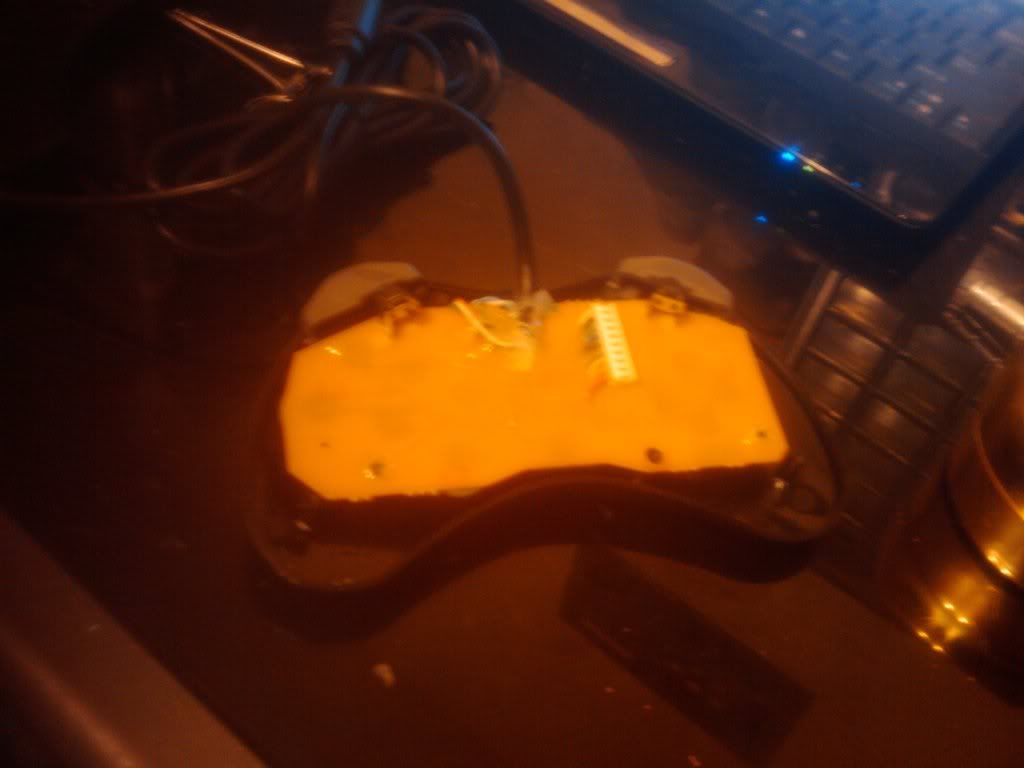

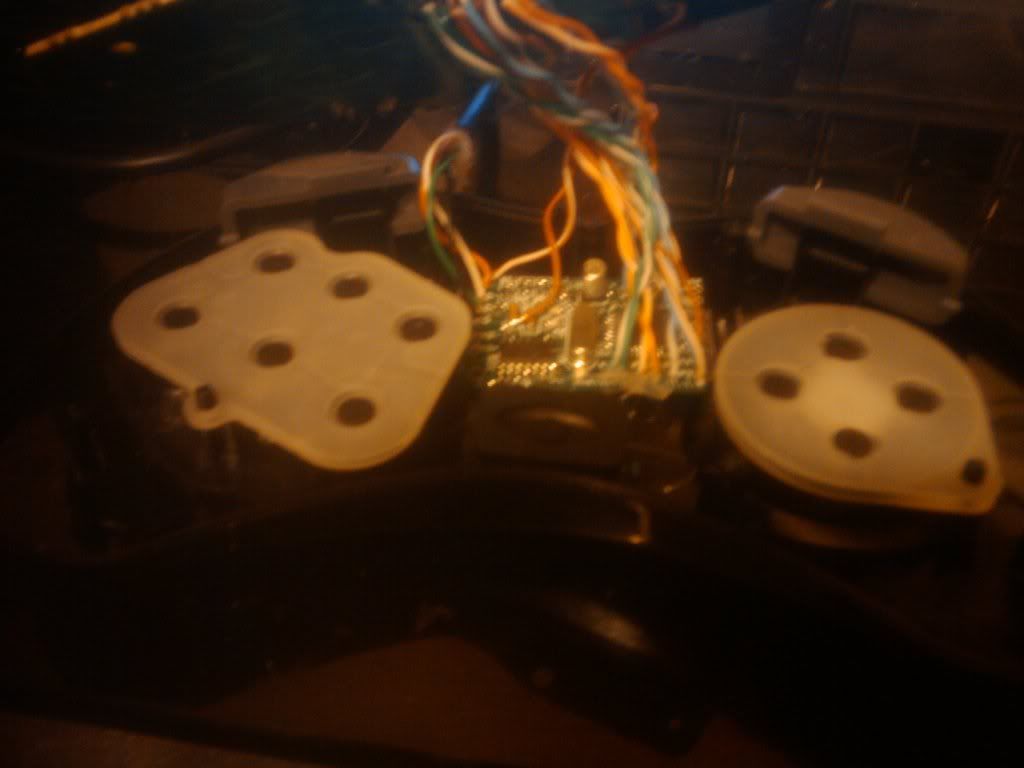

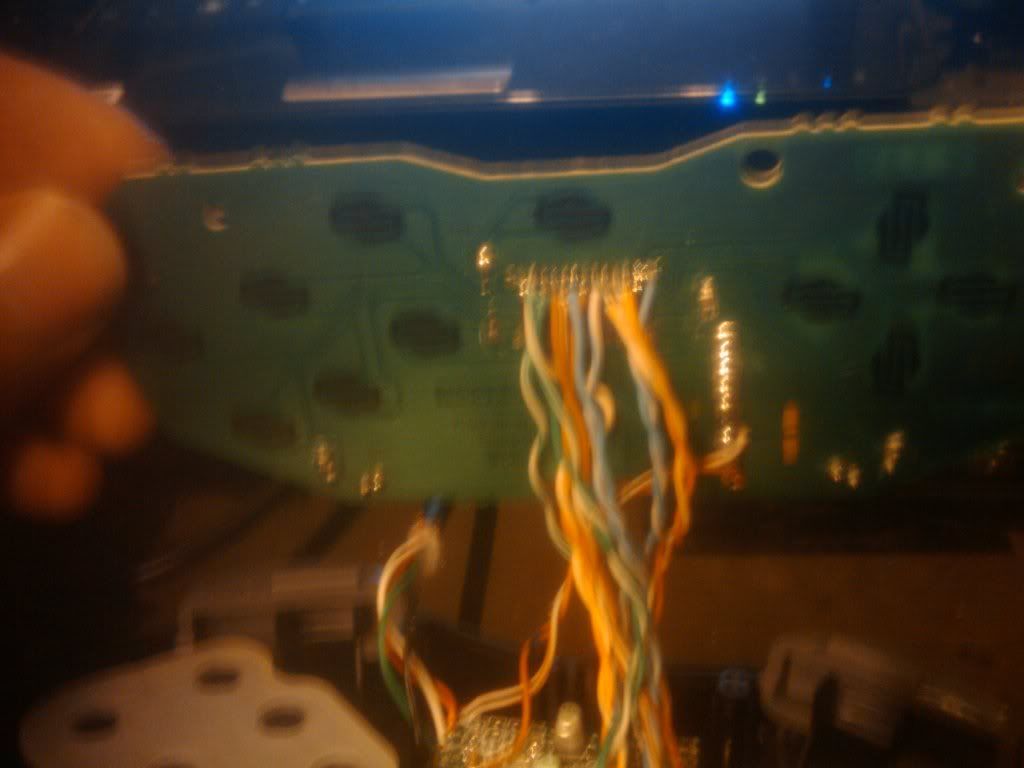

I just finished modding one of phaedrus’s Saturn pads for the PS3/PC. Because the Saturn pad has no select or home button I had to make a lil change in the Dual Strike’s firmware to make pressing Start+Left shoulder = Select and Start + right shoulder = Home. The button mapping is mapped like a fightpad.
http://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-02002546.jpghttp://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-02002557.jpghttp://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-02003125.jpghttp://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-02003247.jpg
Sweetness!!! Thanks. got another one which i am gonna send to You. will be a bit on that one got other expenses on the way.
I actually found another one yesterday. Now I have two jap style saturn pads in stock now. So you don’t need to send one of yours to get modded.
This is SICK!!! Yeah as per our IM’s I read that more players prefer Satrun pads over all the rest and you dualmodded one. You are the king of Modders!
good to hear but i will leave those to other customers. i end up with a paperweight if my other one is not modded. no saturn in the house.

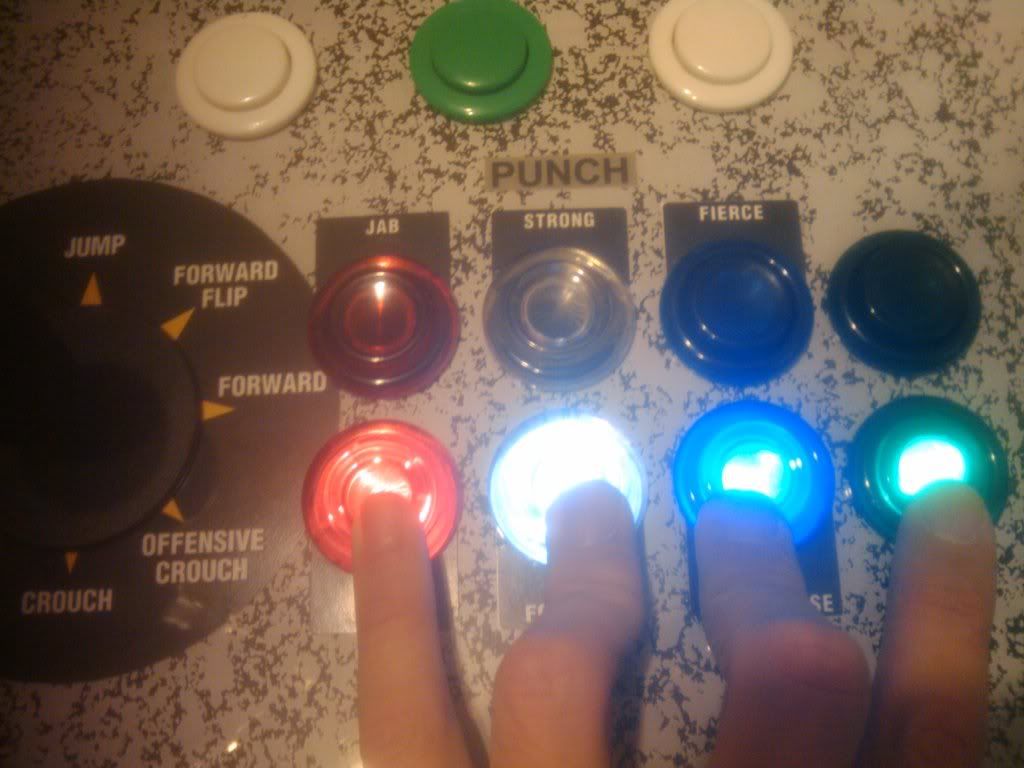

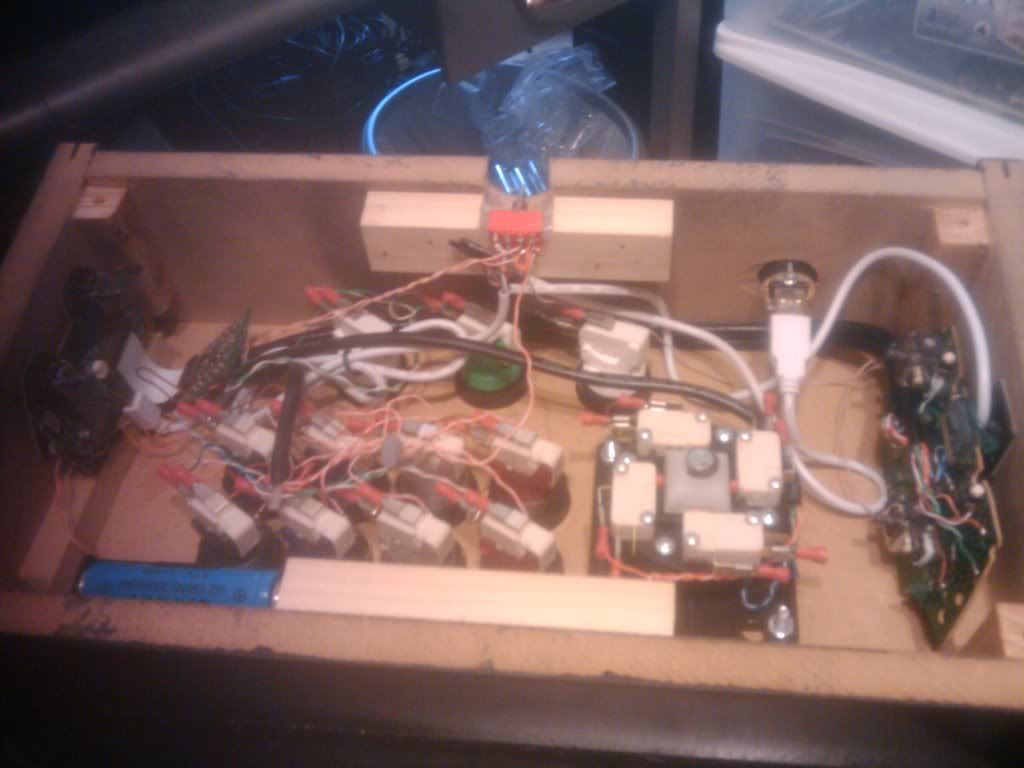

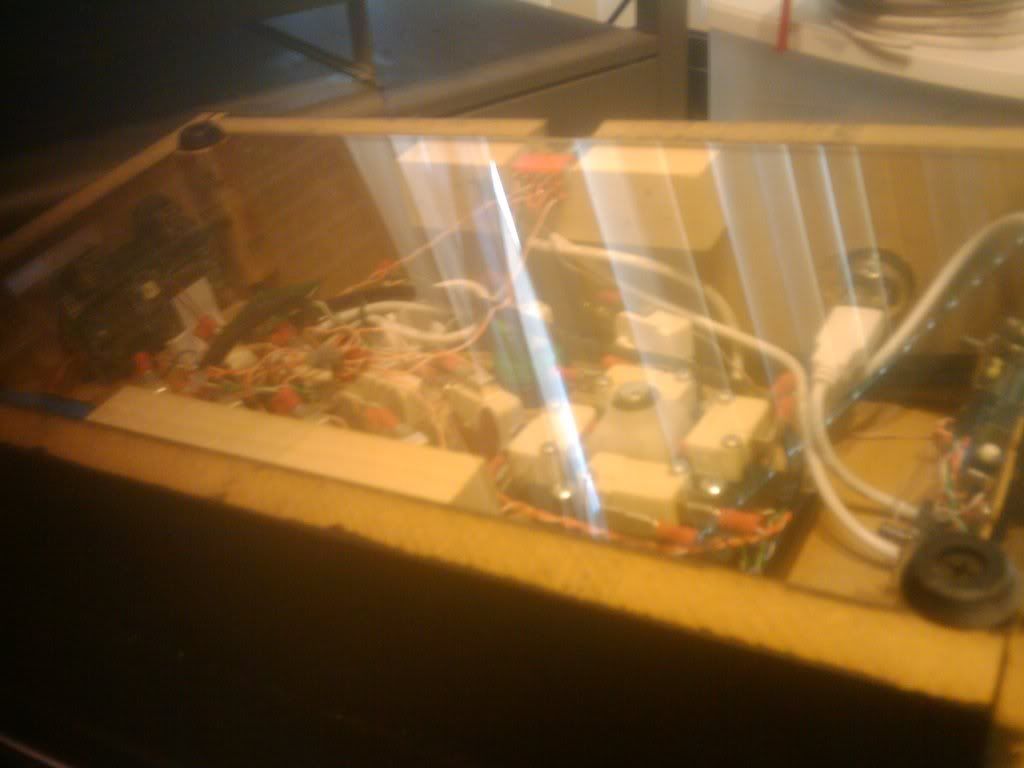

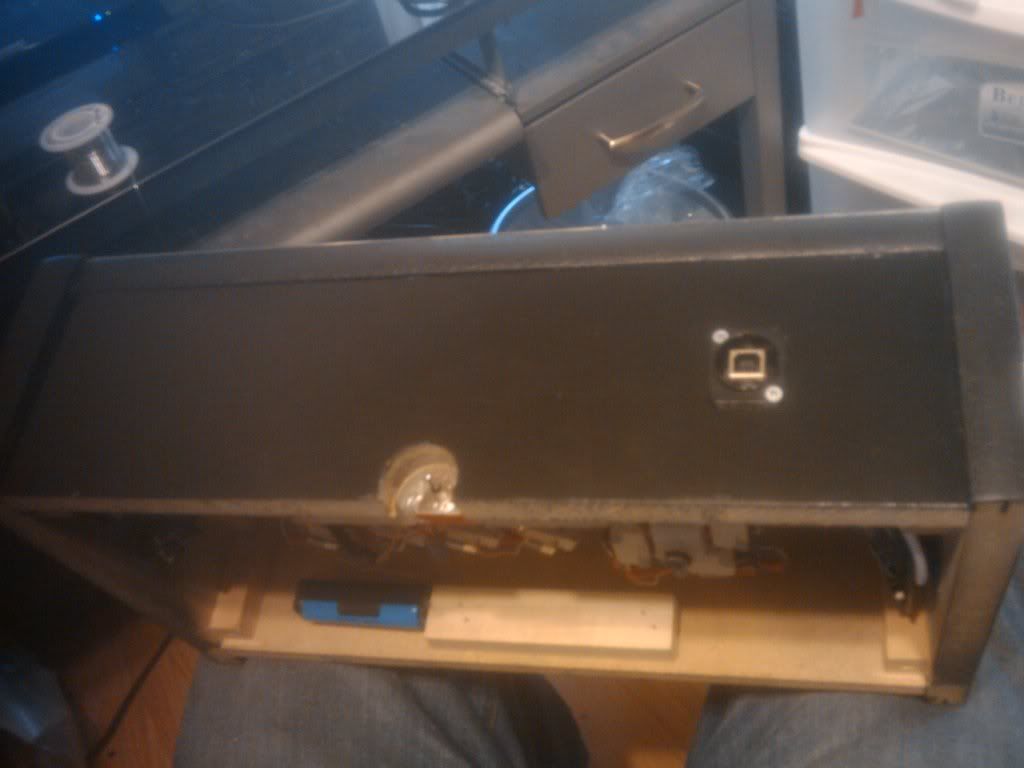

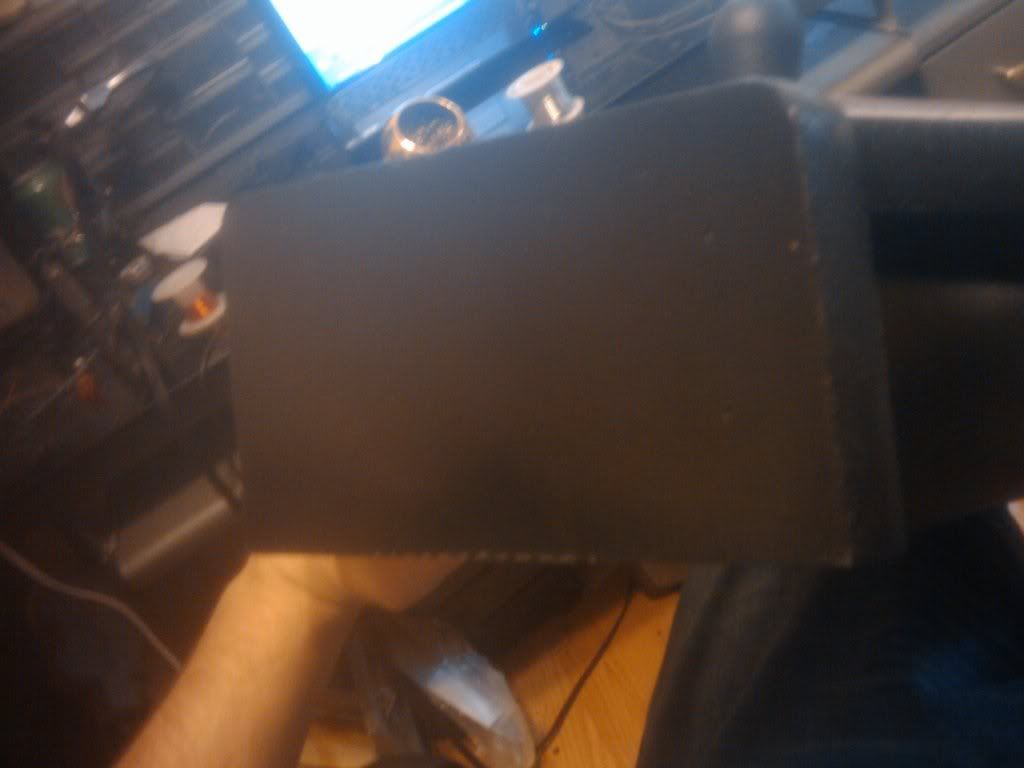

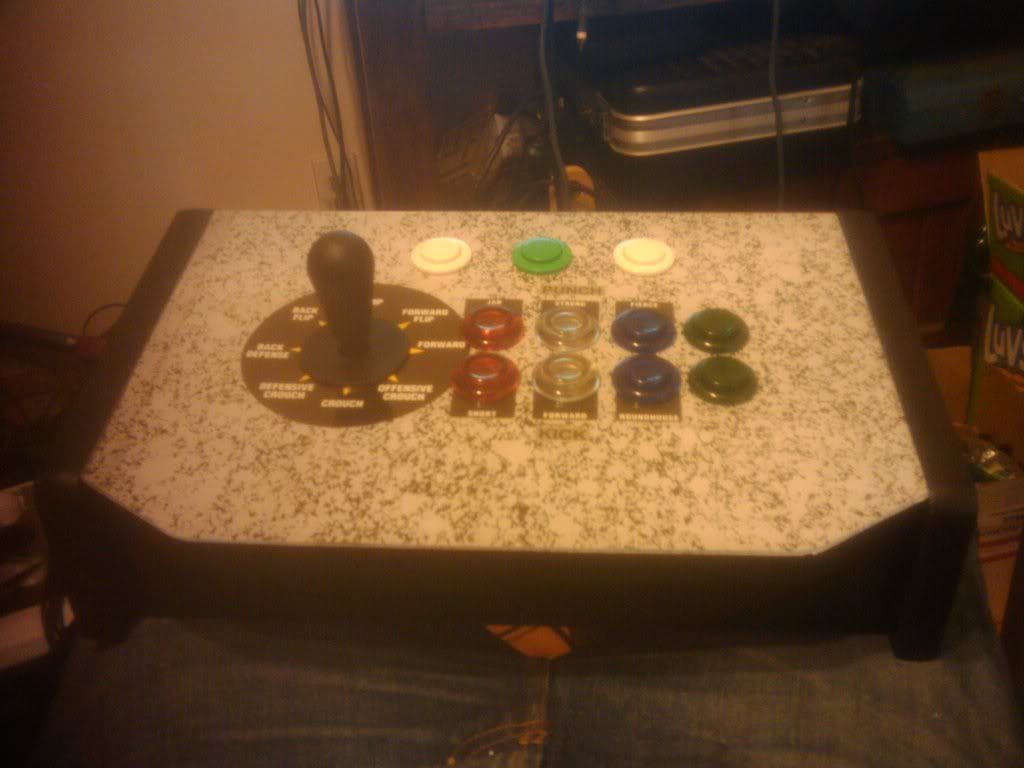

Finally finished dman1869’s MAS refurbish. Started out as a crappy beat up MAS stick and turned into a nicely repainted dual wireless stick with leds and with new plexi, artwork, buttons/stick.
http://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-02163808.jpg http://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-02163819.jpghttp://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-02164017.jpg
http://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-02164034.jpghttp://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-02164048.jpghttp://i79.photobucket.com/albums/j138/gocontourgo/Finished%20Mods/th_2010-11-02164339.jpg
How long take that it did for done being?
Well I received the stick in June, but I had to wait on for a lot of things before I was able to make progress on each step. Technically I had the stick wired and functional a while ago. It was that damn artwork that took me the longest to get finished.
Meus’s mod is in the same situation as well. Lots of stuff wanted done and quite difficult stuff when compared to the basic mods. It’s going to be quite a feat of space management once finished.
Everyone else’s mod I’ve pretty much gotten done the day I received their stick and then shipped out the next day.
That’s the same style SF2 CE art I was looking to use on my MAS stick. But I could never find a good quality source…
Nice work there Gum!
Order received. Will be testing tonight. Thank You sir.
not the droid.
did you get that thing I sent you?
I thought I would never get it, but alas I did.
