Dual Strike PCB now with EX Strike PCB - http://www.arcadeforge.de

bencao74 · June 25, 2010, 1:34am

That EEPROM Programming will be more cool than this stuff, I promise

Finally I`ve got my PCB Dual Strike v2 and assembled them with parts. And what happiness after first testing: They do their job !

New Features :

Symetrical Design
4 Mounting holes
4 GND Terminals
SMD parts for faster assembly
All pins on screw terminals
USB datalines on screw terminals
-and more…

Here’re some pics.

http://4.bp.blogspot.com/_YLXgzxS8cEc/TCPKZH9KI7I/AAAAAAAABv4/K8iazvhs5Yk/s320/IMG_0399.JPG

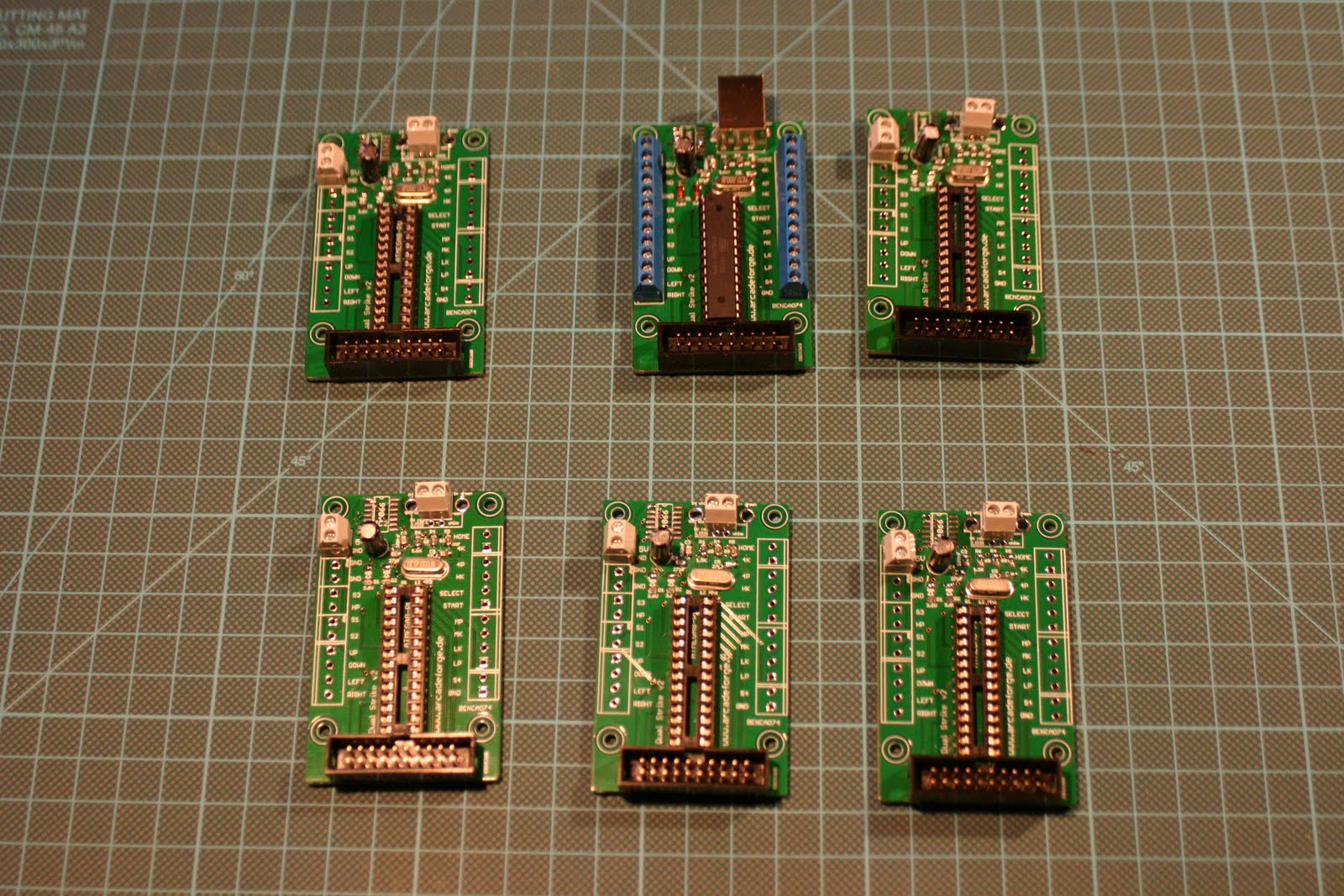

6 pcs Dual Strike. In the middle in upper row my testing board.

http://4.bp.blogspot.com/_YLXgzxS8cEc/TCPKW_NP6jI/AAAAAAAABvg/JPzHECUY5-k/s320/IMG_0402.JPG
Nice isn’t it?

http://3.bp.blogspot.com/_YLXgzxS8cEc/TCPKXoEzkYI/AAAAAAAABvo/NA148Fv76cI/s320/IMG_0401.JPG

But now to the often asked screw terminals for the USB datalines. Thus making mods with for example TEasy is even more easy.
Just use your stock TE usb cable.

http://2.bp.blogspot.com/_YLXgzxS8cEc/TCPKYQFHylI/AAAAAAAABvw/OePTXahQeGE/s320/IMG_0400.JPG

ah, and here`s the FW Link 1.7.1

animaX · June 25, 2010, 5:40pm

Great stuff bencao! Looking forward to release date

bencao74 · June 27, 2010, 4:17pm

jo, next week the missing parts will arrive. Then release is started!

Bye,

Jochen

Upas · June 27, 2010, 7:17pm

I got a chance to use one of Gummowned’s Dual Strike SMD boards on Wednesday, and I’m definitely a fan.
It has a much smaller footprint than the ChImp, and has almost every feature it does (minus autodetect).

The best part about it is he put the holes in the order they are on the TE, so unlike with the ChImp, I don’t have to check which 1-11 or A-H i have to solder something to, I can just solder down the line.

Also bencao74, how do I enable trigger inversion? I know I have to solder to the inversion spots, but I think I have to set it up in config mode and I don’t know how.

bencao74 · June 28, 2010, 5:34pm

Hey

there is a readme in every release

Startup Behaviour

If a button or joystick direction is pressed, when the Dual Strike controller
is activated (if the machine it is plugged in is turned on or the controller gets
plugged into the machine), then special functions are activated:

If the Select button is pressed, then configuration mode is entered (see below).

[…]

Configuration Mode

In the configuration mode the behaviour of the Dual Strike can be changed,
see Startup Behaviour for how to enter it. Leave it by pressing Start.

[…]

Extra Pins Mode

Button: MP
Up = deactivated (precedence over Left and Right) [default]
Left = read joystick mode switch (precedence over Down)
S3 and S4 have to be connected to a triple switch
Right = emulate joystick mode switch for pass-through (precedence over Down)
S3 and S4 have to be connected to joystick mode pins on the
pass-through PCB
Down = inverted triggers for pass-through
S3 and S4 have to be connected to trigger pins with active high on the
pass-through PCB

Press

Select
MP
DOWN
Start

done…

Phreakazoid · June 28, 2010, 7:21pm

The new version is looking awesome, good stuff man :tup:

gahrling · June 28, 2010, 9:29pm

Lovely stuff.

:tup:

bencao74 · June 29, 2010, 7:47pm

Thanks guys!

Tested the rest of the stuff and its’ working!

Piggybacked a TE PCB via Dual Strike interface works.
Selecting USB lines via 4006 (integrated Imp functionality) works, too. So its available right now…

bencao74 · July 1, 2010, 3:59pm

Dual Strikes meets TEasy

Here`re some pics of my first modding of the sodlerless dual mod board TEasy together with Dual Strike.

Links to the TEasy Thread plus much more pics.

animaX · July 2, 2010, 1:49pm

Exactly how i plan to do mine. Beautiful!

KGBird · July 6, 2010, 9:34pm

Newbie needs help

Hello,

I just got a 360 TE stick and I’d like to do the dual strike mod so that I can use it on my PS3. I’ve been searching all over the place and I can’t seem to figure out where to purchase this board in the US. Would someone please point me in the right direction?

Thanks,

–Rick

jdm714 · July 6, 2010, 9:41pm

There is no US for Dual Strike.
Unless you want the SMD Dual Strike from Gummowned.

KGBird · July 6, 2010, 9:51pm

Ah, that explains it. Any reason not to get the SMD version? International shipping is always a pain.

Gummo · July 6, 2010, 10:02pm

the smd version doesnt have screw terminals and doesnt have the pinheader to easily connect to the teasy when that comes out. Although I do have plans to add screw terminals on the second version of the dual strike smd in the future.

But the #1 reason to use the SMD version is because it can practically fit ANYWHERE!!! Enabling the possibility to turn almost ANYTHING into a ps3 controller

KGBird · July 6, 2010, 10:16pm

Thanks Gummowned. I’m not afraid to solder so the screw terminals aren’t an issue. As long as the SMD version is compatible with the regular versions firmware that I should be good to go. Based on what I’ve read I think that all I’d need is this board and a DPDT switch to switch between consoles. Next question is where can I get it?

–Rick

jdm714 · July 6, 2010, 10:32pm

The Dual Strike already does Console Switching by holding down a Button.
So you don’t need DPDT Switch.

KGBird · July 6, 2010, 10:45pm

Awesome!

–Rick

Gummo · July 6, 2010, 11:24pm

So far the dual strike smd board is only obtainable through me.

bencao74 · July 6, 2010, 11:47pm

Currently 6? for international shipping to US. Shipping is then via airmail and is last about a week.

No, currently no US if shipping is in time Phreakazoid187 will have some at EVO. If you can solder the Dual Strike SMD Version is great.
B2B in US is welcome, anyway…

KGBird · July 7, 2010, 1:47am

Hi Bencao,

Thanks for posting. Awesome work on this project.

Shipping from Europe seems reasonable compared to my previous experience in international shipping with Play-Asia. It took 6 weeks to get a white dual shock 3 and that has soured me on international shipping.

I ordered the SMD version from Gummowned a couple of hours ago otherwise I would have ordered your board as a week seems reasonable.

–Rick
